Cody Company 651R6-12X6X7 Insulated Register Boot R8

Product Description

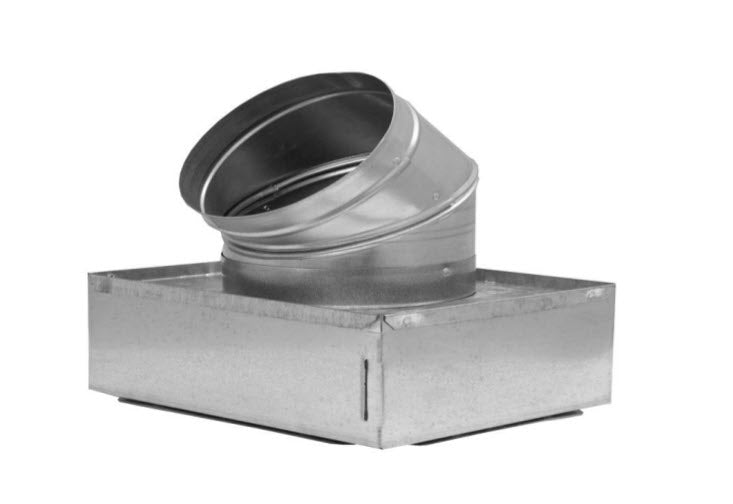

The CODY COMPANY 651R6-12X6X7 is an insulated register boot designed for use in forced-air HVAC duct systems. It features an R8 insulation liner and a 45-degree adjustable elbow configuration, allowing for flexible duct routing at the supply register termination point. The R8 liner provides a higher insulation value compared to standard R4 or R6 boots, helping reduce heat gain or loss at the boot transition. This component is typically installed by licensed HVAC technicians during new construction or duct renovation work.

This register boot is suited for residential and light commercial forced-air heating and cooling applications where insulated duct terminations are required. The adjustable 45-degree elbow allows the installer to direct airflow toward the register face while accommodating framing constraints in floor, wall, or ceiling installations. It is commonly used in conditioned crawlspace, attic duct runs, and other locations where energy code compliance demands higher insulation values at boot transitions.

Key Features

• R8 insulation liner for high thermal performance at the duct termination point
• 45-degree adjustable elbow allows flexible positioning to suit framing and register placement
• Insulated construction helps meet energy code requirements for duct system efficiency
• Designed for supply register boot applications in forced-air systems

Compatibility

Designed as an OEM-style insulated register boot for residential and light commercial forced-air HVAC duct systems requiring R8-rated boot insulation.

Installation Notes

Installation should be performed by a qualified HVAC technician. Power down the air handler or furnace before connecting or sealing ductwork at the boot. All duct joints and seams should be sealed with mastic or listed duct tape in accordance with local mechanical codes and ACCA Manual D guidelines. Verify that the boot size and elbow angle match the register opening and framing cavity dimensions before fastening.

Technical Specifications

• Insulation Rating: R8
• Elbow Angle: 45 degrees adjustable

Standard Information

• Brand: CODY COMPANY
• Manufacturer Part Number: 651R6-12X6X7
