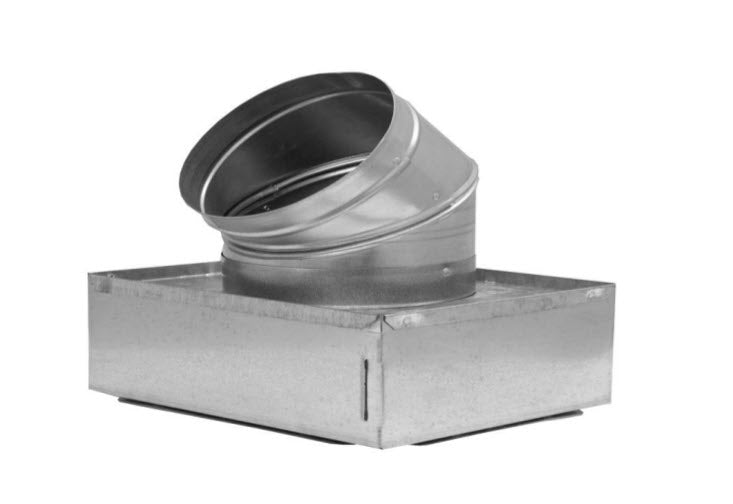

Cody Company 651R6-10X6X6 Insulated Register Boot R8

Product Description

The CODY COMPANY 651R6-10X6X6 is an insulated register boot designed for use in residential and light commercial HVAC duct systems. It features an R-8 insulation liner and a 45-degree adjustable elbow that allows the installer to direct airflow at the register location without fabricating a custom transition. The R-8 liner helps meet modern energy code requirements for insulated duct components. HVAC installers use this boot to terminate a trunk or branch duct run at a floor, wall, or ceiling register opening.

This register boot is suited for new construction and retrofit duct installations where an insulated transition is required between the branch duct and the register face. The 45-degree adjustable elbow makes it practical in tight framing cavities where a straight boot cannot be used. It is commonly installed by sheet metal mechanics and HVAC technicians working on forced-air heating and cooling systems in residential construction or light commercial buildouts.

Key Features

• R-8 insulation liner helps satisfy energy code requirements for insulated duct terminations
• 45-degree adjustable elbow allows flexible directional positioning at the register opening
• Insulated construction reduces surface condensation and heat loss at the boot
• Adjustable elbow simplifies installation in framing cavities with limited clearance
• Designed for use at floor, wall, or ceiling register locations in forced-air systems

Compatibility

Designed as an OEM-style insulated register boot for use in residential and light commercial forced-air duct systems requiring an R-8 insulated termination with a 45-degree elbow configuration.

Installation Notes

Installation should be performed by a qualified HVAC technician or sheet metal mechanic. Power down the air handler and lock out the system before working inside an active duct system. Secure all duct connections with approved fasteners and seal joints with listed mastic or UL 181-rated tape in accordance with local mechanical codes. Verify that the finished installation meets local energy code requirements for duct insulation values.

Technical Specifications

• Insulation Rating: R-8
• Elbow Angle: 45 degrees adjustable

Standard Information

• Brand: CODY COMPANY
• Manufacturer Part Number: 651R6-10X6X6
