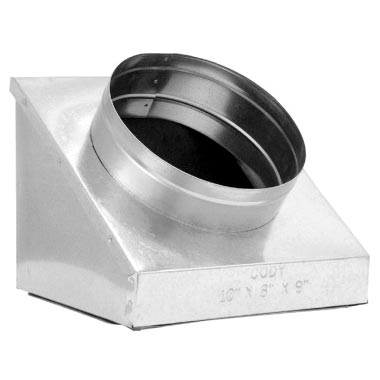

Cody Company 645R6485 Insulated Slant Top Register Boot

Product Description

The CODY COMPANY 645R6485 is an insulated slant top register boot designed for use in forced-air HVAC duct distribution systems. Register boots serve as the transition fitting between the branch duct and the floor, wall, or ceiling register opening. The slant top configuration allows the duct to connect at an angle, making it well suited for installations where straight vertical or horizontal access is restricted. Built-in insulation helps reduce heat loss and condensation along the boot. HVAC installers and sheet metal contractors are the primary trade professionals who work with this type of fitting.

This register boot is typically installed in residential and light commercial forced-air heating and cooling systems. The slant top profile is commonly used in floor applications where floor joists or framing limits a straight-drop duct run. It transitions the branch duct into a standard register opening, directing conditioned air into the living space. No specific compatible system models were provided in the product data, but the fitting is a standard component in conventional ducted HVAC installations.

Key Features

• Slant top design accommodates angled duct connections in framing-restricted installations
• Integrated insulation reduces heat transfer and limits condensation on the boot exterior
• Standard register boot form factor fits conventional floor or wall register openings
• Suitable for use in residential and light commercial forced-air duct systems

Compatibility

Designed as an OEM-style replacement or new-construction fitting for standard residential and light commercial forced-air ducted HVAC systems. No specific compatible model numbers or system families were provided in the product data.

Installation Notes

Installation is performed by licensed HVAC technicians or sheet metal contractors. The air handling system and associated electrical components should be powered down before connecting or sealing ductwork. Duct connections should be secured with sheet metal screws and sealed with mastic or UL 181-listed tape in accordance with local mechanical codes. Do not compress or puncture the insulation layer during installation, as this reduces thermal performance.

Technical Specifications

• Type: Insulated Slant Top Register Boot

Standard Information

• Brand: CODY COMPANY
• Manufacturer Part Number: 645R6485
