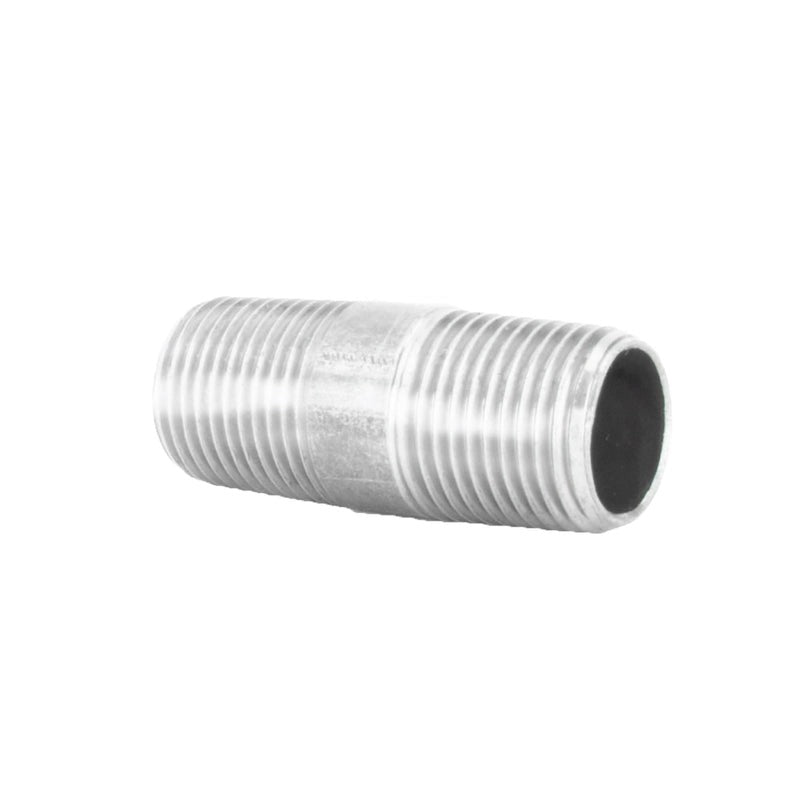

Coda Resources 507088 Galvanized Steel Nipple 3/4x2.5in

Product Description

The CODA RESOURCES 507088 is a schedule 40 galvanized steel close nipple measuring 3/4 inch nominal diameter by 2-1/2 inches thread-to-thread. The pipe is pre-cut and double-end threaded with standard IPS threads, making it a direct-fit component for threaded plumbing assemblies. Galvanization is applied via hot zinc bath for corrosion resistance. The nipple carries NSF 61 certification and is lead-free, meeting requirements for potable water service. Each piece is hydrostatically tested and manufactured in compliance with ASTM and ASME standards. Licensed plumbers and pipefitters use this fitting in residential and light commercial piping systems.

This nipple is suited for water supply, air distribution, and approved decorative pipe applications where schedule 40 galvanized steel is specified or required by code. The 3/4 inch nominal size is common in branch supply lines and riser connections. Standard IPS threading ensures compatibility with other threaded fittings, valves, and couplings of the same nominal size. It is appropriate for interior and exterior use where the installation environment is within the rated service conditions for galvanized steel pipe.

Key Features

• Schedule 40 wall thickness for full-pressure service in water and air applications
• Hot-dip galvanized finish provides zinc-based corrosion protection
• NSF 61 certified and lead-free for potable water compatibility
• Hydrostatically tested per ASTM and ASME requirements
• Standard IPS threads mate with all standard threaded fittings of the same nominal size
• Pre-cut and threaded from thread end to thread end — no field cutting required

Compatibility

Designed as a standard IPS-threaded schedule 40 galvanized steel nipple compatible with other threaded fittings, valves, and couplings of 3/4 inch nominal pipe size in water, air, and approved decorative pipe applications within code.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC requirements. Shut off and depressurize the supply line before removing or installing any threaded pipe component. Apply an appropriate pipe thread sealant or PTFE tape to the male threads before assembly. Do not over-tighten threaded connections; snug plus two turns with a pipe wrench is a common field practice, but follow the fitting manufacturer guidance and applicable code.

Technical Specifications

• Nominal Diameter: 3/4 inch
• Length (Thread to Thread): 2.5 inches
• Width: 1.05 inches
• Height: 1.05 inches
• Material: Galvanized Steel
• Schedule: 40
• Thread Type: Standard IPS
• Certification: NSF 61, Lead-Free, ASTM compliant, ASME compliant
• Galvanizing Method: Hot zinc bath

Standard Information

• Brand: CODA RESOURCES
• Manufacturer Part Number: 507088
