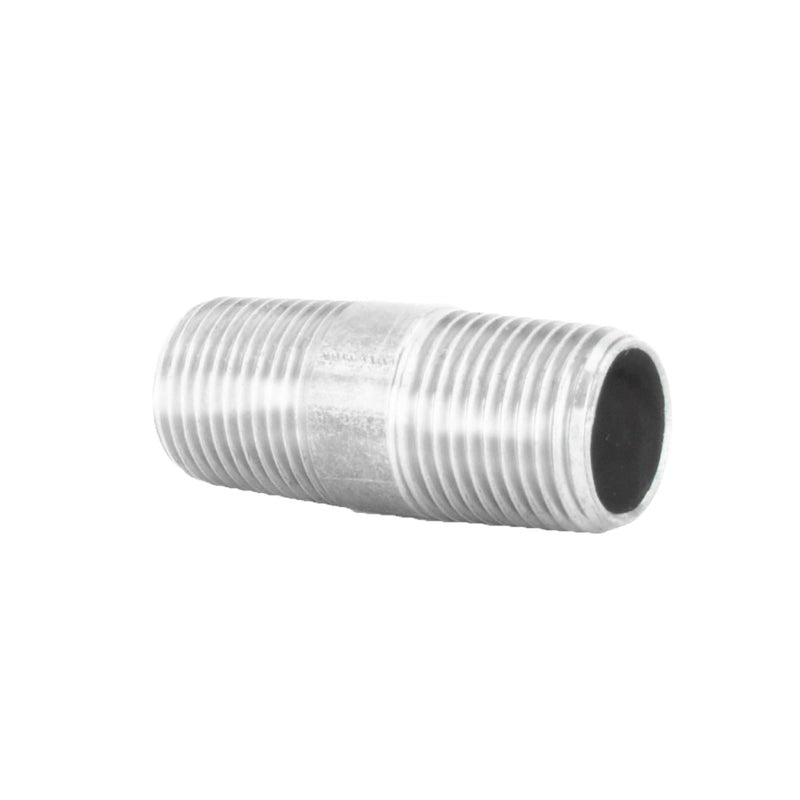

Coda Resources 507047 Galvanized Steel Nipple 1 in X 2 in

Product Description

The CODA RESOURCES 507047 is a Schedule 40 galvanized steel close nipple designed for use in threaded pipe systems carrying water, air, and other media within code-approved applications. The nipple measures 1 inch in diameter and 2 inches in length, thread to thread. It is fabricated from hot-dip galvanized steel, giving it corrosion resistance suited to both indoor and outdoor installations. Each piece is hydrostatically tested and manufactured in compliance with ASTM and ASME standards. The threading follows standard IPS (Iron Pipe Size) specification, allowing direct connection to fittings, valves, and other threaded components without modification. NSF 61 certification confirms it is suitable for potable water contact, and the product is lead-free.

This nipple is used in residential and light commercial plumbing, gas-adjacent piping decor assemblies, compressed air distribution, and water supply lines where a short threaded connector is required between two fittings. Its compact 2-inch length makes it appropriate for close-coupled connections. The industrial galvanized finish also makes it a common choice for exposed pipe decor and retail fixture builds. Licensed plumbers and pipefitters handle installation in code-governed water and air systems.

Key Features

• Schedule 40 wall thickness for standard-pressure service in water and air applications
• Hot-dip galvanized steel construction provides corrosion resistance
• NSF 61 certified and lead-free for potable water use
• Hydrostatically tested per ASTM and ASME compliance requirements
• Standard IPS threads connect to any compatible threaded fitting or valve
• Thread-to-thread measurement of 2 inches for accurate system layout

Compatibility

Designed for use with standard IPS-threaded fittings, couplings, valves, and flanges. Suitable for water, air, and decorative pipe applications that are within applicable plumbing codes.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter in jurisdictions where code requires it. Shut off and depressurize the supply line before disassembling any existing piping. Apply an approved thread sealant or PTFE tape to male threads before assembly to ensure a leak-free joint. Do not overtighten threaded connections, as this can crack fittings or damage threads.

Technical Specifications

• Diameter: 1 inch
• Length: 2 inches (thread to thread)
• Width: 1.31 inches
• Height: 1.31 inches
• Material: Galvanized Steel
• Schedule: Schedule 40
• Thread Type: Standard IPS
• Certifications: NSF 61, ASTM, ASME compliant
• Lead-Free: Yes

Standard Information

• Brand: CODA RESOURCES
• Manufacturer Part Number: 507047
