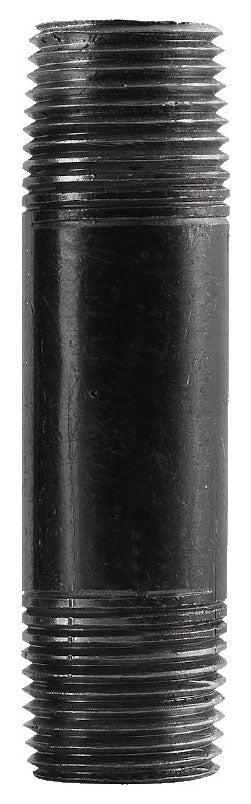

Coda Resources 506870 Black Steel Nipple 3/4 X 2 Inch Sch 40

Product Description

The CODA RESOURCES 506870 is a black steel close nipple fitting designed for threaded pipe systems in gas and air distribution applications. Built to Schedule 40 wall thickness and conforming to ASTM A733, this nipple measures 3/4 inch in diameter with a 2-inch overall length and features male NPT threads on both ends. It carries a pressure rating of 217 psi at 400 degrees F, making it suitable for demanding residential and light commercial service conditions. Plumbers and gas fitters rely on this type of fitting for connecting pipe runs, extending lines, or fitting valves and appliances into threaded black iron systems.

This nipple is intended for residential and light commercial gas piping systems as well as compressed air lines where black steel threaded fittings are required. The black finish is standard for gas service in indoor applications. It is sold individually and packaged in bulk, making it appropriate for both single-repair jobs and multi-unit installation projects where multiple nipples of this size are needed.

Key Features

• Schedule 40 wall thickness for standard service gas and air systems
• ASTM A733 material specification ensures consistent dimensional and strength standards
• 217 psi pressure rating at 400 degrees F for high-temperature service conditions
• Male threaded x male threaded end connections for direct pipe-to-fitting assembly
• Black steel finish suitable for interior gas piping per standard practice
• 3/4 inch nominal size with 1.05-inch outer diameter and 2-inch overall length

Compatibility

Rated for residential and light commercial gas and air piping applications. Designed as a standard Schedule 40 black steel threaded nipple for use in systems requiring ASTM A733-compliant fittings.

Installation Notes

Installation should be performed by a licensed plumber or gas fitter in accordance with applicable local codes, IFGC, and IPC requirements. Shut off the gas supply or depressurize the air system completely before making any threaded connections. Apply an approved pipe thread sealant or PTFE tape rated for gas service to all male threads before assembly. Avoid overtightening, which can crack fittings or damage threads.

Technical Specifications

• Nominal Size: 3/4 inch
• Overall Length: 2 inches
• Outer Diameter: 1.05 inches
• Schedule: 40
• End Connection: Male Threaded x Male Threaded
• Pressure Rating: 217 psi at 400 degrees F
• Material: Steel
• Material Specification: ASTM A733
• Finish: Black
• Application: Residential, Light Commercial Gas and Air
• Packaging: Bulk, 1 per pack

Standard Information

• Brand: CODA RESOURCES
• Manufacturer Part Number: 506870
