Coda Resources 506830 Black Steel Nipple 1 in Sch 40

Product Description

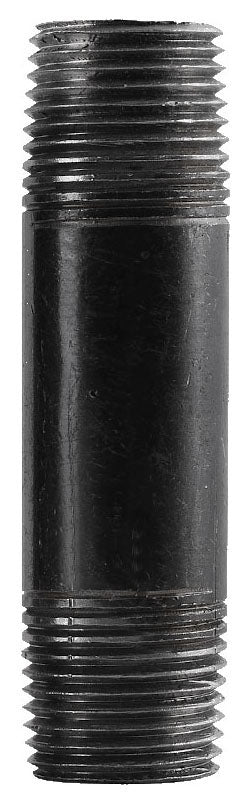

The CODA RESOURCES 506830 is a black steel close nipple fitting designed for use in gas distribution and compressed air piping systems. This Schedule 40 nipple measures 1 inch nominal diameter with an overall length of 2.5 inches and features male threaded connections on both ends. Manufactured to ASTM A733 standards, it carries a pressure rating of 226 psi at 400 degrees F, making it a reliable choice for moderate-pressure residential and light commercial installations. Licensed plumbers and pipefitters install this fitting as part of threaded black iron piping assemblies.

This nipple is suited for residential and light commercial gas piping and air distribution applications. The black steel construction and threaded end connections make it compatible with standard Schedule 40 black iron pipe systems commonly found in natural gas and propane supply lines as well as compressed air lines in shop and commercial environments. The fitting ships in bulk packaging at one piece per pack, consistent with jobsite and shop stocking needs.

Key Features

• ASTM A733 compliant black steel construction for gas and air service
• Schedule 40 wall thickness for moderate-pressure piping systems
• 226 psi pressure rating at 400 degrees F
• Male threaded x male threaded end connections for standard black iron assembly
• 1 inch nominal diameter with 1.315 inch outer diameter
• Overall length of 2.5 inches for short-run connections and offsets

Compatibility

Designed for use in residential and light commercial gas and air piping systems using Schedule 40 black iron threaded pipe and fittings conforming to ASTM A733 material specifications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes and IFGC requirements for gas piping systems. Shut off the gas supply and depressurize the line before making any threaded connections. Apply an approved thread sealant or pipe compound rated for gas service to the male threads before assembly. Do not overtighten threaded connections, as this can damage the threads or fittings.

Technical Specifications

• Nominal Size: 1 inch
• Overall Length: 2.5 inches
• Outer Diameter: 1.315 inches
• Schedule: 40
• End Connection: Male Threaded x Male Threaded
• Pressure Rating: 226 psi at 400 degrees F
• Material: Steel
• Material Specification: ASTM A733
• Finish: Black
• Application: Residential, Light Commercial Gas and Air
• Packaging: Bulk, 1 per Pack

Standard Information

• Brand: CODA RESOURCES
• Manufacturer Part Number: 506830
