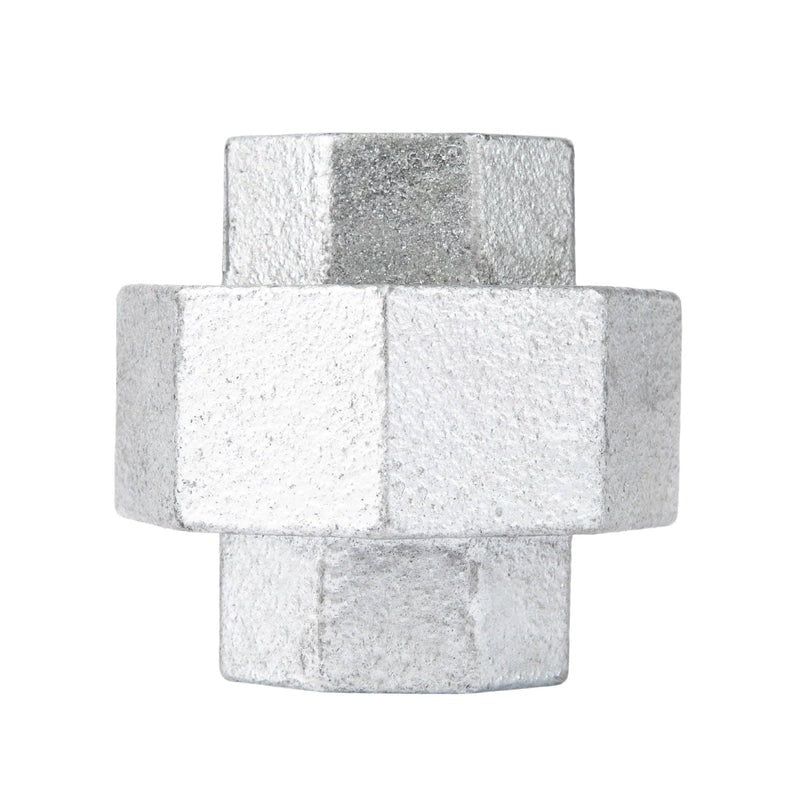

Coda Resources 506739 Galvanized Iron Union 1-1/2 in

Product Description

The CODA RESOURCES 506739 is a 1-1/2 inch galvanized malleable iron union designed for threaded pipe assemblies. Union fittings allow a pipe run to be broken and reconnected without rotating the adjacent pipe sections, making them essential wherever future disassembly or service access is required. This fitting is constructed from malleable iron with a galvanized finish, giving it a silver tone and surface protection suited for both functional piping and decorative pipe fabrication. Licensed plumbers and experienced pipe fabricators are the primary installers of this type of fitting.

This union is sized for 1-1/2 inch nominal pipe and is suited for water service and decorative pipe installations. Its malleable iron construction handles the mechanical demands of threaded assembly without cracking under torque. The galvanized coating resists corrosion and provides a clean, polished appearance that is consistent across standard galvanized pipe and fittings. Typical applications include water supply lines and custom pipe furniture or decorative pipe framework where a closed loop configuration is required.

Key Features

• 1-1/2 inch nominal diameter for compatibility with standard threaded pipe
• Galvanized malleable iron construction for durability and corrosion resistance
• Union design allows pipe runs to be disconnected and reconnected without unthreading the entire assembly
• Silver galvanized finish suits both functional and decorative installations
• Rated for water and decorative use applications

Compatibility

Designed as a standard threaded union replacement or addition for 1-1/2 inch nominal galvanized or black iron pipe systems used in water service or decorative pipe applications.

Installation Notes

Installation of threaded pipe unions should be performed by a licensed plumber when used in pressurized water service, in accordance with applicable local plumbing codes and IPC guidelines. Shut off the water supply and depressurize the line before removing or installing any fitting. Apply appropriate thread sealant or PTFE tape to all male threads before assembly. Do not overtighten, as malleable iron threads can be damaged by excessive torque.

Technical Specifications

• Nominal Diameter: 1-1/2 inches
• Width: 3.4 inches
• Height: 2.6 inches
• Material: Galvanized Malleable Iron
• Listed Uses: Water, Decor

Standard Information

• Brand: CODA RESOURCES
• Manufacturer Part Number: 506739
