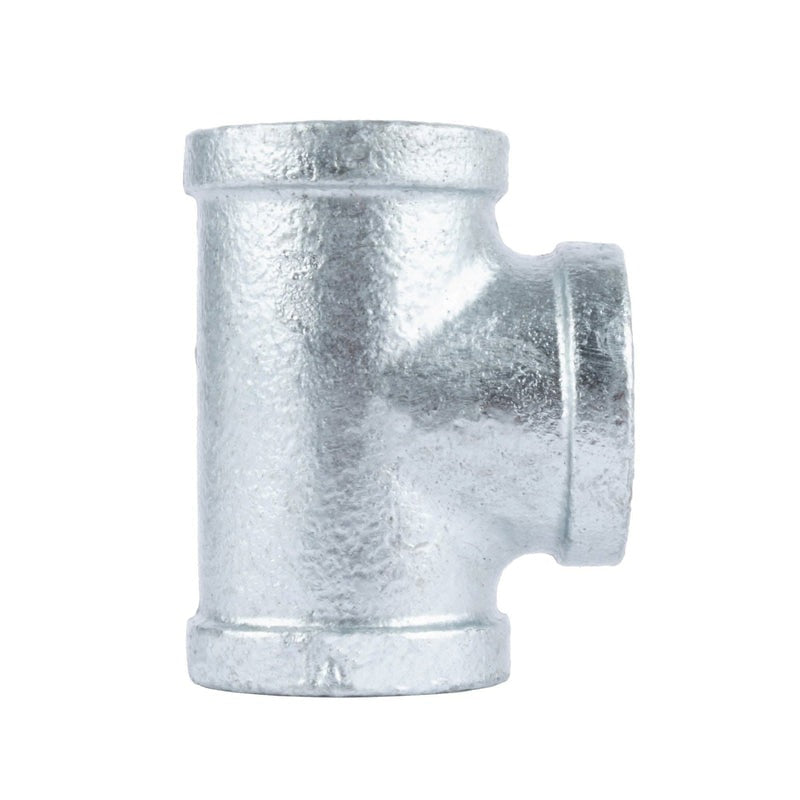

Coda Resources 506732 Galvanized Iron Tee Fitting 2 Inch

Product Description

The CODA RESOURCES 506732 is a 2-inch galvanized malleable iron tee fitting designed for three-way pipe connections in plumbing, light water service, and structural pipe fabrication. The tee configuration accepts pipe at three ports, distributing flow or providing a rigid branch connection for structural builds. Malleable iron construction gives the fitting the ductility needed to handle mechanical stress without cracking. The galvanized finish provides corrosion resistance and a silver, shiny exterior. Plumbers, pipefitters, and experienced fabricators working with black or galvanized pipe systems will find this fitting meets standard installation demands.

This fitting is suited for residential and light commercial applications involving 2-inch galvanized or compatible iron pipe. Common install scenarios include water distribution branch lines, pipe furniture fabrication, and structural frameworks such as workbenches, shelving units, and similar assemblies. The three-port layout allows one inlet and two outlets, or any combination depending on the system layout. The fitting measures 4.54 inches wide by 3.79 inches tall, keeping it compact for tight runs.

Key Features

• Malleable iron construction resists cracking and handles mechanical loading better than standard cast iron
• Galvanized finish provides corrosion resistance for water service and exposed installations
• 2-inch diameter fits standard 2-inch iron pipe schedules
• Three-port tee configuration supports branch connections in both plumbing and structural pipe builds
• Silver shiny finish suits both utility and decorative fabrication applications

Compatibility

Designed as a standard tee fitting for 2-inch galvanized or black malleable iron pipe systems used in light water service and structural pipe fabrication. Also listed under product ID FMGT-2.

Installation Notes

This fitting is typically installed by licensed plumbers or experienced pipefitters working with threaded iron pipe systems. Shut off and depressurize the water supply before making any connections. Use appropriate pipe thread sealant or PTFE tape on all threaded joints per local plumbing code requirements. Do not overtighten threaded connections, as malleable iron can be damaged by excessive torque beyond hand-tight plus wrench turns standard to the pipe size.

Technical Specifications

• Diameter: 2 inches
• Width: 4.54 inches
• Height: 3.79 inches
• Material: Galvanized Malleable Iron
• Listed Uses: Water, Decor

Standard Information

• Brand: CODA RESOURCES
• Manufacturer Part Number: 506732
