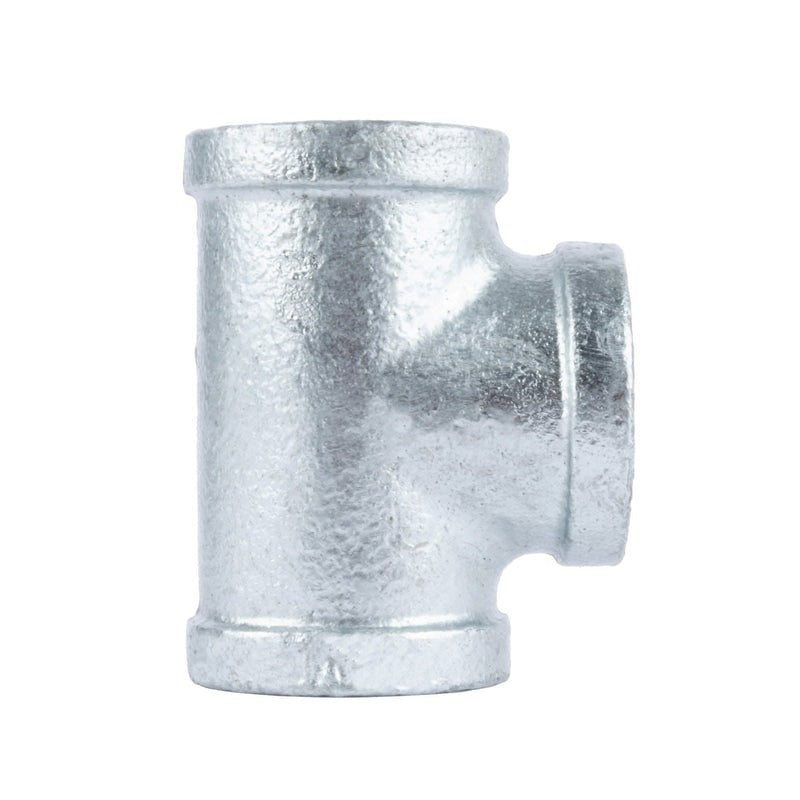

Coda Resources 506728 Galvanized Iron Tee 1-1/4 in

Product Description

The CODA RESOURCES 506728 is a 1-1/4 inch galvanized malleable iron tee fitting designed for three-way pipe connections in light plumbing and structural pipe fabrication applications. The T-shaped body provides one inlet and two outlets, allowing branch connections off a main pipe run. Constructed from malleable iron with a galvanized finish, this fitting delivers the rigidity and corrosion resistance expected from industrial-grade threaded pipe hardware. The silver galvanized coating provides a clean, finished appearance suitable for exposed installations. Licensed plumbers and experienced pipe fabricators are the typical installers of threaded iron fittings of this type.

This tee fitting is suited for residential and light commercial applications where 1-1/4 inch threaded pipe is used. Common use cases include potable water supply lines and decorative pipe assembly projects such as shelving, furniture frames, and industrial-style fixtures. The three-port design supports branch runs in any direction perpendicular to the main pipe axis. The fitting measures 3.5 inches wide by 2.8 inches tall and is compatible with standard NPT threaded pipe in the 1-1/4 inch nominal size.

Key Features

• Three-way T-shaped configuration for branch pipe connections
• Galvanized malleable iron construction for strength and corrosion resistance
• 1-1/4 inch nominal diameter with standard NPT thread compatibility
• Silver galvanized finish suitable for exposed or decorative installations
• Rated for water supply and decorative pipe applications

Compatibility

Designed for use with 1-1/4 inch nominal NPT threaded pipe in water supply and decorative pipe fabrication systems. Also referenced under product ID FMGT-114.

Installation Notes

Installation should be performed by a licensed plumber when used in potable water supply systems, in accordance with applicable local plumbing codes and IPC guidelines. Shut off the water supply and depressurize the line before making or breaking any threaded connections. Apply an appropriate thread sealant or PTFE tape to male threads before assembly. Do not over-tighten threaded fittings, as malleable iron threads can be damaged by excessive torque.

Technical Specifications

• Nominal Diameter: 1-1/4 inches
• Width: 3.5 inches
• Height: 2.8 inches
• Material: Galvanized Malleable Iron
• Finish: Galvanized (Silver)
• Rated Uses: Water, Decorative

Standard Information

• Brand: CODA RESOURCES
• Manufacturer Part Number: 506728
