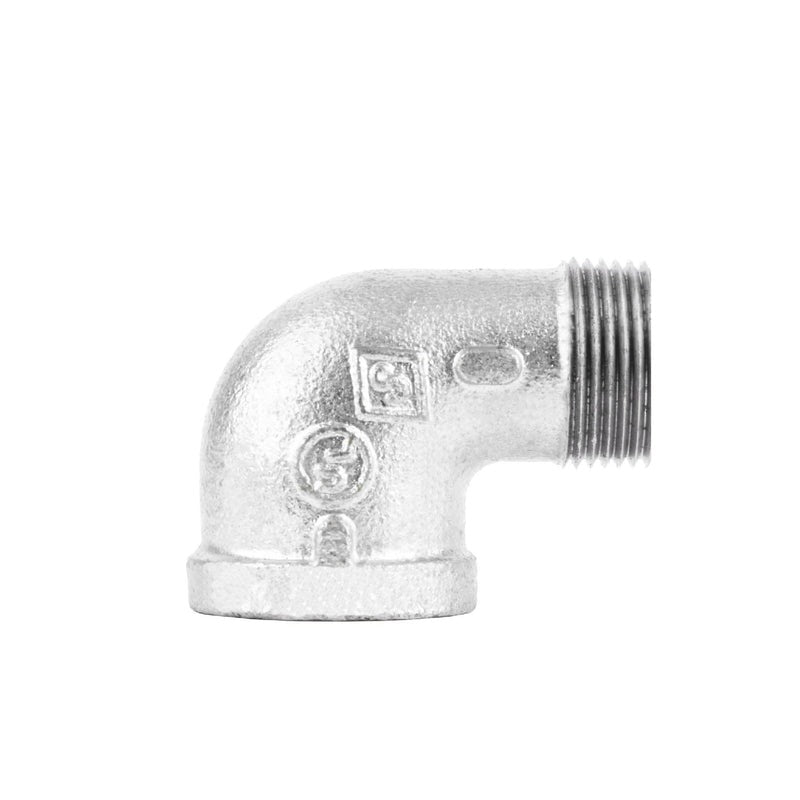

Coda Resources 506719 3/4 in Galvanized 90 Degree Street Elbow

Product Description

The CODA RESOURCES 506719 is a 3/4-inch galvanized malleable iron 90-degree street elbow designed for use in pipe assemblies where a male-to-female directional change is required in a single fitting. The street configuration eliminates the need for an additional nipple between fittings, keeping assemblies compact. Constructed from galvanized malleable iron, this elbow delivers corrosion resistance and the mechanical strength needed for both functional piping and structural pipe fabrication applications. Licensed plumbers and pipefitters install this type of fitting in water supply lines and similar low-pressure systems.

This fitting is suited for residential and light commercial applications involving water distribution lines as well as decorative pipe fabrication projects such as furniture framing, shelving, and custom pipe structures. The galvanized finish provides a silver, metallic appearance that is consistent across fittings, making it a practical choice where exposed pipe aesthetics matter. It accepts standard 3/4-inch threaded pipe on both the male and female ends.

Key Features

• 90-degree street elbow configuration with male and female threaded ends in a single fitting
• Galvanized malleable iron construction for corrosion resistance and mechanical durability
• 3/4-inch diameter fits standard threaded pipe of the same size
• Compact profile: 2.56 inches wide, 1.79 inches tall, 1.46 inches in length
• Suitable for water supply and decorative pipe fabrication uses

Compatibility

Designed for use with standard 3/4-inch threaded iron pipe in water supply and decorative pipe assembly applications. Also referenced under product ID FMGSE90-34.

Installation Notes

Installation should be performed by a licensed plumber when used in pressurized water supply systems, in accordance with applicable local plumbing codes and IPC guidelines. Shut off the water supply and relieve system pressure before working on any threaded pipe connection. Apply an appropriate thread sealant or PTFE tape to male threads before assembly. Do not overtighten, as malleable iron fittings can crack under excessive torque.

Technical Specifications

• Diameter: 3/4 inches
• Width: 2.56 inches
• Height: 1.79 inches
• Length: 1.46 inches
• Material: Galvanized Malleable Iron
• Uses: Water, Decor

Standard Information

• Brand: CODA RESOURCES
• Manufacturer Part Number: 506719
