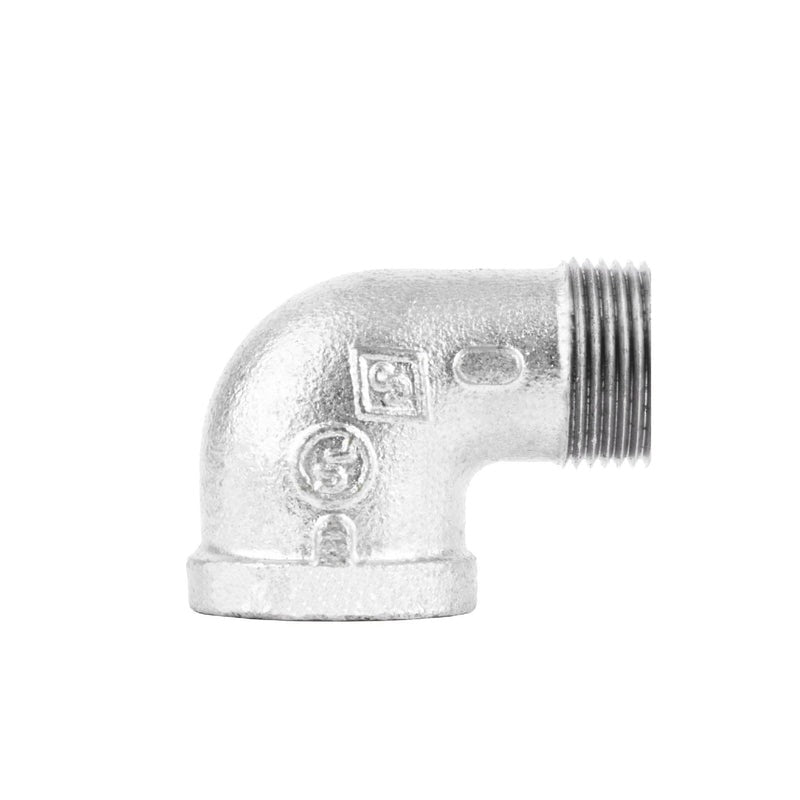

Coda Resources 506716 2 in Galvanized Iron 90 Degree Street Elbow

Product Description

The CODA RESOURCES 506716 is a 2-inch galvanized malleable iron 90-degree street elbow used to make directional changes in threaded pipe assemblies. One end is male-threaded and the other is female-threaded, allowing the fitting to connect directly to another fitting without a short nipple between them. The galvanized finish provides a silver, corrosion-resistant exterior suited for both functional piping and decorative pipe fabrication. This fitting is manufactured from malleable iron, which tolerates the mechanical stress of assembly and disassembly better than standard cast iron. Plumbers and pipefitters install this type of fitting in low-pressure water lines, drainage reroutes, and structural pipe projects.

This street elbow is rated for water service and is a standard choice in residential and light commercial plumbing applications where a 90-degree directional change is required in a 2-inch threaded line. Its malleable iron construction and galvanized coating also make it a fit for exposed decorative pipe installations such as shelving frameworks, furniture bases, and industrial-style fixtures. The fitting measures 4.7 inches in width and 3.4 inches in height, making it a compact solution for tight routing situations. It is also identified by the product ID FMGSE90-2.

Key Features

• 90-degree street configuration with one male and one female threaded end for direct fitting-to-fitting connections
• 2-inch nominal pipe diameter
• Galvanized malleable iron construction for corrosion resistance and mechanical durability
• Rated for water service applications
• Compact profile at 4.7 inches wide by 3.4 inches tall
• Silver finish suitable for exposed decorative pipe assemblies

Compatibility

Designed as a standard 2-inch NPT threaded street elbow compatible with 2-inch malleable iron and steel threaded pipe systems rated for water service.

Installation Notes

Installation is performed by licensed plumbers or experienced pipefitters working on threaded pipe systems. Shut off the water supply and relieve line pressure before disassembling or modifying any existing piping. Apply an appropriate thread sealant or PTFE tape to male threads before assembly. Follow all applicable local plumbing codes and IPC guidelines for fittings used in pressurized water lines.

Technical Specifications

• Nominal Diameter: 2 inches
• Width: 4.7 inches
• Height: 3.4 inches
• Material: Galvanized Malleable Iron
• Finish: Galvanized (Silver)
• Fitting Angle: 90 Degrees
• Fitting Type: Street Elbow (Male x Female Threaded)
• Rated Uses: Water, Decorative
• Alternate Product ID: FMGSE90-2

Standard Information

• Brand: CODA RESOURCES
• Manufacturer Part Number: 506716
