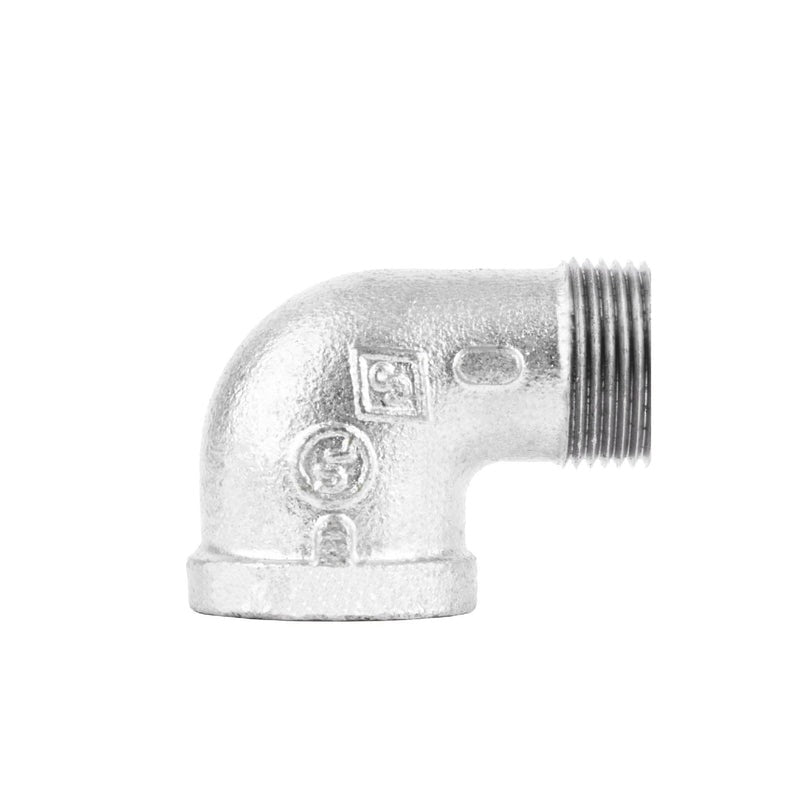

Coda Resources 506713 1/2 in Galvanized Iron 90 Degree Street Elbow

Product Description

The CODA RESOURCES 506713 is a 1/2 inch 90 degree street elbow made from galvanized malleable iron. Street elbows have a male end on one side and a female threaded end on the other, allowing a direct connection without a coupling. This fitting measures 2.24 inches wide, 1.46 inches high, and 1.2 inches long. The galvanized finish provides corrosion resistance and a clean, metallic appearance. Plumbers and pipe fitters install this type of fitting in water supply lines and low-pressure piping systems. It is also commonly used in decorative pipe furniture and industrial-style interior projects.

This street elbow is suited for residential and light commercial applications involving 1/2 inch threaded pipe. Common uses include water distribution lines and structural pipe assemblies for furniture, shelving, and custom fabrication. The 90 degree turn makes it a standard component wherever a right-angle direction change is needed in a threaded piping run.

Key Features

• 90 degree street elbow configuration with male and female threaded ends
• 1/2 inch diameter fits standard NPT threaded pipe
• Galvanized malleable iron construction for strength and corrosion resistance
• Compact profile at 2.24 inches wide by 1.46 inches high by 1.2 inches long
• Suitable for water supply and decorative piping applications

Compatibility

Designed as an OEM-style threaded fitting for use with 1/2 inch NPT standard pipe in water supply and decorative piping systems.

Installation Notes

Installation is performed by a licensed plumber or qualified pipefitter. Shut off water supply and depressurize the line before disassembling any threaded connections. Apply appropriate thread sealant or PTFE tape to all male threads before assembly. Follow local plumbing codes, including IPC guidelines, for fitting selection and installation requirements.

Technical Specifications

• Diameter: 1/2 inch
• Width: 2.24 inches
• Height: 1.46 inches
• Length: 1.2 inches
• Material: Galvanized Malleable Iron
• Fitting Angle: 90 Degrees
• Fitting Type: Street Elbow
• Uses: Water, Decor

Standard Information

• Brand: CODA RESOURCES
• Manufacturer Part Number: 506713
