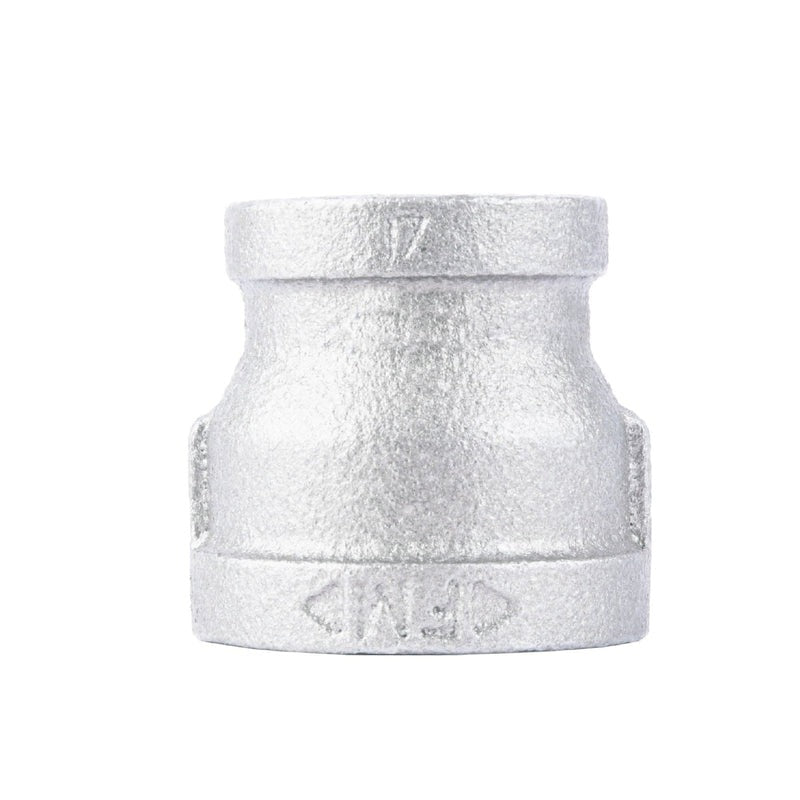

Coda Resources 506658 Reducing Coupling 3/4 X 1/2 In.

Product Description

The CODA RESOURCES 506658 is a galvanized malleable iron reducing coupling designed to join two pipes of different diameters. The fitting transitions from a 3/4-inch pipe thread on one end to a 1/2-inch pipe thread on the other, creating a secure mechanical connection. Measuring 1.49 inches in width and length and 1.45 inches in height, this compact coupling suits both functional plumbing runs and pipe-based structural assemblies. It is installed by licensed plumbers in residential and light commercial applications and by tradespeople building pipe framework structures.

This reducing coupling is appropriate for water service lines and general-purpose pipe assemblies requiring a diameter transition. Its galvanized finish provides corrosion resistance for both indoor and outdoor environments. The malleable iron construction handles standard pipe thread engagement without cracking or deforming under torque. Typical uses include water distribution lines and pipe furniture frameworks such as shelving supports, clothing racks, and similar structural builds.

Key Features

• Transitions 3/4-inch pipe to 1/2-inch pipe in a single fitting
• Galvanized malleable iron construction resists corrosion and handles standard thread torque
• Compact profile: 1.49 inches wide by 1.49 inches long by 1.45 inches tall
• Rated for water service and general-purpose pipe assembly applications
• Threaded on both ends for standard NPT pipe engagement

Compatibility

Designed for use with standard 3/4-inch and 1/2-inch NPT-threaded iron or steel pipe in residential water distribution and pipe framework applications. Also listed under product ID FMGRC-3412.

Installation Notes

Installation is performed by a licensed plumber in potable water or general pipe systems. Shut off the water supply and depressurize the line before removing or installing any fitting. Apply thread sealant tape or pipe compound to the male threads before engagement. Hand-tighten first, then use a pipe wrench to complete the joint — do not over-torque malleable iron fittings.

Technical Specifications

• Inlet Diameter: 3/4 inches
• Outlet Diameter: 1/2 inches
• Width: 1.49 inches
• Length: 1.49 inches
• Height: 1.45 inches
• Material: Galvanized Malleable Iron
• Approved Uses: Water, Decor

Standard Information

• Brand: CODA RESOURCES
• Manufacturer Part Number: 506658
