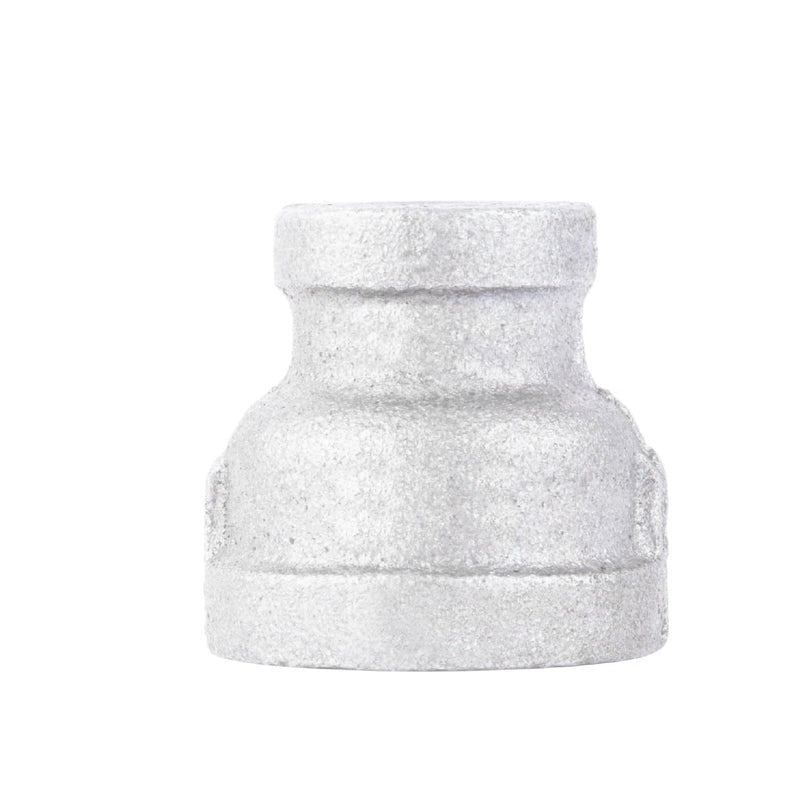

Coda Resources 506650 Reducing Coupling 2 X 1-1/2 Inch

Product Description

The CODA RESOURCES 506650 is a galvanized malleable iron reducing coupling designed to join two pipes of different diameters in a single threaded connection. At 2 inches on the larger end and 1-1/2 inches on the smaller end, this cylindrical fitting is a standard choice for water supply piping and light-duty structural pipe assemblies. The galvanized finish provides corrosion resistance and a clean silver appearance. Malleable iron construction gives the fitting the ductility needed to handle mechanical stress without cracking, making it suitable for both functional plumbing runs and pipe-frame fabrication work installed by plumbers and pipefitters.

This reducing coupling is appropriate for residential and light commercial water piping applications where a threaded transition between a 2-inch and 1-1/2-inch pipe run is required. It is also commonly used in decorative and structural pipe assemblies such as shelving frameworks, pipe furniture, and custom fabrication projects. The fitting accepts standard NPT-threaded pipe on both ends, making it compatible with typical black and galvanized pipe stock available from plumbing supply distributors.

Key Features

• Galvanized malleable iron construction for corrosion resistance and mechanical durability
• 2-inch inlet to 1-1/2-inch outlet reducing configuration for diameter transitions
• Cylindrical body measures approximately 2.9 inches wide by 2.8 inches tall
• Suitable for water piping and decorative pipe assembly applications
• Shiny galvanized finish for a clean, finished appearance in exposed installations

Compatibility

Designed as a standard NPT-threaded reducing coupling for use with 2-inch and 1-1/2-inch galvanized or black malleable iron pipe in water supply and pipe fabrication systems. Also identified by product ID FMGRC-2112.

Installation Notes

Installation should be performed by a licensed plumber when used in pressurized water supply systems, in accordance with applicable IPC or local plumbing code requirements. Shut off and depressurize the water supply before disassembling or assembling any threaded fittings. Apply an approved thread sealant or PTFE tape to all NPT threads before makeup. Do not over-tighten threaded connections, as malleable iron fittings can crack if excessive torque is applied beyond hand-tight plus standard wrench turns per fitting manufacturer guidance.

Technical Specifications

• Material: Galvanized Malleable Iron
• Inlet Diameter: 2 inches
• Outlet Diameter: 1-1/2 inches
• Width: 2.9 inches
• Height: 2.8 inches
• Applications: Water, Decor

Standard Information

• Brand: CODA RESOURCES
• Manufacturer Part Number: 506650
