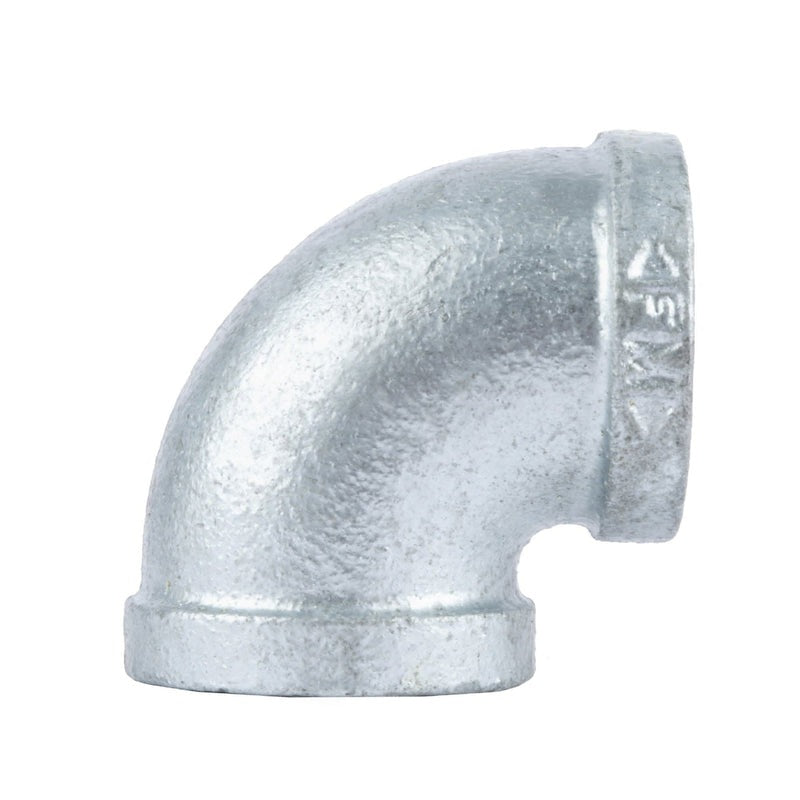

Coda Resources 506392 3/4 in Galvanized Iron 90 Degree Elbow

Product Description

The CODA RESOURCES 506392 is a 3/4-inch galvanized malleable iron 90-degree elbow fitting designed for threaded pipe assemblies. It redirects pipe runs at a right angle and is suited for water service lines, light-duty plumbing, and structural pipe fabrication projects. The fitting is made from malleable iron with a galvanized finish, giving it corrosion resistance and a silver-toned appearance. At roughly 2.01 inches wide, 2.02 inches tall, and 1.47 inches in length, it is a compact, standard-profile elbow. Licensed plumbers and experienced tradespeople install this fitting in applications ranging from potable water distribution to decorative pipe assemblies.

This elbow is used in both residential and light commercial settings. Common applications include water supply piping, threaded iron pipe systems, and pipe furniture or fixture fabrication where a 90-degree directional change is needed. The galvanized coating makes it appropriate for exposed or semi-exposed installations where moisture is a factor. It is also used in decorative pipe builds such as shelving frameworks and custom structural assemblies where a consistent industrial aesthetic is desired.

Key Features

• Galvanized malleable iron construction provides corrosion resistance and long service life
• 3/4-inch diameter threaded connection for standard iron pipe fittings
• 90-degree elbow profile for right-angle directional changes in pipe runs
• Compact dimensions: 2.01 inches wide, 2.02 inches tall, 1.47 inches in length
• Suitable for water service and decorative pipe fabrication applications

Compatibility

Designed for use with standard 3/4-inch threaded iron pipe in water service and decorative pipe assembly applications. Also referenced under product ID FMGE90-34.

Installation Notes

This fitting is installed by licensed plumbers or qualified pipe fitters working with threaded iron pipe systems. Shut off the water supply and relieve line pressure before beginning any fitting replacement or new installation. Apply thread sealant tape or pipe compound to all male threads before assembly, and tighten connections to a snug fit using pipe wrenches. Follow applicable local plumbing codes and IPC guidelines for water service piping.

Technical Specifications

• Diameter: 3/4 inch
• Width: 2.01 inches
• Height: 2.02 inches
• Length: 1.47 inches
• Material: Galvanized Malleable Iron
• Angle: 90 degrees
• Uses: Water, Decor

Standard Information

• Brand: CODA RESOURCES
• Manufacturer Part Number: 506392
