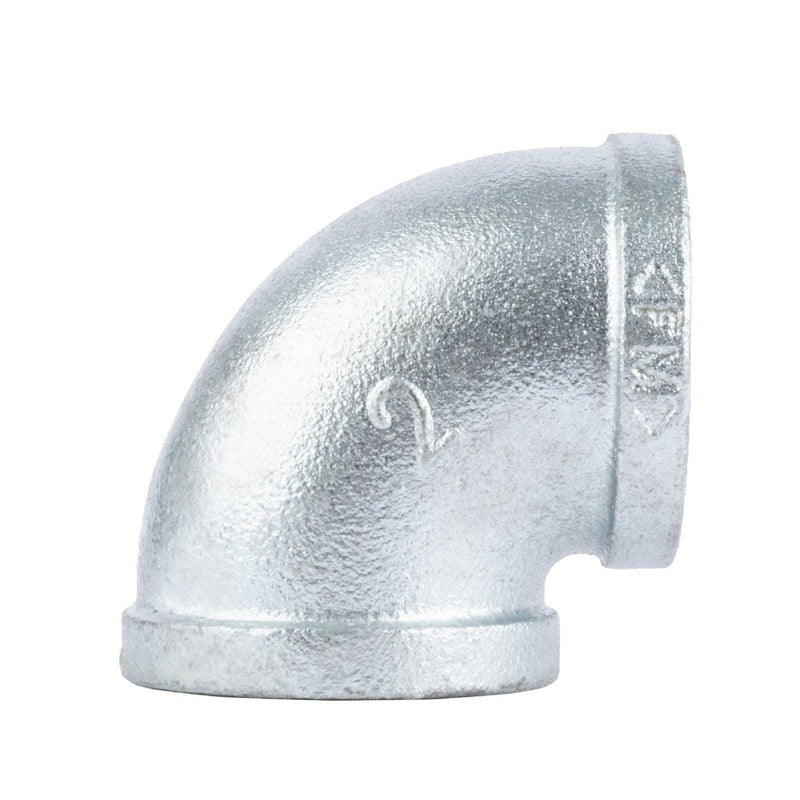

Coda Resources 506389 Galvanized Iron 90 Degree Elbow 2 in

Product Description

The CODA RESOURCES 506389 is a 2-inch galvanized malleable iron 90-degree elbow designed for use in pipe assemblies requiring a right-angle directional change. Constructed from industrial-grade malleable iron with a galvanized finish, this fitting delivers corrosion resistance and mechanical durability in both functional and decorative piping applications. The silver galvanized surface provides a clean, polished appearance suitable for exposed installations. At 3.7 inches wide and 3.8 inches tall, the fitting is sized for standard 2-inch pipe connections and handles typical water service and light-duty piping work. Plumbers, pipefitters, and skilled tradespeople will find it straightforward to integrate into new or existing runs.

This elbow is suited for residential and light commercial piping installations where a 90-degree change of direction is required on a 2-inch line. Rated for water service, it is also widely used in structural pipe assemblies, custom pipe fabrication, and decorative industrial-style builds. The malleable iron construction tolerates the mechanical stress of tightening and assembly without cracking, making it appropriate for threaded pipe systems where fittings are torqued by hand and wrench during installation.

Key Features

• 2-inch diameter threaded connection for standard pipe sizing
• Galvanized malleable iron construction resists corrosion and mechanical wear
• 90-degree elbow geometry for right-angle directional changes in pipe runs
• Shiny silver galvanized finish suits both concealed and exposed installations
• Rated for water service and decorative piping applications
• Compact form factor at 3.7 inches wide by 3.8 inches tall

Compatibility

Designed as a standard threaded replacement or new-installation fitting for 2-inch malleable iron pipe systems used in water service and structural pipe fabrication.

Installation Notes

Installation is performed by a licensed plumber or qualified pipefitter using standard pipe wrenches and thread sealant or PTFE tape on all threaded joints. Shut off the water supply and depressurize the line before removing any existing fittings. Verify local code compliance under the applicable plumbing code before installation in pressurized water service. Do not overtighten threaded connections, as malleable iron can crack if excessive force is applied.

Technical Specifications

• Diameter: 2 inches
• Width: 3.7 inches
• Height: 3.8 inches
• Material: Galvanized Malleable Iron
• Finish: Galvanized
• Angle: 90 degrees
• Rated Uses: Water, Decor

Standard Information

• Brand: CODA RESOURCES
• Manufacturer Part Number: 506389
