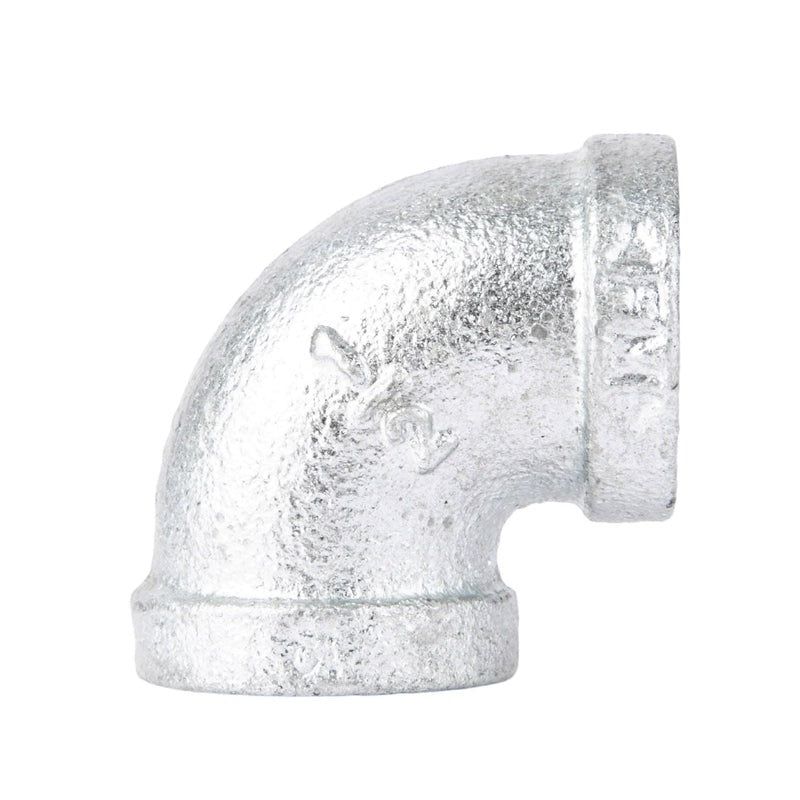

Coda Resources 506386 Galvanized Iron 90 Degree Elbow 1/2 in

Product Description

The CODA RESOURCES 506386 is a 1/2-inch galvanized malleable iron 90-degree elbow fitting designed for pipe assemblies requiring a right-angle direction change. Constructed from industrial-grade malleable iron with a galvanized finish, this elbow provides corrosion resistance and a clean, silver appearance. It measures 1.7 inches wide by 1.76 inches high by 1.22 inches long. IPS-threaded connections allow it to mate with standard pipe, valves, and compatible lamp components. Plumbers, pipefitters, and experienced DIYers install this type of fitting in both functional piping runs and decorative pipe assemblies. No pre-cleaning or sealing is required before installation.

The 506386 elbow is suited for 1/2-inch pipe applications in water service and decorative pipe furniture projects. Its galvanized malleable iron construction handles the mechanical stress of threaded assembly without cracking or deforming. The fitting works across a wide range of project types, including structural pipe frames, custom shelving, lighting assemblies, and other fabricated pipe structures. The IPS thread pattern ensures compatibility with standard pipe stock and a broad selection of fittings and accessories of the same diameter, making it straightforward to source matching components for larger builds.

Key Features

• Galvanized malleable iron construction provides corrosion resistance without additional sealing
• Standard IPS threads mate with pipe, valves, and lamp parts of the same diameter
• 90-degree turn in a compact form factor: 1.7 inches wide by 1.76 inches high by 1.22 inches long
• Project-ready out of the box — no cleaning or pre-treatment required
• Compatible with water service and decorative applications
• Galvanized silver finish suits industrial, vintage, and modern aesthetic pipe builds

Compatibility

Compatible with 1/2-inch IPS-threaded pipes, fittings, valves, lamp parts, and pipe furniture kits of the same diameter. Also referenced under product ID FMGE90-12.

Installation Notes

This fitting is typically installed by plumbers or pipefitters working with threaded iron pipe systems. Shut off water supply and relieve system pressure before replacing or adding any threaded fitting in an active water line. Apply an appropriate thread sealant or PTFE tape to male threads before assembly; hand-tighten first, then use a pipe wrench to bring the fitting to proper engagement. For decorative, non-pressurized assemblies, follow general IPC guidelines where local code applies.

Technical Specifications

• Diameter: 1/2 inch
• Width: 1.7 inches
• Height: 1.76 inches
• Length: 1.22 inches
• Material: Galvanized Malleable Iron
• Thread Type: IPS
• Angle: 90 degrees
• Uses: Water, Decor

Standard Information

• Brand: CODA RESOURCES
• Manufacturer Part Number: 506386
