Coda Resources 506380 3/4 in Galvanized Iron 45 Degree Elbow

Product Description

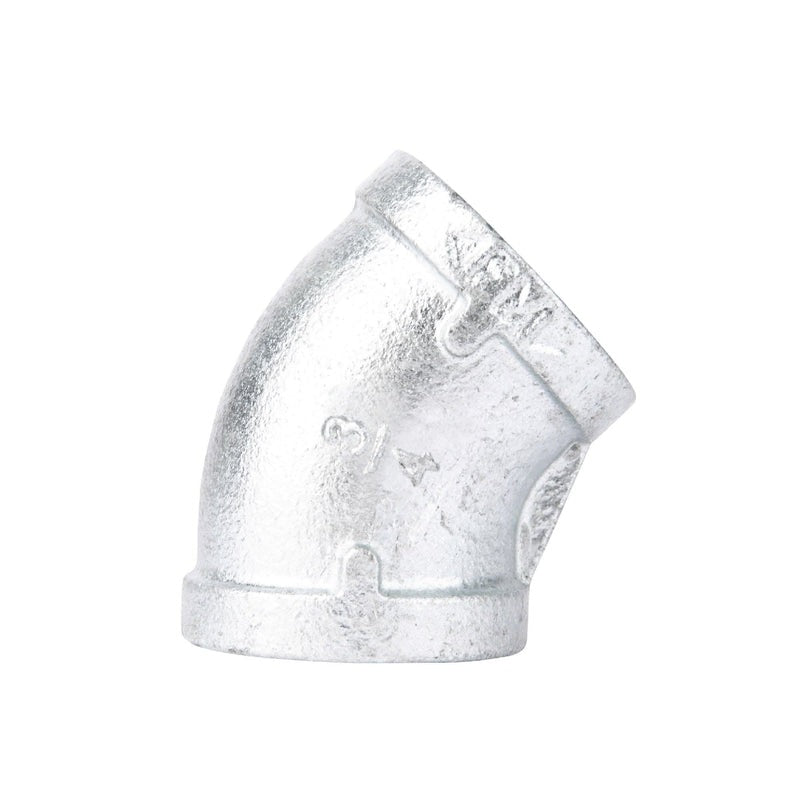

The CODA RESOURCES 506380 is a 3/4-inch galvanized malleable iron 45-degree elbow fitting designed for directional changes in threaded pipe assemblies. Constructed from industrial-grade malleable iron with a galvanized finish, this elbow measures 1.76 inches wide, 2.13 inches tall, and 1.47 inches long. The galvanized coating provides a silver, polished appearance and baseline corrosion resistance. This fitting is suited for plumbers, pipefitters, and fabricators working with standard 3/4-inch threaded iron pipe systems. Its malleable iron construction allows the fitting to withstand mechanical stress better than brittle cast iron, making it a practical choice for both functional piping and decorative pipe fabrication work.

This 45-degree elbow is appropriate for residential and light commercial applications where a mid-angle directional change is needed in a threaded iron pipe run. Listed uses include water service lines and decorative pipe assemblies such as shelving, furniture frames, and fixture fabrication. The 3/4-inch nominal size is a common diameter in residential water distribution and light industrial piping layouts. Fabricators working on pipe furniture or custom bracket systems will find the 45-degree angle useful for angled transitions that a standard 90-degree elbow cannot achieve.

Key Features

• 45-degree angle allows mid-angle directional changes in threaded pipe runs
• Galvanized malleable iron construction resists corrosion and handles mechanical stress
• 3/4-inch nominal diameter fits standard threaded iron pipe
• Compact profile: 1.76 inches wide, 2.13 inches tall, 1.47 inches long
• Suitable for water service and decorative pipe fabrication applications

Compatibility

Designed for use with standard 3/4-inch nominal threaded malleable iron pipe systems. Also referenced under product ID FMGE45-34.

Installation Notes

Installation should be performed by a licensed plumber when used in pressurized water service applications, following applicable IPC and local plumbing code requirements. Shut off water supply and relieve system pressure before disassembling any threaded fittings. Apply thread sealant tape or pipe dope to male threads before assembly and tighten to hand-snug plus wrench-tight using pipe wrenches. Do not over-tighten malleable iron fittings, as excessive force can crack the fitting body.

Technical Specifications

• Nominal Pipe Size: 3/4 inch
• Angle: 45 degrees
• Material: Galvanized Malleable Iron
• Width: 1.76 inches
• Height: 2.13 inches
• Length: 1.47 inches
• Listed Uses: Water, Decorative

Standard Information

• Brand: CODA RESOURCES
• Manufacturer Part Number: 506380
