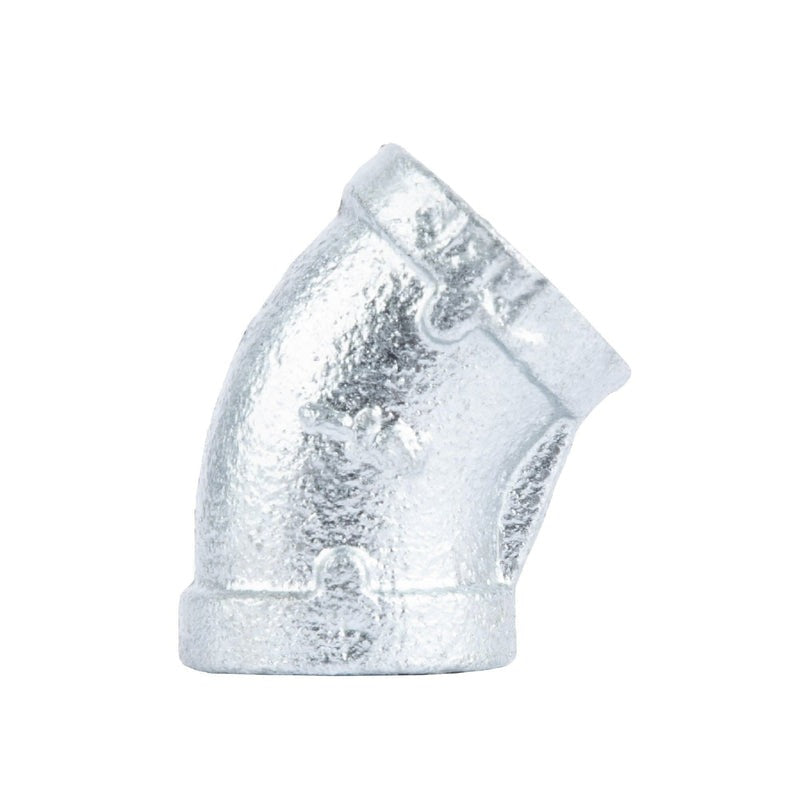

Coda Resources 506374 Galvanized Iron 45 Degree Elbow 1/2 in

Product Description

The CODA RESOURCES 506374 is a 1/2 inch galvanized malleable iron 45-degree elbow fitting designed for pipe assembly applications in both functional plumbing and structural pipe fabrication. Constructed from industrial-grade malleable iron with a galvanized finish, this elbow changes flow or pipe direction at a 45-degree angle. The silver galvanized coating provides corrosion resistance and a clean, consistent appearance. At 1.61 inches wide, 1.92 inches tall, and 1.22 inches in length, it is a compact fitting suited for tight installations. Licensed plumbers and experienced fabricators install this type of fitting across residential and light commercial applications.

This fitting is rated for water service and is also widely used in decorative pipe fabrication projects such as shelving, lighting fixtures, and custom furniture frames. The 1/2 inch nominal diameter makes it compatible with standard 1/2 inch black or galvanized pipe. The malleable iron construction handles the stress of threaded assembly without cracking, making it reliable in both structural and low-pressure piping configurations. It is appropriate for interior installations where a metallic industrial aesthetic is desired alongside functional performance.

Key Features

• 45-degree elbow angle for directional pipe routing
• 1/2 inch nominal pipe diameter threading
• Galvanized malleable iron construction for corrosion resistance
• Compact footprint: 1.61 inches wide, 1.92 inches tall, 1.22 inches long
• Rated for water and decorative pipe applications
• Threaded female connections for standard pipe assembly

Compatibility

Designed for use with standard 1/2 inch threaded pipe in water service and decorative pipe fabrication applications. Also referenced under product ID FMGE45-12.

Installation Notes

This fitting is installed by a licensed plumber when used in water service applications, following applicable IPC or local plumbing code requirements. Shut off the water supply and depressurize the line before removing or installing any threaded fittings. Apply thread sealant tape or pipe compound to male threads before assembly and tighten to hand-snug plus wrench-tight without over-torquing malleable iron. Inspect threads for damage before installation to avoid leaks.

Technical Specifications

• Pipe Diameter: 1/2 inch
• Width: 1.61 inches
• Height: 1.92 inches
• Length: 1.22 inches
• Material: Galvanized Malleable Iron
• Elbow Angle: 45 degrees
• Rated Uses: Water, Decorative

Standard Information

• Brand: CODA RESOURCES
• Manufacturer Part Number: 506374
