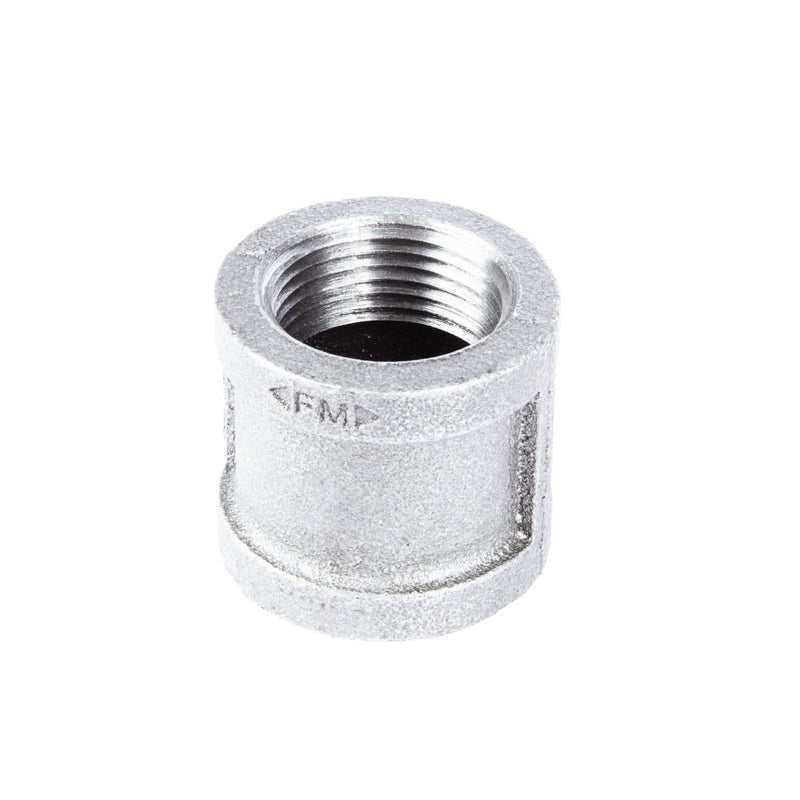

Coda Resources 506359 Galvanized Iron Coupling 3/4 Inch

Product Description

The CODA RESOURCES 506359 is a 3/4 inch galvanized malleable iron coupling designed to join two threaded pipe sections end to end. It extends or connects pipe runs in both functional plumbing and structural pipe assemblies. The fitting measures 1.52 inches wide by 1.47 inches high and is finished in a standard silver galvanized coating. Its malleable iron construction handles the mechanical stress typical of threaded pipe systems. Plumbers and pipefitters install this type of fitting during new installations, repairs, or custom pipe fabrication work.

This coupling is suited for residential and light commercial applications where a threaded 3/4 inch connection is needed. It sees use in water supply lines as well as structural pipe projects such as shelving, clothing racks, table legs, and bar stool frames. The galvanized finish resists corrosion and maintains appearance in exposed installations. It is compatible with standard 3/4 inch threaded iron pipe.

Key Features

• 3/4 inch diameter threaded coupling for joining two pipe sections
• Galvanized malleable iron construction resists corrosion and mechanical stress
• Compact profile — 1.52 inches wide by 1.47 inches high
• Silver galvanized finish suits both utility and exposed decorative installs
• Rated for water supply and general-purpose pipe assembly uses

Compatibility

Designed as an OEM-style threaded replacement fitting for standard 3/4 inch iron pipe systems in residential and light commercial plumbing and structural pipe applications.

Installation Notes

Installation is performed by a licensed plumber or qualified pipefitter. Shut off the water supply and depressurize the line before threading any fitting. Apply listed pipe thread sealant or PTFE tape to all male threads before assembly. Tighten to hand-snug first, then wrench-tighten per standard practice — avoid over-tightening malleable iron fittings, which can crack the casting.

Technical Specifications

• Diameter: 3/4 inch
• Width: 1.52 inches
• Height: 1.47 inches
• Material: Galvanized Malleable Iron
• Listed Uses: Water, Decor

Standard Information

• Brand: CODA RESOURCES
• Manufacturer Part Number: 506359
