Coda Resources 506286 1 Inch Union Global (1 per Pack) FMBU-1

Product Description

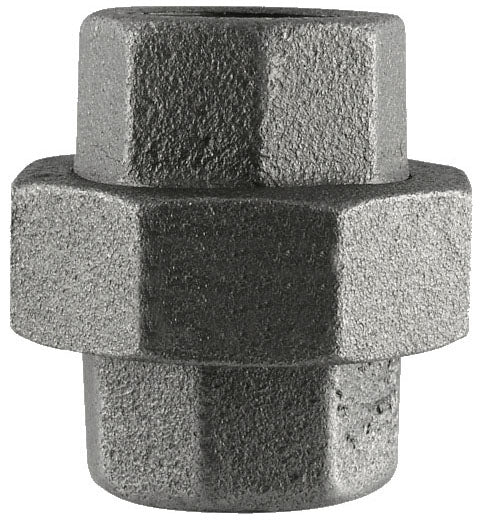

Coda Resources 506286 is a 1 inch straight union fitting with female threaded x female threaded connections, constructed from malleable iron per ASTM A197 for residential gas, air and LP applications. It is pressure rated to 300 PSI at 150°F and 150 PSI at 300°F, is 100% pressure tested, and conforms to ANSI/ASME B1.20.1, B16.3, B16.14, B16.39, UL and FM standards.

• End connections: female threaded x female threaded; type: straight; size: 1 inch.
• Material: malleable iron per ASTM A197; manufactured for residential gas, air and LP applications.
• Pressure rating: 300 PSI at 150°F and 150 PSI at 300°F; 100% pressure tested; conforms to ANSI/ASME and UL/FM standards.

Product Highlights

1 inch malleable iron straight union with female threaded connections; 300 PSI at 150°F rating; ASTM A197; suitable for residential gas, air and LP systems.

Product Information

Standard Information

• Brand: CODA RESOURCES
• Manufacturer Part Number: 506286

Technical Specifications

• Brand: Coda Resources
• MPN: 506286
• Replacement MPN: FMBU-1
• Type: Straight union
• End Connection: Female threaded x female threaded
• Size: 1 Inch
• Material: Malleable iron
• Material Specification: ASTM A197
• Finish: Black
• Pressure Rating: 300 PSI at 150°F; 150 PSI at 300°F
• Pressure Test: 100% pressure tested
• Application: Residential gas, air and LP
• Applicable Standards: ANSI/ASME B1.20.1; B16.3; B16.14; B16.39; UL; FM
• UPC: 019442421984
• Product Line: Gas Pipe, Fttgs, Ward-Flex
• UNSPSC: 40174906
