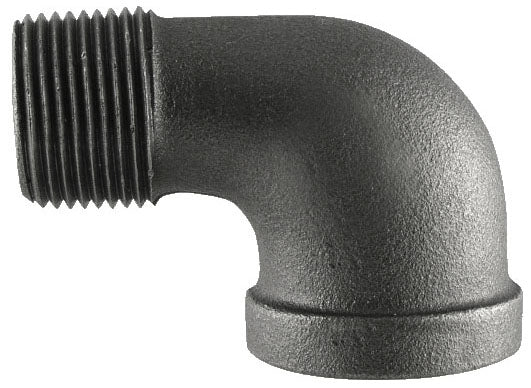

Coda Resources 506262 1 Inch Street Elbow (1 Inch / 90 Degree) FMBSE90-1

Product Description

Coda Resources 506262 is a malleable iron 90-degree street elbow with 1 inch male threaded x 1 inch female threaded ends for residential gas, air, and LP applications. The fitting meets ASTM A197 material specifications and is pressure rated to 300 PSI at 150 Deg F and 150 PSI at 300 Deg F. It is 100% pressure tested and conforms to ANSI/ASME B1.20.1, B16.3, B16.14, B16.39, UL, and FM standards.

• Malleable iron construction per ASTM A197; black finish
• 1 inch male threaded x 1 inch female threaded ends; 90-degree street elbow
• Pressure rated 300 PSI at 150 Deg F and 150 PSI at 300 Deg F; 100% pressure tested; meets ANSI/ASME, UL, and FM standards

Product Highlights

1 inch malleable iron 90-degree street elbow, male x female threaded, 300 PSI @ 150 Deg F; ASTM A197; ANSI/ASME and UL/FM compliant

Product Information

Standard Information

• Brand: CODA RESOURCES
• Manufacturer Part Number: 506262

Technical Specifications

• Brand: Coda Resources
• MPN: 506262
• Type: Street (straight) elbow fitting
• Angle: 90 Degree
• Size: 1 Inch
• End Connection: 1 Inch male threaded x 1 Inch female threaded
• Material: Malleable iron
• Material Specification: ASTM A197
• Finish: Black
• Pressure Rating: 300 PSI at 150 Deg F; 150 PSI at 300 Deg F
• Application: Residential gas, air, LP
• Standards: ANSI/ASME B1.20.1; B16.3; B16.14; B16.39; UL; FM
• Tested: 100% pressure tested
• Additional Part Number: FMBSE90-1
• UPC: 019442421823
• UNSPSC: 40172806
