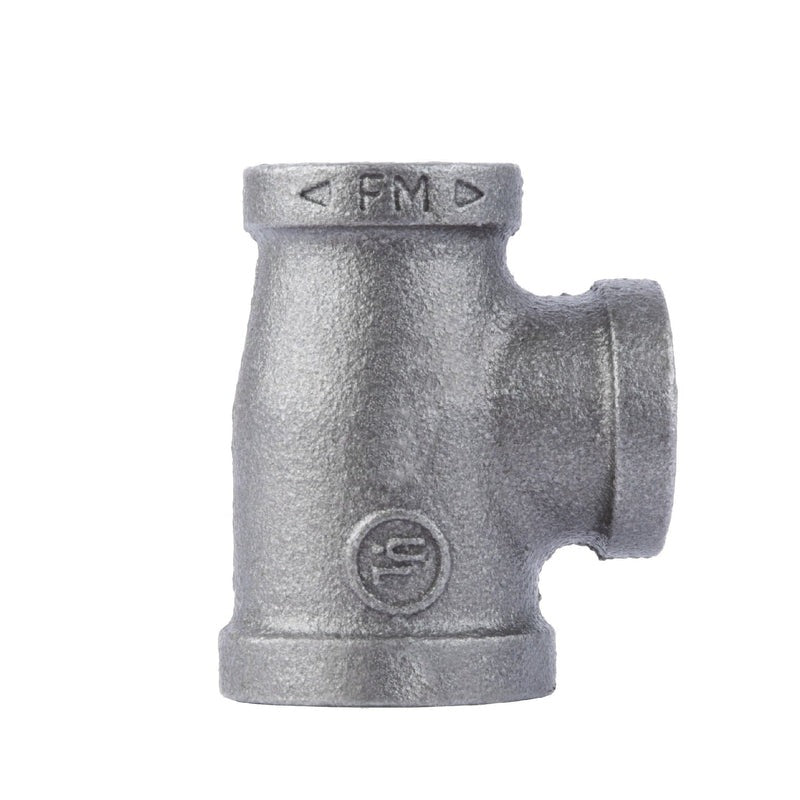

Coda Resources 506247 Black Malleable Iron Reducing Tee

Product Description

The CODA RESOURCES 506247 is a black malleable iron reducing tee designed for use in threaded pipe assemblies across gas, air, and liquid propane systems. The fitting transitions a 3/4 inch run to two 1/2 inch outlets, allowing a single main line to branch into smaller lateral lines. Measuring 2.01 inches wide, 2.34 inches tall, and 1.49 inches long, this compact fitting is suited for both functional utility piping and decorative pipe fabrication. Licensed plumbers, gas fitters, and pipefitters install this type of fitting as part of standard black iron pipe systems.

This reducing tee is appropriate for residential and light commercial installations where a threaded black iron pipe run requires a directional branch at a reduced diameter. Typical applications include gas distribution lines, compressed air networks, liquid propane supply lines, and decorative pipe furniture or shelving builds. The 3/4 inch by 1/2 inch by 1/2 inch configuration is commonly used where a main feed line steps down to supply smaller branch outlets or fixtures.

Key Features

• Black malleable iron construction for durability in gas, air, and liquid propane service
• 3/4 in. run inlet with dual 1/2 in. branch outlets for flow reduction in a single fitting
• Threaded connections compatible with standard black iron pipe systems
• Compact form factor: 2.01 inches wide, 2.34 inches tall, 1.49 inches long
• Suitable for both mechanical utility piping and decorative pipe fabrication

Compatibility

Designed as an OEM-style replacement and general-use fitting for standard threaded black iron pipe assemblies in gas, air, and liquid propane systems. Also referenced under product ID FMBRT-341212.

Installation Notes

Installation should be performed by a licensed plumber or gas fitter in accordance with applicable local codes and the International Fuel Gas Code (IFGC) for gas service applications. Shut off and depressurize the supply line completely before disassembling or installing any threaded fittings. Apply an approved thread sealant or pipe tape rated for the intended service medium. Do not overtighten threaded connections by using the fitting body as leverage, as malleable iron fittings can crack under excessive torque applied at the wrong point.

Technical Specifications

• Material: Black Malleable Iron
• Inlet Diameter: 3/4 inches
• Outlet Diameter: 1/2 inches (x2)
• Width: 2.01 inches
• Height: 2.34 inches
• Length: 1.49 inches
• Compatible Services: Gas, Air, Liquid Propane, Decor

Standard Information

• Brand: CODA RESOURCES
• Manufacturer Part Number: 506247
