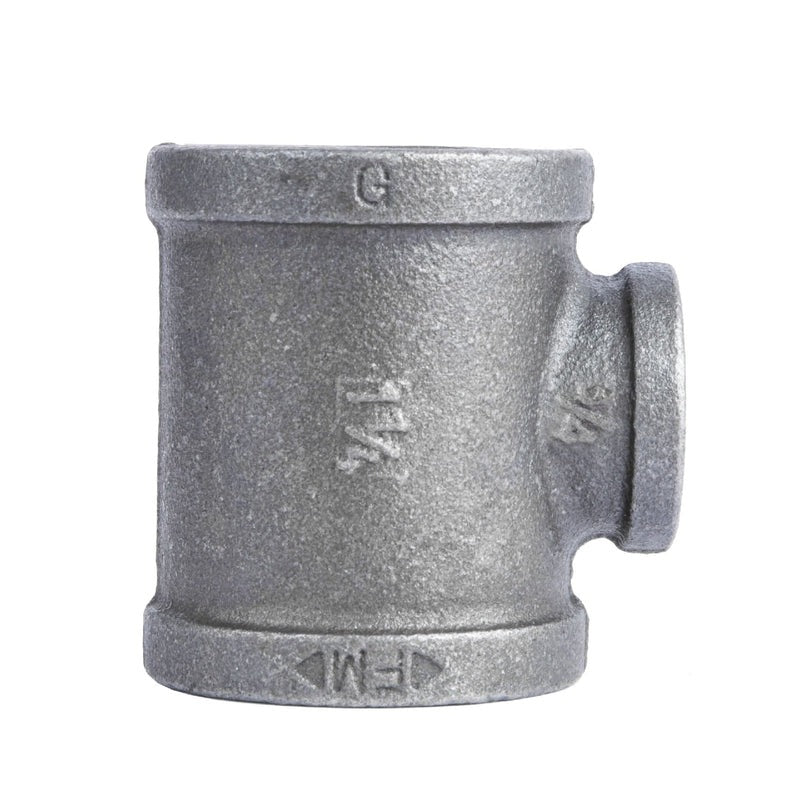

Coda Resources 506228 Black Reducing Tee 1-1/4x1-1/4x3/4

Product Description

The CODA RESOURCES 506228 is a black malleable iron reducing tee designed for piping systems that require a branch outlet smaller than the run. The fitting connects 1-1/4 inch run ports to a 3/4 inch branch outlet and measures 2.8 inches wide by 2.8 inches tall. Malleable iron construction provides the strength needed for pressure-bearing service in gas, compressed air, and liquid propane applications. Plumbers, pipefitters, and HVAC technicians install this type of fitting when routing a reduced branch off a main supply line. The threaded ends accept standard NPT pipe for a secure, leak-resistant connection.

This reducing tee is suited for residential and light commercial piping runs carrying natural gas, liquid propane, or compressed air. It is also widely used in industrial-style pipe fabrication projects where exposed black iron is a design element. The fitting works wherever a standard tee is appropriate, provided the 3/4 inch branch is sized correctly for the flow or load requirements of the system. Typical installation environments include utility rooms, workshops, and mechanical spaces.

Key Features

• Black malleable iron construction for durability in pressure-bearing service
• 1-1/4 inch run ports with 3/4 inch reducing branch outlet
• Threaded NPT ends for secure, standard connection
• Rated for gas, compressed air, and liquid propane service
• Compact footprint at 2.8 inches wide by 2.8 inches tall

Compatibility

Designed as a standard NPT-threaded black malleable iron reducing tee compatible with 1-1/4 inch and 3/4 inch iron pipe in gas, air, and liquid propane piping systems. Also referenced under product ID FMBRT-11411434.

Installation Notes

This fitting is typically installed by a licensed plumber or pipefitter. Shut off and depressurize the supply line completely before disassembling any existing piping. Apply an approved pipe thread sealant or PTFE tape rated for the service medium to all threaded joints. Gas piping work must comply with IFGC requirements and any applicable local codes; a pressure test should be performed after installation before returning the system to service.

Technical Specifications

• Material: Black Malleable Iron
• Run Diameter: 1-1/4 inches
• Branch Diameter: 3/4 inch
• Width: 2.8 inches
• Height: 2.8 inches
• Approved Uses: Gas, Air, Liquid Propane

Standard Information

• Brand: CODA RESOURCES
• Manufacturer Part Number: 506228
