Coda Resources 506167 Plug Fitting Square Head (3/4 Inch/1 per Pack) FMBP-34

Product Description

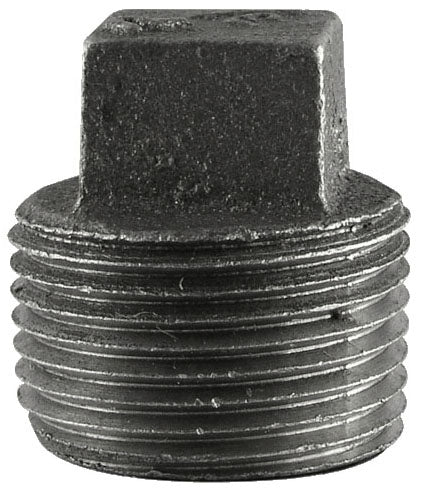

Coda Resources 506167 is a plug fitting with a square head designed for 3/4 inch nominal pipe, providing a male threaded end connection and an overall length of 1.07 inch. The fitting is constructed of malleable iron per ASTM A197 and is pressure rated 300 PSI at 150°F and 150 PSI at 300°F. It is intended for residential gas, air, and LP applications and is 100% pressure tested.

• Malleable iron construction per ASTM A197 with 100% pressure testing
• Nominal pipe size 3/4 inch, male threaded end connection, overall length 1.07 inch
• Pressure rated 300 PSI at 150°F and 150 PSI at 300°F; designed for residential gas, air and LP

Product Highlights

3/4 inch square head plug fitting, malleable iron, male threaded, pressure rated up to 300 PSI.

Product Information

Standard Information

• Brand: CODA RESOURCES
• Manufacturer Part Number: 506167

Technical Specifications

• Brand: Coda Resources
• Manufacturer Part Number: 506167
• Description: Plug fitting
• Type: Square head
• Nominal Pipe Size: 3/4 Inch
• Overall Length: 1.07 Inch
• End Connection: Male threaded
• Material: Malleable iron
• Material Specification: ASTM A197
• Pressure Rating: 300 PSI at 150°F; 150 PSI at 300°F
• Application: Residential gas, air and LP
• Standards: ANSI/ASME B1.20.1, B16.3, B16.14, B16.39; UL; FM
• Additional Part Number: FMBP-34
• UPC: 019442420901
• UNSPSC: 40173506
• Features: 100% pressure tested
