Coda Resources 506158 1 inches Plug 1 Inch (1 per Pack) FMBP-1

Product Description

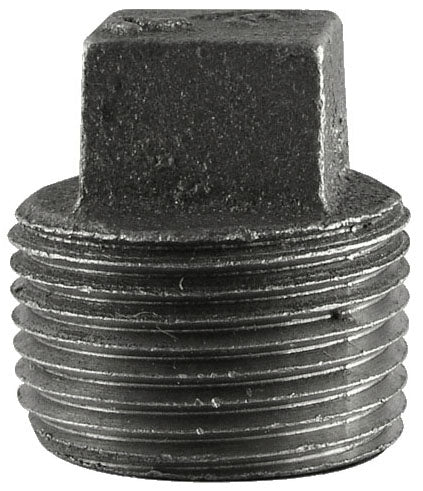

Coda Resources 506158 is a 1 inch plug with a square head and male threaded end connection constructed of malleable iron to ASTM A197. It has an overall length of 1.25 inches, is pressure rated 300 PSI at 150°F and 150 PSI at 300°F, and is intended for residential gas, air, and LP applications. The part conforms to relevant ANSI/ASME, UL, and FM standards and is packaged in bulk.

• Malleable iron construction meeting ASTM A197 material specification
• Square head with male threaded end connection; nominal pipe size 1 inch; overall length 1.25 inches
• Pressure rated 300 PSI at 150°F and 150 PSI at 300°F; suitable for residential gas, air, and LP use

Product Highlights

Square head 1 inch malleable iron plug, ASTM A197, 300/150 PSI pressure rating

Product Information

Standard Information

• Brand: CODA RESOURCES
• Manufacturer Part Number: 506158

Technical Specifications

• Manufacturer Part Number: 506158
• Replacement Part Number: FMBP-1
• Description: 1 inch plug
• End Connection: Male threaded
• Head Type: Square head
• Nominal Pipe Size: 1 inch
• Overall Length: 1.25 inch
• Material: Malleable iron
• Material Specification: ASTM A197
• Finish: Black
• Pressure Rating: 300 PSI at 150 Deg F; 150 PSI at 300 Deg F
• Application: Residential gas, air and LP
• Applicable Standards: ANSI/ASME B1.20.1; B16.3; B16.14; B16.39; UL; FM
• Packaging Type: Bulk
• Individual Item Quantity: 1 per Pack
• Package Quantity: 240 per Master Carton
• Manufacturer: Coda Resources Ltd
• Product Line: Gas Pipe, Fttgs, Ward-Flex
• UPC: 019442420833
• UNSPSC: 40173506
