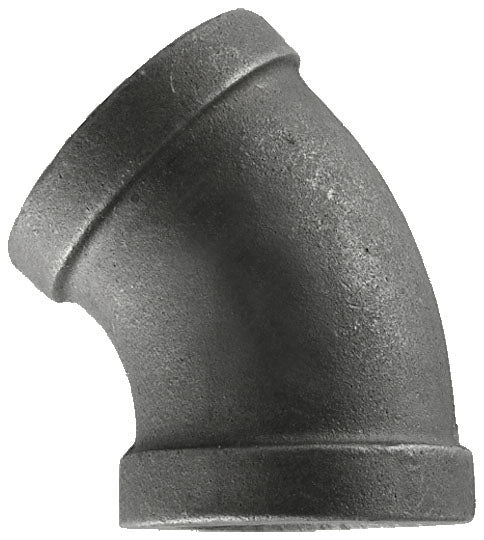

Coda Resources 505819 3/4 Inch 45 Degree Elbow (45 Degree) FMBE45-34

Product Description

Coda Resources 505819 is a 3/4 inch 45 degree elbow fitting made of malleable iron per ASTM A197 for residential gas, air, and LP systems. The fitting has female threaded x female threaded end connections and a black finish. Pressure rating is 300 PSI at 150 Deg F and 150 PSI at 300 Deg F. It meets ANSI/ASME B1.20.1, B16.3, B16.14, B16.39, UL, and FM standards.

• Malleable iron construction per ASTM A197 with black finish
• Female threaded x female threaded end connections, size 3/4 inch x 3/4 inch
• Pressure rating: 300 PSI at 150 Deg F; 150 PSI at 300 Deg F; suitable for residential gas, air, and LP; meets ANSI/ASME, UL, FM

Product Highlights

3/4 inch 45 degree malleable iron elbow with female threaded ends; pressure rated for residential gas, air and LP; compliant with ANSI/ASME, UL, and FM standards.

Product Information

Standard Information

• Brand: CODA RESOURCES
• Manufacturer Part Number: 505819

Technical Specifications

• Description: 3/4" Black 45 Degree Elbow
• Manufacturer Part Number: 505819
• Additional Part Number: FMBE45-34
• Angle: 45 Degree
• Type: 45 Degree Elbow
• End Connection: Female Threaded x Female Threaded
• Size: 3/4 Inch x 3/4 Inch
• Material: Malleable Iron
• Material Specification: ASTM A197
• Finish: Black
• Pressure Rating: 300 PSI at 150 Deg F; 150 PSI at 300 Deg F
• Application: Residential Gas, Air and LP
• Applicable Standards: ANSI/ASME B1.20.1; B16.3; B16.14; B16.39; UL; FM
• Product Line Description: Gas Pipe, Fttgs, Ward-Flex
• UNSPSC: 40172806
• UPC: 019442420666
