Coda Resources 505811 45 Degree Elbow (1 Inch Female Threaded x Female Threaded) FMBE45-1

Product Description

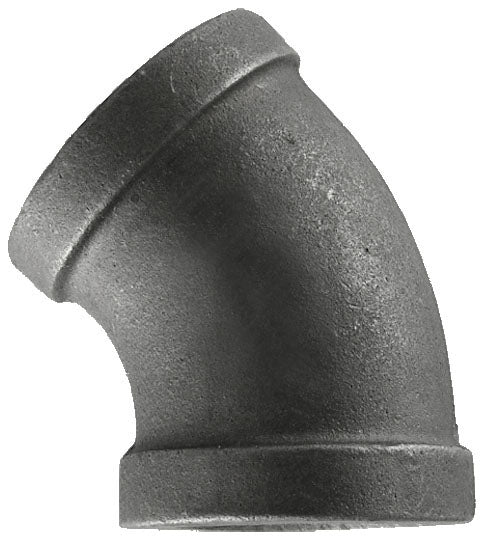

Coda Resources 505811 is a malleable iron 45 degree elbow fitting with 1 inch female threads on both ends. It conforms to ASTM A197 and is rated for 300 PSI at 150 Deg F and 150 PSI at 300 Deg F. The straight-type elbow is intended for residential gas, air and LP applications and meets ANSI/ASME B1.20.1, B16.3, B16.14, B16.39, UL, and FM standards. The fitting is 100% pressure tested.

• 1 inch female threaded x female threaded connections; 45 degree straight-type elbow.
• Malleable iron construction per ASTM A197; finish: black.
• Pressure rating: 300 PSI at 150 Deg F and 150 PSI at 300 Deg F; meets ANSI/ASME, UL and FM standards.

Product Highlights

1 inch 45° malleable iron elbow, female threaded x female threaded, ASTM A197, 300/150 PSI, 100% pressure tested

Product Information

Standard Information

• Brand: CODA RESOURCES
• Manufacturer Part Number: 505811

Technical Specifications

• Brand: CODA RESOURCES
• Manufacturer Part Number: 505811
• Replacement Part Number: FMBE45-1
• Description: Elbow Fitting
• Type: Straight-type elbow (45°)
• Angle: 45 Degree
• Size: 1 Inch (1" NPT threaded nominal size)
• End Connection: Female Threaded x Female Threaded
• Material: Malleable Iron
• Material Specification: ASTM A197
• Finish: Black
• Pressure Rating: 300 PSI at 150 °F; 150 PSI at 300 °F
• Application: Residential gas, air and LP
• Standards: ANSI/ASME B1.20.1; B16.3; B16.14; B16.39; UL; FM
• Features: 100% Pressure Tested
• UNSPSC: 40172806
