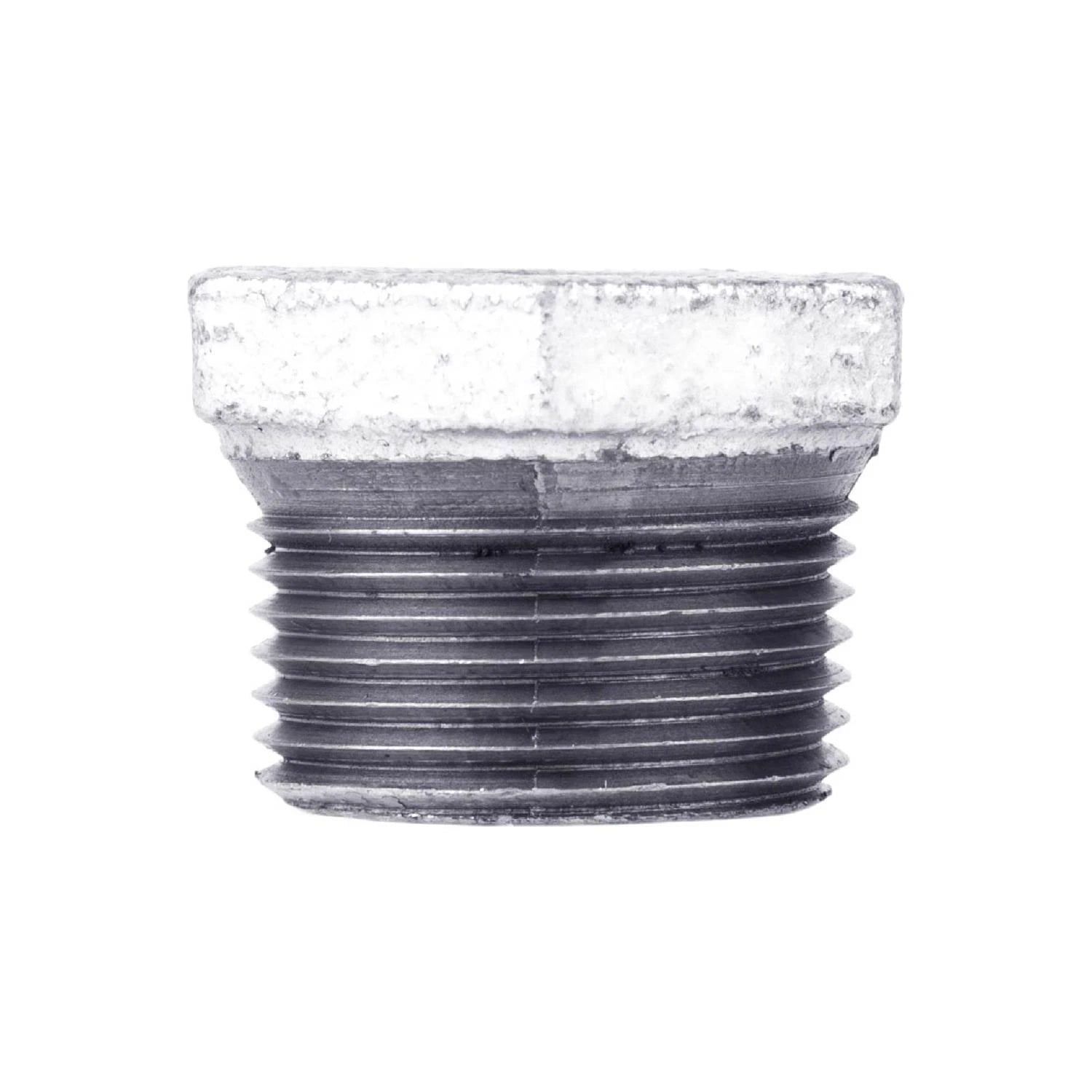

Coda Resources 501743 1-1/2 x 1/2 in. galvanized pipe bushing (1-1/2 x 1/2)

Product Description

Coda Resources 501743 is a 1-1/2 x 1/2 in. galvanized pipe bushing for residential and light commercial potable water systems. The Schedule 40 galvanized steel fitting is hot-dip galvanized per ASTM A153 and hydrostatically pressure tested at the factory. It is rated to 300 psi at 150°F and 150 psi at 300°F, certified to NSF 61, compliant with lead-free law, and listed by UL and FM.

• Hydrostatically pressure tested; rated 300 psi at 150°F and 150 psi at 300°F
• Schedule 40 galvanized steel with hot-dip galvanizing per ASTM A153
• Certified to NSF 61, compliant with lead-free law, UL and FM listed; not for underground use

Product Highlights

Galvanized Schedule 40 pipe bushing, hydrostatic tested, ASTM A153 hot-dip finish, NSF 61 and lead-free compliant, UL and FM listed

Product Information

Standard Information

• Brand: CODA RESOURCES
• Manufacturer Part Number: 501743

Technical Specifications

• Brand: Coda Resources
• Manufacturer: Coda Resources Ltd
• Manufacturer Part Number: 501743
• Model Number: 501743
• SKU: 336792
• UPC: 019442147815
• Product Type: Galvanized pipe bushing
• Size: 1-1/2 x 1/2 in
• Material: Schedule 40 galvanized steel
• Finish: Hot-dip galvanizing per ASTM A153
• Pressure Rating: Maximum 300 psi at 150°F; 150 psi at 300°F
• Testing: Hydrostatic pressure tested at the factory
• Intended Use: Residential and light commercial potable drinking water applications
• Certifications: NSF 61; UL listed; FM listed
• Lead Free Compliance: Compliant with lead-free law
• Not For: Not for underground use
