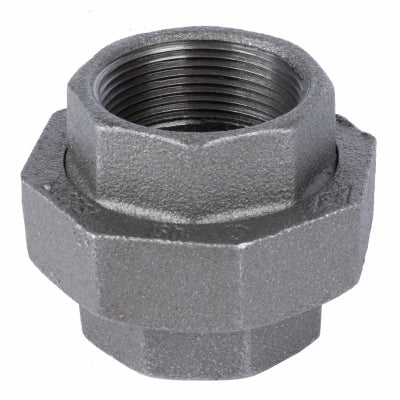

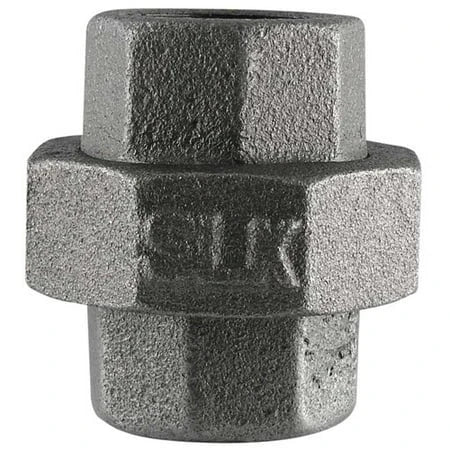

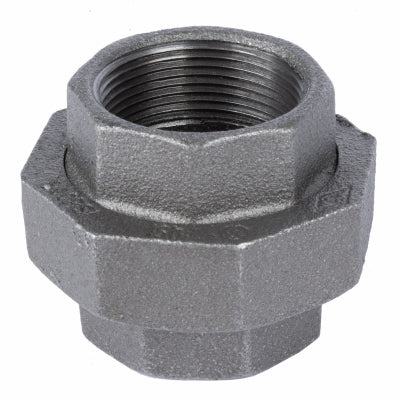

Coda Resources 501566 1/4 In. Pipe Union (1/4 In)

Product Description

Coda Resources 501566 is a 1/4 in. pipe union for above-ground gas, LP and air applications. The fitting is pressure tested at the factory, UL and FM listed, and rated to 300 psi at 150°F or 150 psi at 300°F. It uses IPS threads for compatibility with other project materials and is not for use with potable drinking water.

• UL and FM listed; pressure tested at the factory
• Rated 300 psi at 150°F and 150 psi at 300°F; intended for above-ground gas, LP and air
• IPS threads for compatibility with other fittings and components; not for potable water

Product Highlights

1/4 in. pipe union, black iron construction, UL and FM listed, IPS threads

Product Information

Standard Information

• Brand: CODA RESOURCES
• Manufacturer Part Number: 501566
• Country of Origin: China

Technical Specifications

• Brand: Coda Resources
• Manufacturer Part Number: 501566
• Model Number: 501566
• Manufacturer Name: CODA RESOURCES LTD
• Manufacturer Reference: Mueller Industries B-UNI02
• SKU: 451677
• UPC: 019442300241
• Material: Black iron
• Certifications: UL listed; FM listed
• Pressure Rating: 300 psi at 150°F; 150 psi at 300°F
• Thread Type: IPS threads
• Intended Applications: Above ground gas, LP and air
• Use Limitations: Not for use with potable drinking water
• Weight: 0.2 lbs
• Package Dimensions: 1.25 in x 1.5 in x 1.25 in
• Country of Origin: China
