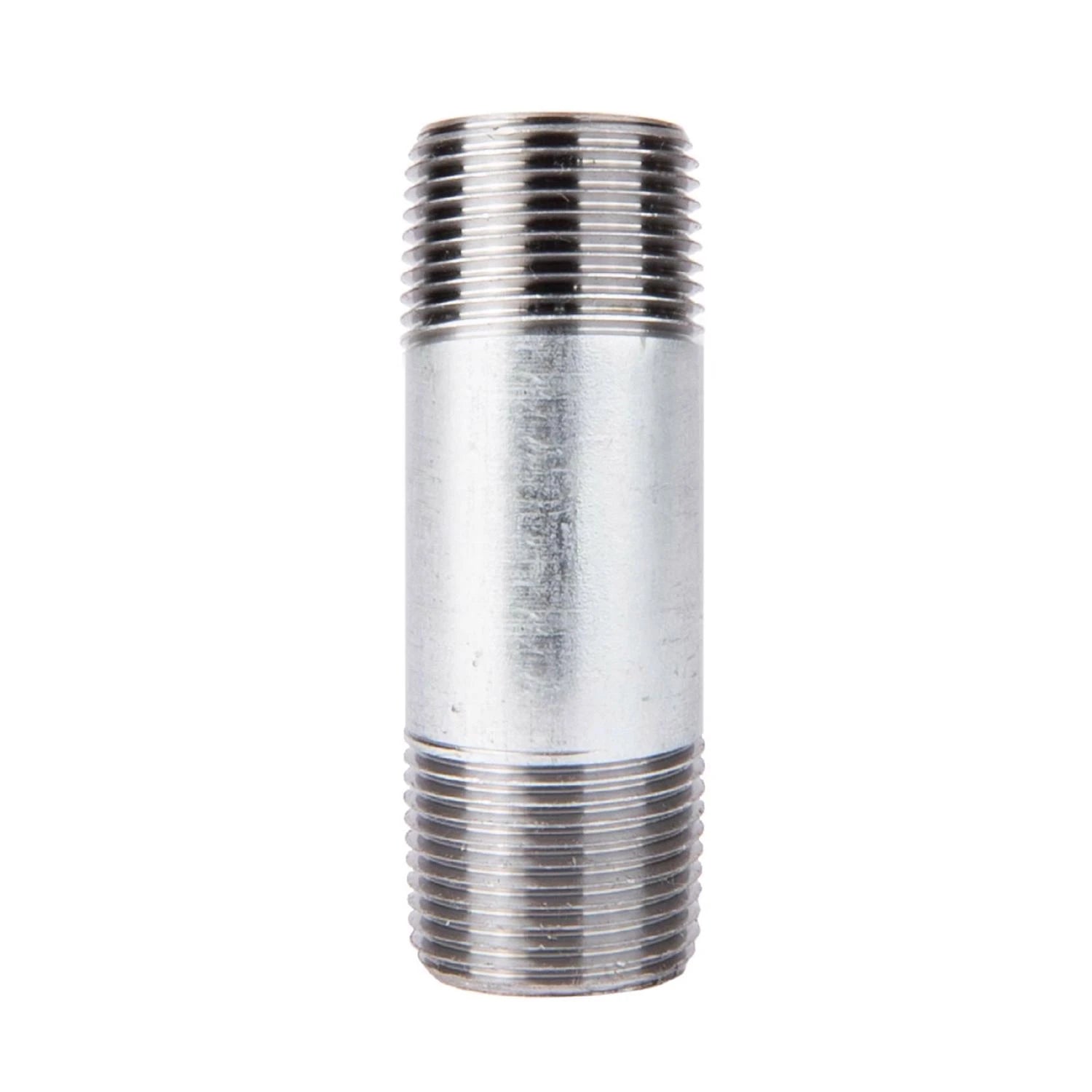

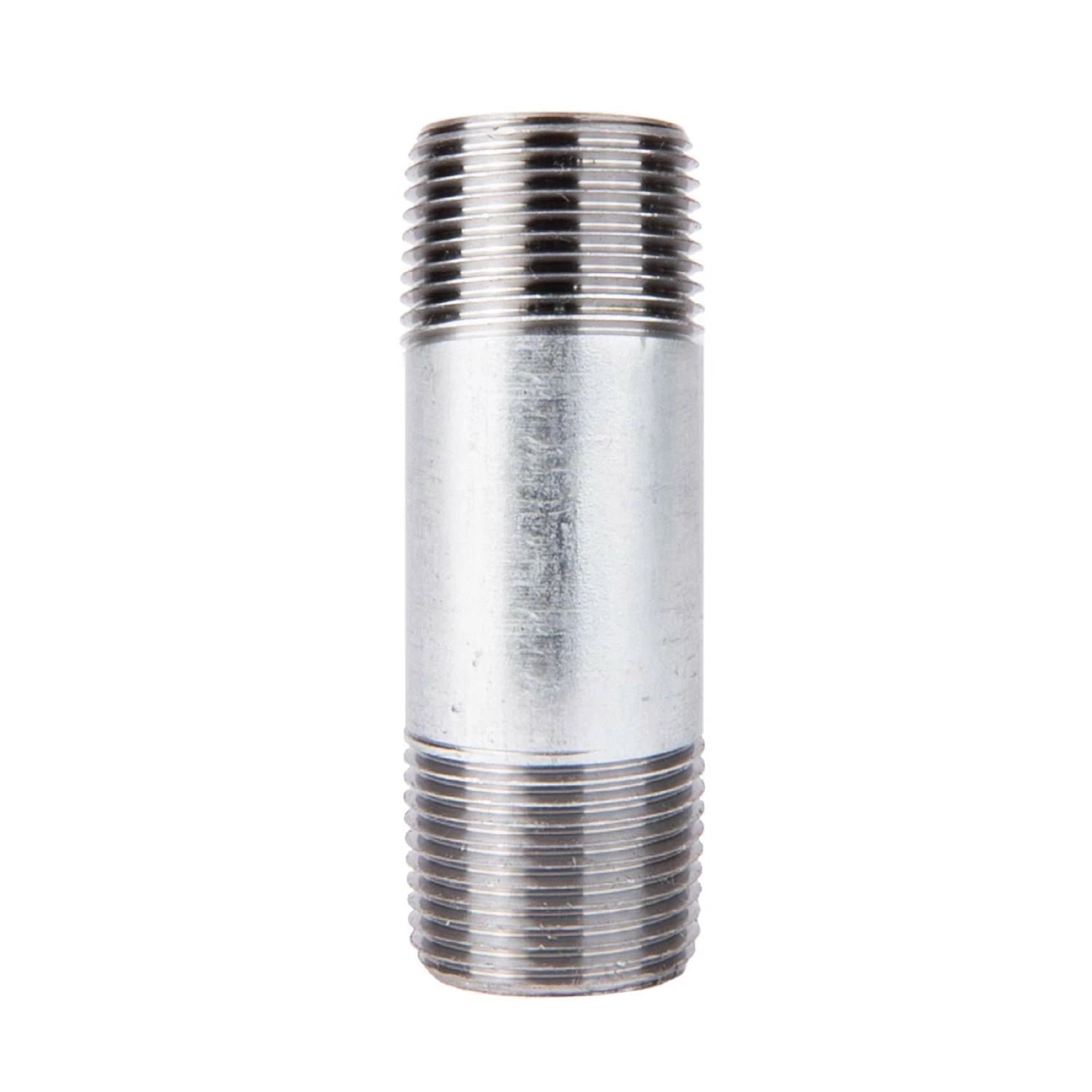

Coda Resources 501360 Galvanized Standard Pipe Nipple 3/8 Inch x 3 Inch (SCH 40)

Product Description

Coda Resources 501360 is a galvanized carbon steel pipe nipple with a 3/8 inch nominal diameter and 3 inch length intended for plumbing and HVAC connections. It is Schedule 40 with a 0.091 inch wall thickness and standard threaded ends for pipe joining. The nipple is hot-dip galvanized per ASTM A153, hydrostatically tested and rated to 203 psi at 400°F, and listed to UL and FM. It is certified to NSF 61 and applicable lead-free requirements for potable water use.

• 3/8 inch nominal diameter x 3 inch length; Schedule 40; 0.091 inch wall thickness
• Carbon steel construction with hot-dip galvanized finish per ASTM A153; hydrostatically tested; rated 203 psi at 400°F
• Standard threaded connections; UL and FM listed; certified to NSF 61 and lead-free requirements; intended for potable water, not for underground use

Product Highlights

Schedule 40 galvanized carbon steel nipple, 3/8 in x 3 in, 0.091 in wall, hot-dip galvanized, hydrostatically tested and certified for potable water

Product Information

Standard Information

• Brand: CODA RESOURCES
• Manufacturer Part Number: 501360
• Country of Origin: China

Technical Specifications

• Brand: Coda Resources
• Manufacturer Part Number: 501360
• SKU: 277756
• UPC: 045734904743
• Manufacturer Name: Coda Resources Ltd
• Material: Carbon steel
• Finish: Galvanized (hot-dip per ASTM A153)
• Size: 3/8 inch diameter x 3 inch length
• Nominal Diameter: 3/8 inch
• Length: 3 inches
• Schedule Rating: SCH 40
• Wall Thickness: 0.091 inch
• Maximum Pressure Rating: 203 psi at 400°F
• Hydrostatic Testing: Hydrostatically tested
• Listings/Certifications: UL listed; FM listed; certified to NSF 61 and lead-free law
• Intended Use: For potable drinking water; not for underground use
• Weight: 0.14 lbs
• Package Dimensions: Package Length: 3 in; Package Width: 0.75 in; Package Height: 0.75 in
• Country of Origin: China
