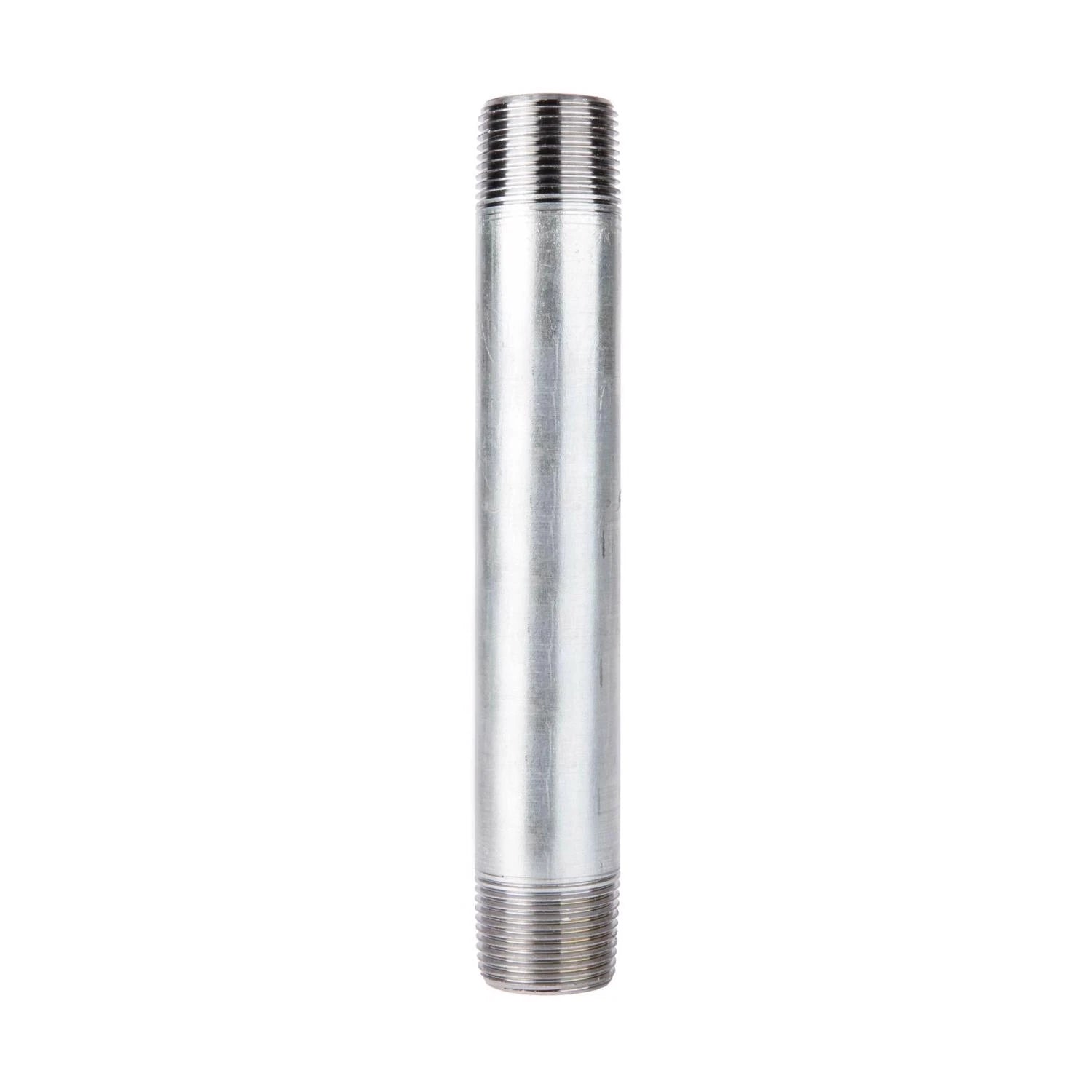

Coda Resources 501106 1-1/2 x 8 in. galvanized pipe nipple (1-1/2 x 8 in.)

Product Description

Coda Resources 501106 is a 1-1/2 x 8 in. Schedule 40 galvanized pipe nipple made of hot-dip galvanized steel for potable water applications. It is hydrostatically tested and rated to 231 psi at 400 F, certified to NSF 61 and compliant with lead-free law. The fitting is UL and FM listed, hot-dip galvanized per ASTM A153, measures 8 in. in length, and is not for underground use.

• Hydrostatically tested schedule 40 galvanized steel; rated 231 psi at 400 F
• Hot-dip galvanized finish per ASTM A153; certified to NSF 61 and lead-free compliant
• UL and FM listed; intended for residential and light commercial potable water applications; not for underground use

Product Highlights

1-1/2 x 8 in. schedule 40 galvanized pipe nipple; 231 psi at 400 F; NSF 61 certified; hot-dip galvanized per ASTM A153

Product Information

Standard Information

• Brand: CODA RESOURCES
• Manufacturer Part Number: 501106

Technical Specifications

• Brand: Coda Resources
• Manufacturer Part Number: 501106
• Model Number: 501106
• Product Name: 1-1/2 x 8 in. galvanized pipe nipple
• Size: 1-1/2 x 8 in.
• Pipe Schedule: Schedule 40
• Material: Galvanized steel
• Finish/Coating: Hot-dip galvanized (per ASTM A153)
• Pressure Rating: 231 psi at 400 F
• Temperature Rating: 400 F maximum
• Certifications: NSF 61; UL listed; FM listed
• Lead-free Compliance: Complies with lead-free law
• Hydrostatic Test: Hydrostatically tested
• Intended Use: Potable water; residential and light commercial
• Not for Underground Use: Yes
• Weight: 1.62 lbs
• Package Dimensions: Package Length: 8 in; Package Width: 1.75 in; Package Height: 1.75 in
• SKU: 232267
• UPC: 019442151270
• Manufacturer Name: CODA RESOURCES LTD IMP
