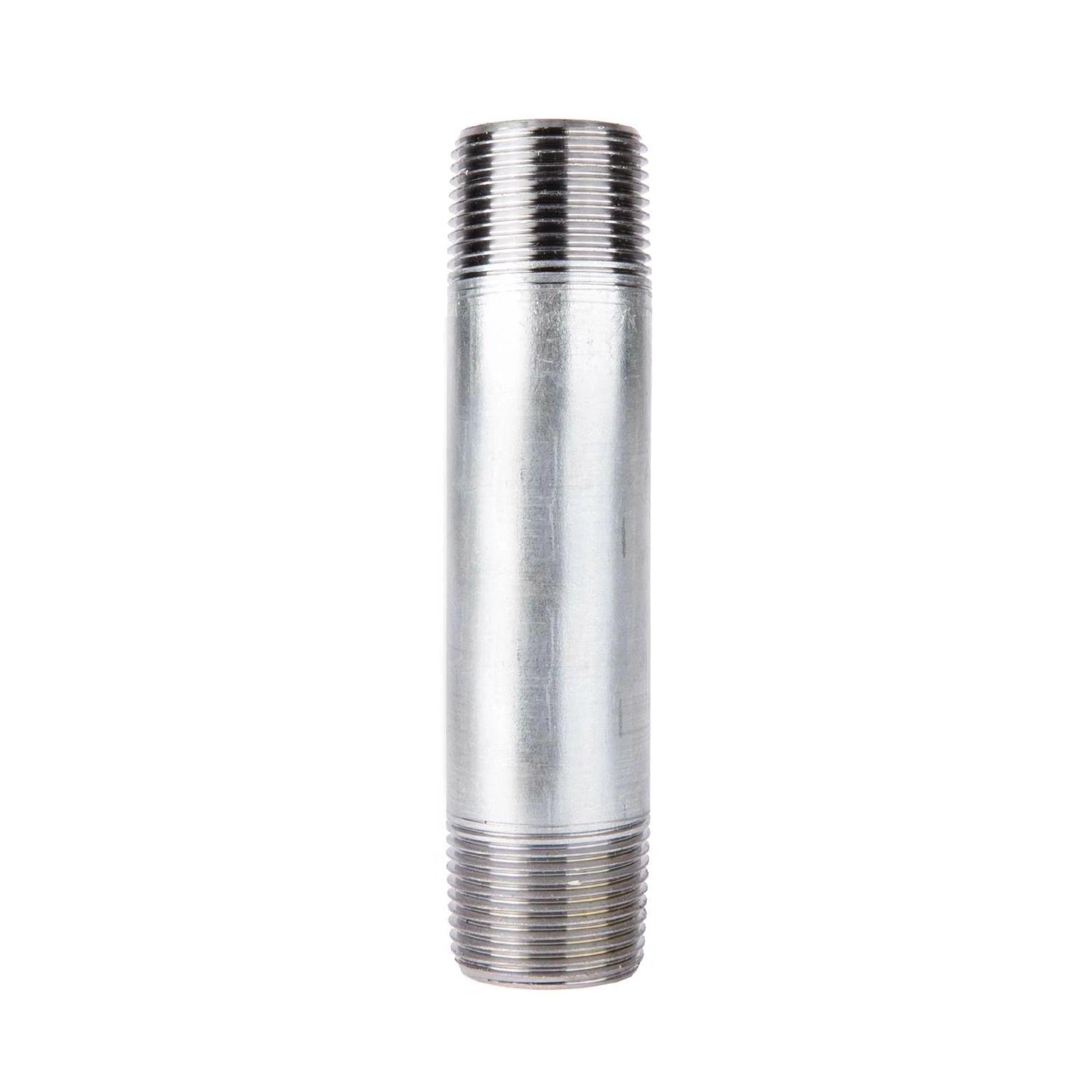

Coda Resources 500938 1-1/2 x 5-1/2 in. Galvanized Pipe Nipple

Product Description

Coda Resources 500938 is a 1-1/2 x 5-1/2 in. schedule 40 galvanized pipe nipple constructed of steel for residential and light commercial potable water applications. The fitting is hot-dip galvanized per ASTM A153, hydrostatically tested, and rated to a maximum 231 psi at 400 F. It is certified to NSF/ANSI 61, complies with lead-free law, and is listed to UL and FM standards.

• Schedule 40 galvanized steel construction, hot-dip galvanized per ASTM A153; hydrostatically tested and rated 231 psi at 400 F
• Certified to NSF/ANSI 61 and compliant with lead-free law; UL and FM listed for potable water use
• Size 1-1/2 x 5-1/2 in; constructed of steel; not for underground use

Product Highlights

Schedule 40 galvanized pipe nipple, 1-1/2 x 5-1/2 in; 231 psi at 400 F; NSF/ANSI 61 certified; ASTM A153 hot-dip galvanizing

Product Information

Standard Information

• Brand: CODA RESOURCES
• Manufacturer Part Number: 500938

Technical Specifications

• Brand: Coda Resources
• Manufacturer: Coda Resources Ltd
• Manufacturer Part Number: 500938
• SKU: 231784
• UPC: 019442152468
• Size: 1-1/2 x 5-1/2 in (nominal pipe size x length)
• Material: Schedule 40 galvanized steel
• Pressure Rating: 231 psi (maximum)
• Temperature Rating: 400 F (maximum)
• Galvanizing Standard: ASTM A153 (hot-dip)
• Certifications: NSF/ANSI 61; UL listed; FM listed
• Lead Free Compliance: Complies with lead-free law
• Test: Hydrostatically tested
• Application: Potable water, residential and light commercial
• Usage Restriction: Not for underground use
• Weight: 1.1 lbs
• Package Dimensions: 5.5 in (L) x 1.75 in (W) x 1.75 in (H)
