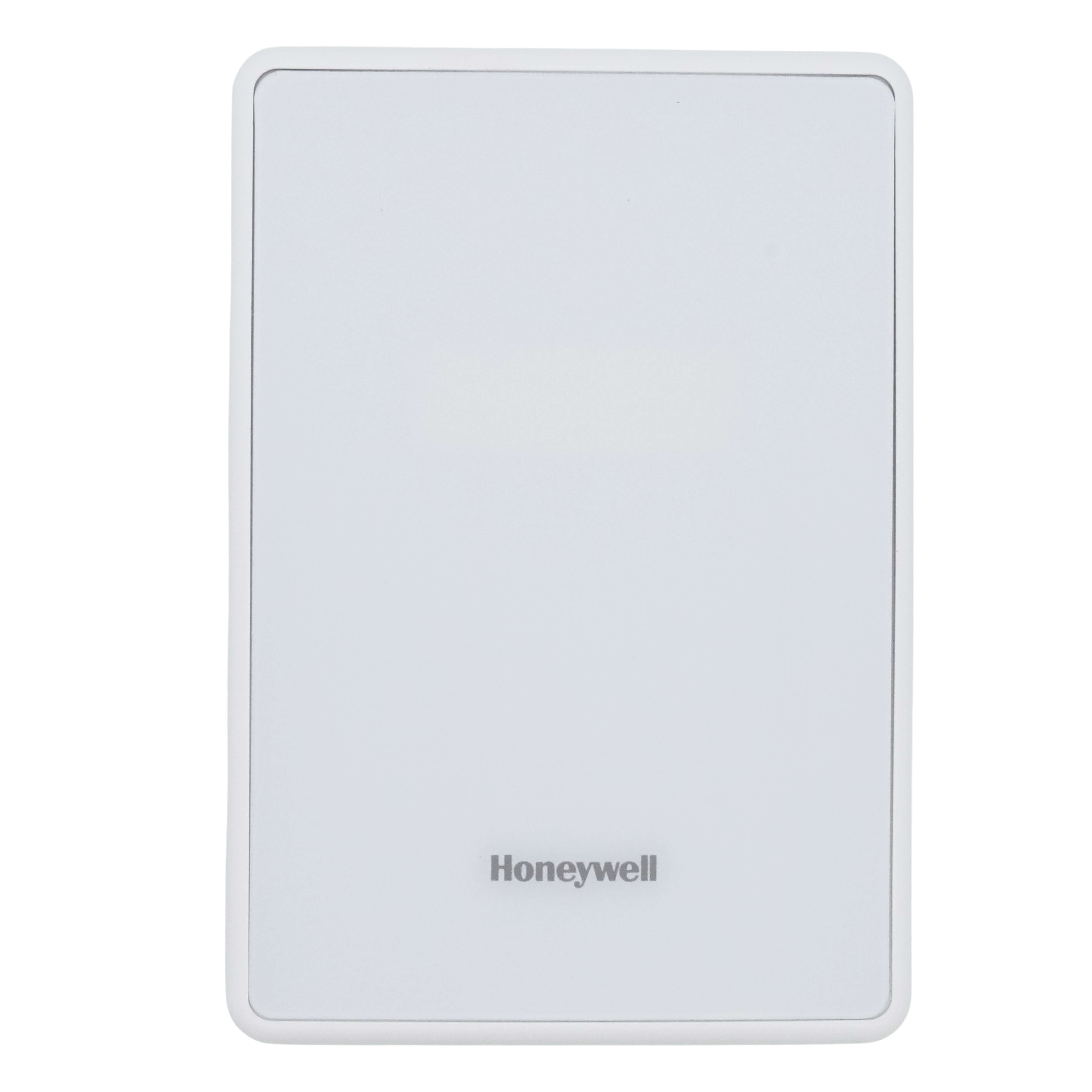

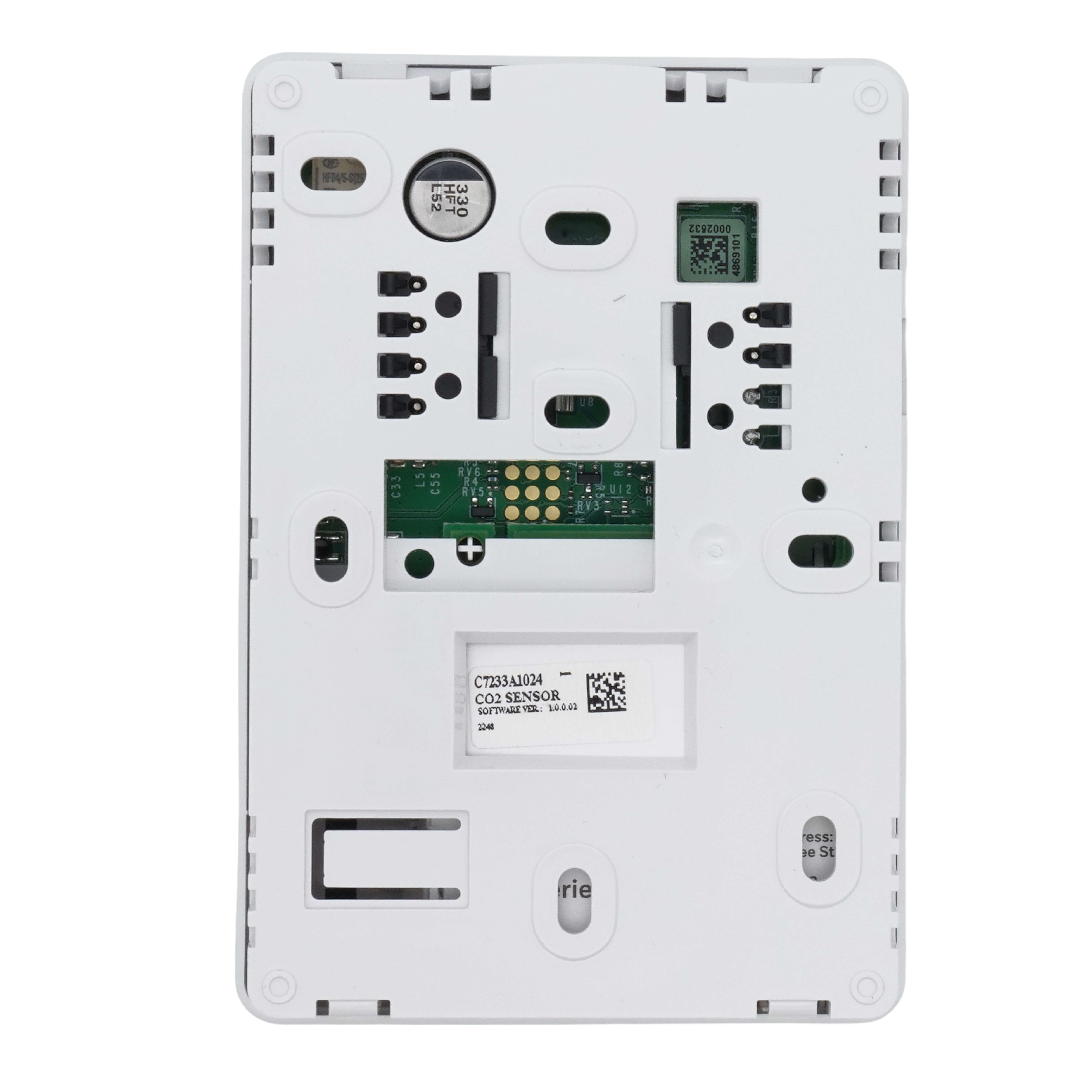

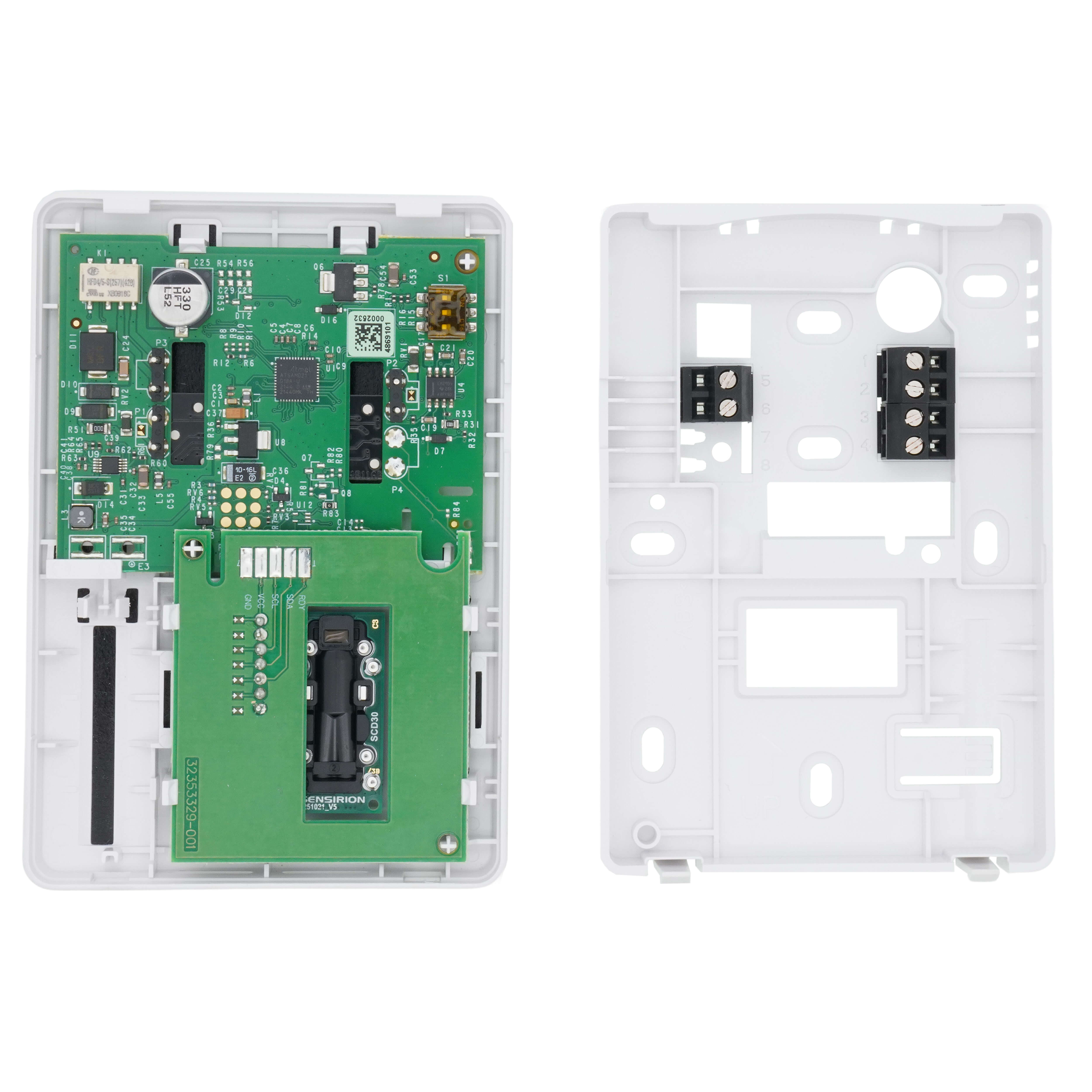

Honeywell C7233A1024 Room CO2 Sensor 24V (Wall Mount) Replacement MPN

Product Description

The Honeywell C7233A1024 is a room CO2 sensor designed for continuous monitoring of carbon dioxide levels in various settings. This sensor operates using a non-dispersive infrared technology that ensures accuracy and reliability over time. It is easy to install and suitable for wall mounting, making it ideal for HVAC applications.

• Selectable output voltage options: 0 to 2-10 VDC or 4 to 20 mA.
• Equipped with an LCD display for clear visibility of CO2 levels.
• Includes a relay output that activates when CO2 exceeds predetermined thresholds.

Product Highlights

The C7233A1024 supports effective demand-controlled ventilation, enhancing indoor air quality and energy efficiency.

Product Information

Standard Information

• Brand: Honeywell
• Model Number: C7233A1024
• Power Supply: 24 VAC/DC
• Mounting Type: Wall Mount
• Enclosure Type: Plastic

Technical Specifications

• Output Voltage Signal Range: 0 to 2-10 V / 4 to 20 mA
• Response Time: Less than 20 seconds
• Temperature Range: 32°F to 122°F
• Relative Humidity Range: 0% to 95% non-condensing
• Weight: 0.15 pounds
• Sensor Type: Non-dispersive infrared (NDIR)
• Relay Configuration: Normally Open SPST
• Calibration: Automatic background self-calibration algorithm
