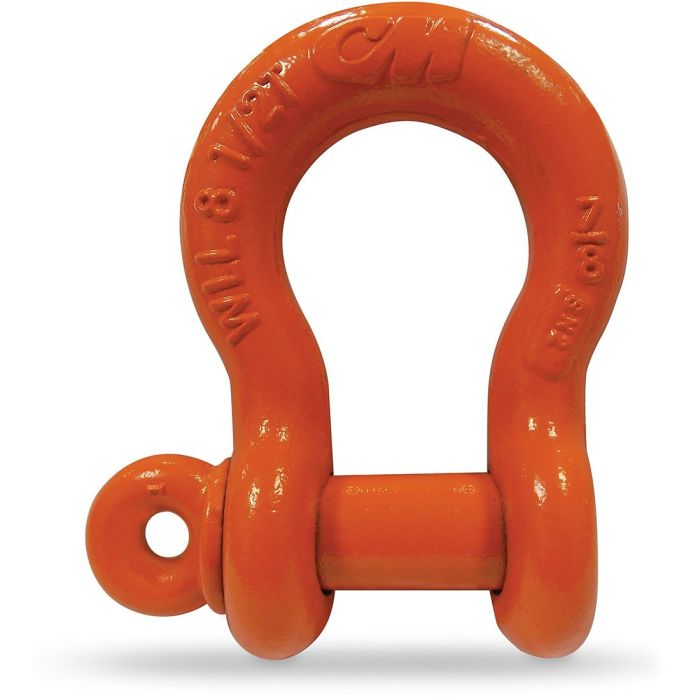

CM Columbus McKinnon M685P Screw Pin Anchor Shackle

Product Description

The CM Columbus McKinnon M685P is a screw pin anchor shackle made from micro alloy steel. This product features an alloy steel pin and is designed to handle side loading or multiple connections. The body of the shackle comes with permanent markings that indicate the working load limit and traceability codes.

• Manufactured from micro alloy steel for optimal hardness
• Alloy quenched and tempered pins for added durability
• Meets performance requirements of RR-C-271

Product Highlights

This shackle provides strength and safety for various lifting applications.

Product Information

Standard Information

• Brand: CM Columbus McKinnon
• MPN: M685P

Technical Specifications

• Size (Shackle Body Thickness): 1-5/8 inches
• Throat Opening (Width Between Ears): 2.66 inches
• Throat Depth: 6.13 inches
• Pin Size: 1.75 inches
• Pin Type: Screw Pin
• Finish: Powder Coated
• Material: Micro Alloy Steel Body & Alloy Steel Pin
• Working Load Limit: 24.00 tons (48,000 lbs)
• Design Factor: 6:1
• Standards & Certifications: ASME B30.26, ANSI B18, EN 13889, & ISO 2415
