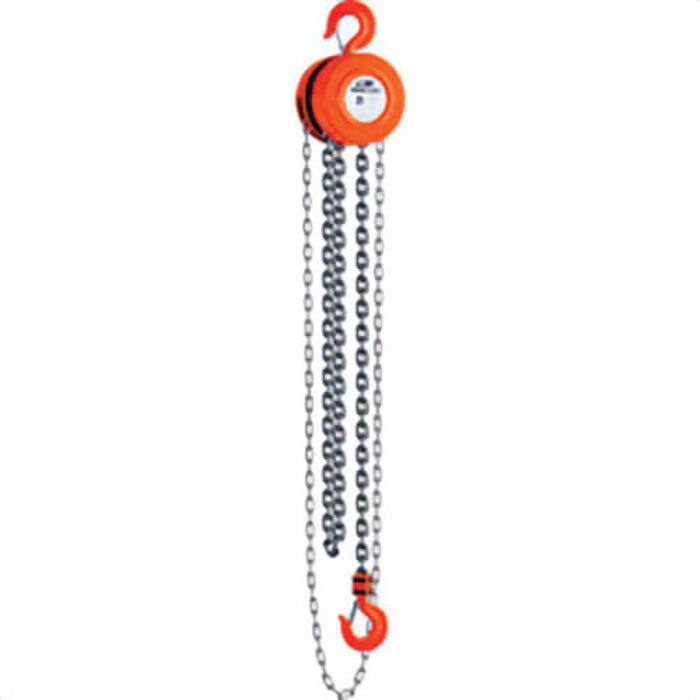

CM Columbus McKinnon 2213A Hand Chain Hoist

Product Description

The CM Columbus McKinnon 2213A Hand Chain Hoist is suitable for various lifting tasks. It features a robust steel frame with load-bearing components that are heat-treated for enhanced durability. This hand chain hoist employs a round-type construction that ensures stability during use.

• Includes forged hooks that swivel 360 degrees and are equipped with safety latches.
• Incorporates a Weston-type load brake for secure operation.
• Designed to lift loads with a hand chain mechanism.

Product Highlights

Ideal for both industrial and construction settings, this hoist handles a load capacity of two tons and is effective for lifting heights up to fifteen feet.

Product Information

Standard Information

• Brand: CM Columbus McKinnon
• Manufacturer Part Number: 2213A

Technical Specifications

• Series: 622
• Type: Hand Hoist
• Load Capacity: 2 ton
• Lifting Height: 15 ft
• Minimum Between Hooks: 18-1/8 in
• Hook Opening: 1-1/4 in
• Pull to Lift Rated Load: 82 lb
• Headroom: 13.66 in
• Clearance Dimension A: 7 in
• Clearance Dimension B: 5.5 in
• Clearance Dimension C: 1.3 in
• Clearance Dimension D: 7 in
• Chain Pull to Lift Rated Load: 103 lb
• Brake Type: Weston
• Overall Dimensions: 8-5/16 in L x 6-5/8 in W x 8-5/16 in D
