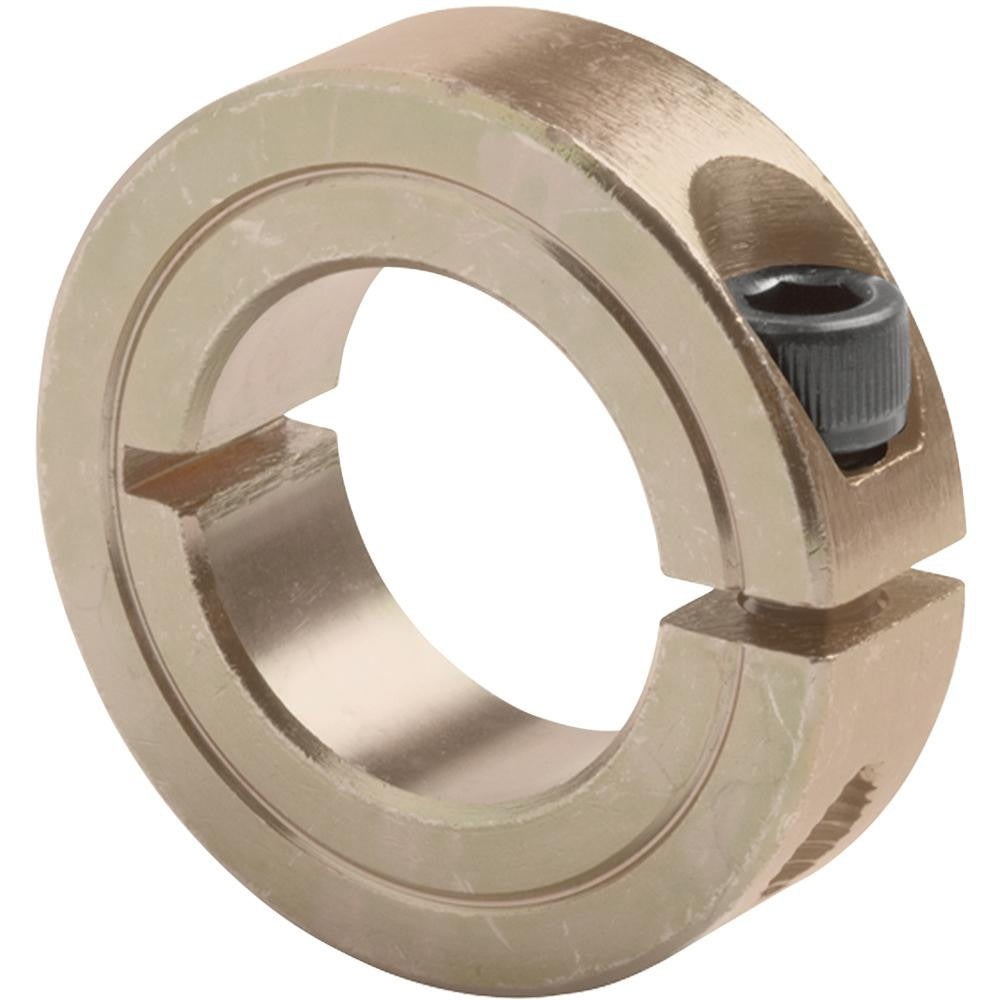

Climax Metal Products Mod CR1C-037 Split Shaft Collar

Product Description

The CLIMAX METAL PRODUCTS MOD CR1C-037 is a one-piece split shaft collar designed to secure, position, and locate rotating shafts in mechanical assemblies. It features a plain bore diameter of 0.375 inches and an outside diameter of 0.875 inches, making it suited for compact shaft applications. Constructed from 1215 steel with a yellow zinc finish, this collar offers corrosion resistance and reliable clamping performance. The split design allows installation and removal without disassembling adjacent components, reducing downtime during maintenance. Width measures 0.343 inches. This part is handled by millwrights, maintenance technicians, and mechanical assemblers working on power transmission and rotating equipment.

The MOD CR1C-037 is used in a range of light-duty mechanical systems where precise shaft positioning is required. Typical applications include conveyor systems, motor shafts, pump shafts, and general power transmission assemblies in both industrial and commercial settings. The one-piece split collar design is a common choice when frequent repositioning or easy removal is needed without full shaft disassembly. Its compact dimensions suit applications with tight clearance requirements around the shaft diameter.

Key Features

• One-piece split shaft design allows installation and removal without shaft disassembly
• Plain bore at 0.375 inches accommodates standard shaft diameters
• 1215 steel construction provides strength and machinability
• Yellow zinc finish adds corrosion resistance for extended service life
• Compact outside diameter of 0.875 inches suits tight-clearance assemblies
• Manufactured to ISO 9001:2008 standards for consistent quality

Compatibility

Designed as an OEM-style replacement or direct-fit shaft collar for mechanical assemblies using a 0.375-inch diameter shaft with a plain bore configuration.

Installation Notes

Installation should be performed by a qualified millwright or mechanical technician. De-energize and lock out all power to the equipment before working on any rotating shaft assembly in accordance with applicable OSHA lockout/tagout procedures. Position the collar at the desired location on the shaft, align the split, and tighten the clamping fastener evenly. Avoid over-tightening, which can distort the collar bore or damage the shaft surface.
