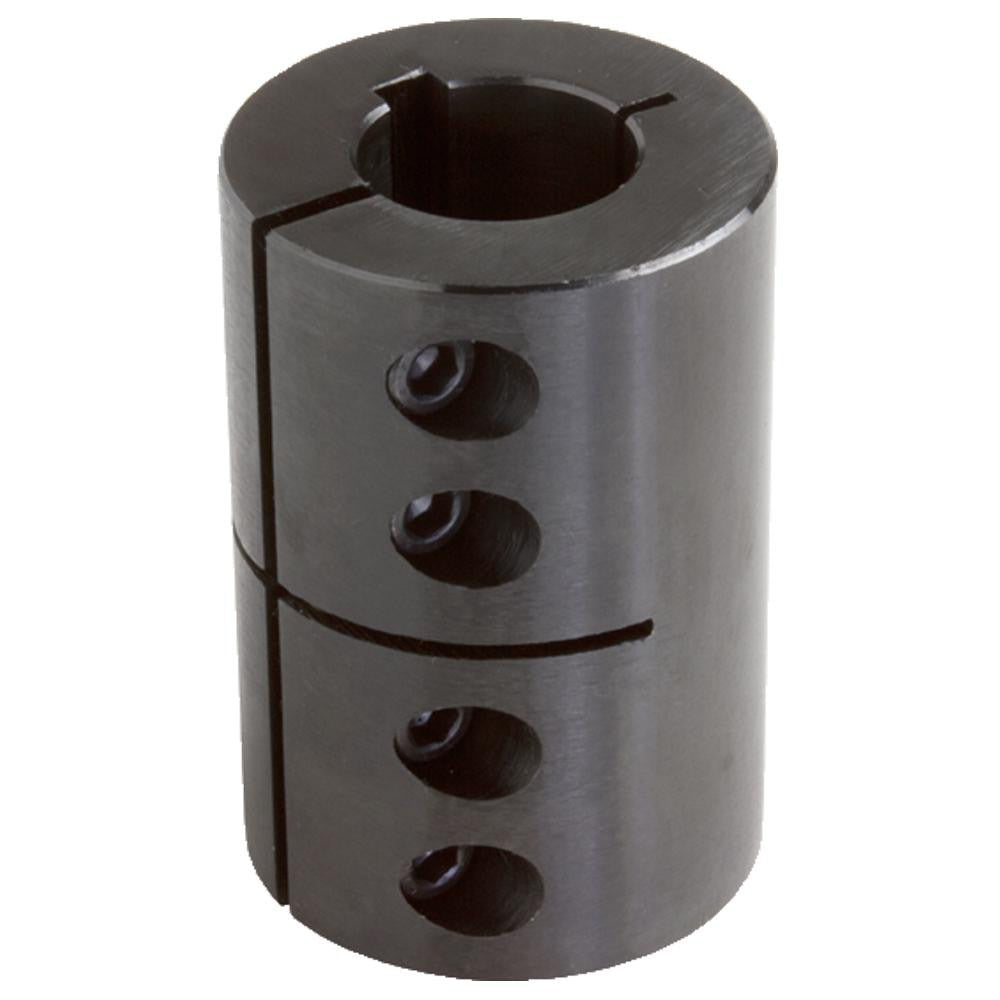

Climax Metal Products CC-100-100-KW Rigid Coupling Keyway

Product Description

The CLIMAX METAL PRODUCTS CC-100-100-KW is a rigid shaft coupling designed to connect two shafts end-to-end with no slip and no flex. It features a 1-inch bore, a 2-inch outside diameter, and a 3-inch length. A 1/4-inch wide by 1/8-inch deep keyway is machined into the bore, allowing positive torque transfer via a standard key. Constructed from steel, this coupling is built for demanding mechanical power-transmission applications where shaft alignment is controlled externally. Installation and service are typically performed by millwrights, industrial maintenance technicians, or mechanical contractors.

The CC-100-100-KW is suited for use in industrial and commercial machinery where two co-linear shafts must be joined rigidly. Typical applications include conveyor drives, pump shafts, fan assemblies, and general power-transmission equipment. The keyway configuration makes it well matched for driven equipment with keyed shaft ends. This coupling is part of the CLIMAX METAL PRODUCTS CC Series and is sold individually.

Key Features

• 1-inch bore accommodates standard 1-inch diameter shafts
• Machined keyway - 1/4 inch wide by 1/8 inch deep - for positive torque locking via key
• 2-inch outside diameter with 3-inch coupling length for solid shaft engagement
• Steel construction for high-load, high-torque mechanical environments
• Rigid design eliminates shaft slip and angular deflection between joined shafts
• CC Series part - engineered to CLIMAX METAL PRODUCTS dimensional standards

Compatibility

Designed as an OEM-style rigid coupling for industrial power-transmission systems requiring a 1-inch bore with a 1/4-inch by 1/8-inch keyway on co-linear keyed shafts.

Installation Notes

De-energize all connected equipment and lock out or tag out power sources before installing or removing shaft couplings. Ensure both shafts are properly aligned before tightening set screws or fasteners, as rigid couplings do not compensate for angular or parallel misalignment. A standard key sized to the 1/4-inch by 1/8-inch keyway slot must be sourced separately and fitted during assembly. Follow applicable machinery safety standards and the equipment manufacturer's assembly guidelines during installation.
