Climax Metal Products C733M-14 Shaft Locking Device 14mm

Product Description

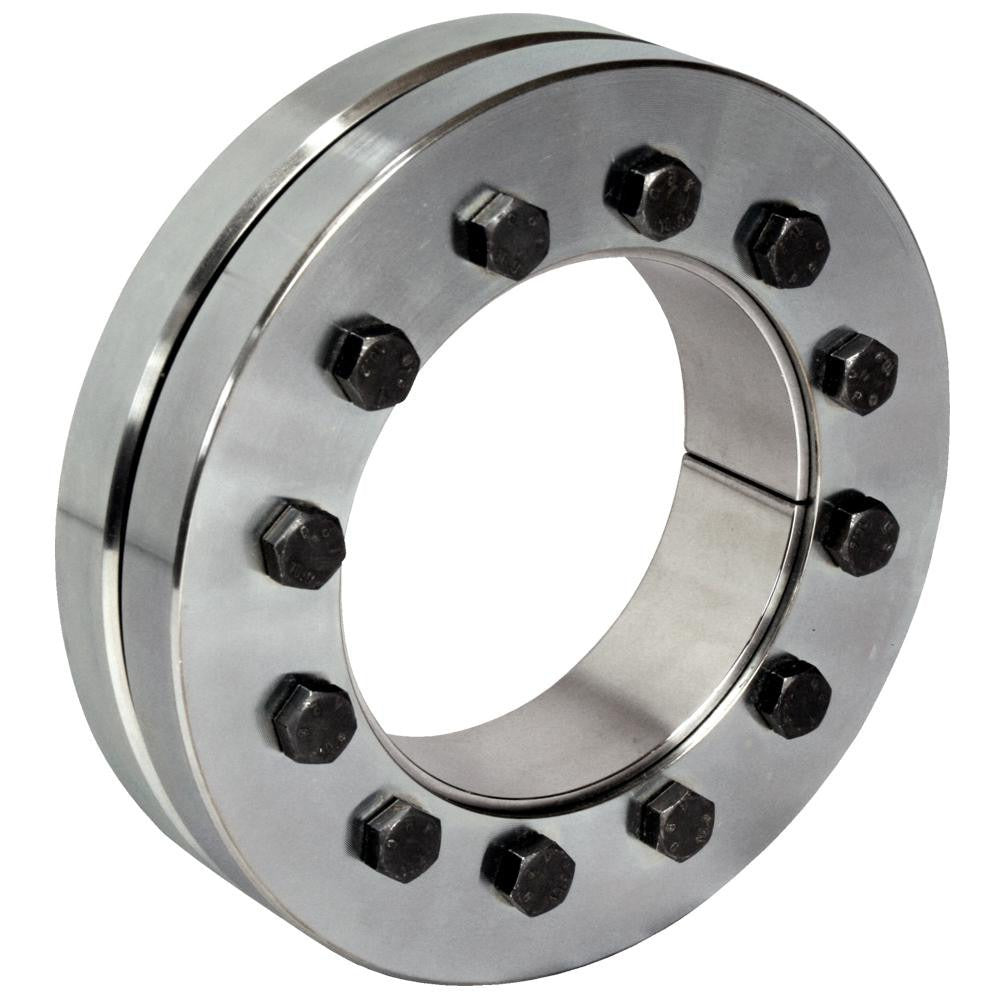

The CLIMAX METAL PRODUCTS C733M-14 is a shaft locking device designed to secure rotating shafts against axial movement in mechanical assemblies. It features a 14mm bore diameter and a 1-1/2 inch outer diameter, secured by three M5 clamping screws that distribute load evenly around the shaft. The device delivers an axial load capacity of 2,396 pounds, making it suitable for moderate-to-heavy duty shaft retention tasks. With an overall width of 1-1/2 inches and a thrust ring width of 0.394 inches, the C733M-14 provides a compact but robust locking solution. Installation and adjustment require no special tooling beyond a standard hex key set. Mechanical technicians and millwrights are the primary installers of this type of hardware.

The C733M-14 is intended for use in industrial and mechanical power transmission applications where axial shaft positioning must be maintained under load. It fits 14mm diameter shafts and is commonly installed on conveyor drives, gearbox output shafts, pump shafts, and similar rotating equipment in both light industrial and commercial settings. The M5 thread size on the clamping screws allows fine torque control during installation. A maximum tightening torque of 55 ft/lb applies to the clamping screws.

Key Features

• 14mm bore diameter for precise shaft fitment
• 2,396 lb axial load capacity for reliable shaft retention under load
• Three M5 clamping screws for even load distribution
• 1-1/2 inch outer diameter with a compact 1-1/2 inch overall width
• 0.394 inch thrust ring width for a low-profile axial footprint
• 55 ft/lb maximum screw torque rating for controlled installation

Compatibility

Designed as an OEM-style shaft locking device for use on 14mm diameter shafts in mechanical power transmission assemblies where axial load retention is required.

Installation Notes

Installation is performed by qualified mechanical technicians or millwrights. Ensure all driven equipment is de-energized and locked out before installing or adjusting the locking device. Clean the shaft surface and bore of any oil, debris, or burrs before seating the device. Tighten the M5 clamping screws evenly in a cross pattern and do not exceed the rated 55 ft/lb maximum torque to avoid thread damage or distortion of the locking ring.
