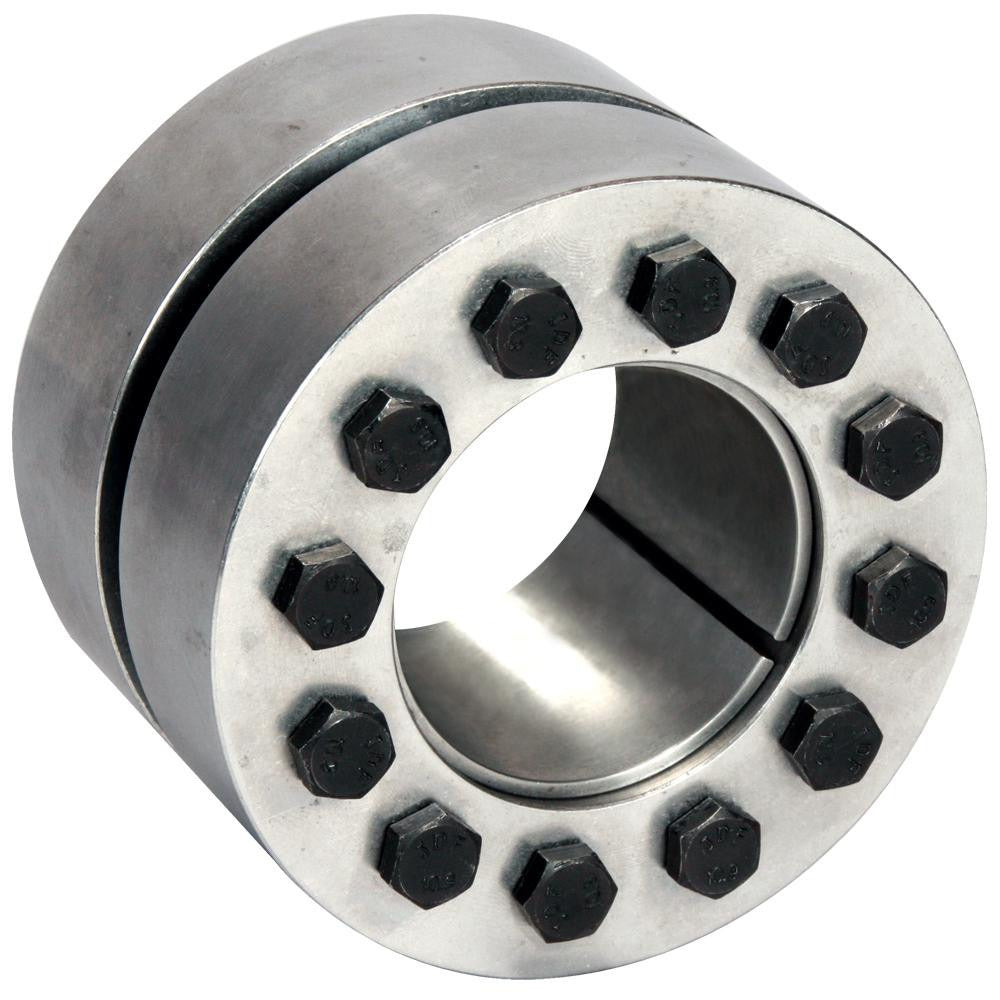

Climax Metal Products C600E-106 Shaft Locking Device

Product Description

The CLIMAX METAL PRODUCTS C600E-106 is a shaft locking device designed to secure rotating shafts against axial and rotational movement in power transmission assemblies. With a 1-1/16 inch bore diameter and a 66mm outer diameter, this locking collar fits mid-range shaft applications across industrial and mechanical systems. Seven M6 fastening screws distribute clamping force evenly around the shaft, supporting a maximum axial load of 14,953 pounds and a maximum torque rating of 662 ft/lb. At 2.598 inches overall width and a thrust ring width of 1.496 inches, it delivers a compact yet high-capacity locking solution. Mechanical technicians and millwrights are the primary installers.

This shaft locking device is suited for use in industrial drive systems, conveyor assemblies, pump shaft retention, and gearbox applications where positive shaft locking is required. It is appropriate for both new equipment builds and retrofit installations where a reliable, screw-type collar is needed to handle high axial and torque loads on mid-diameter shafts. The M6 thread size on the locking screws makes tooling straightforward in most shop and field environments.

Key Features

• 1-1/16 inch bore diameter for direct shaft engagement on mid-range shafts
• 66mm outer diameter with a compact 2.598 inch overall width
• Seven M6 locking screws for even clamping force distribution
• 14,953 pound rated axial load capacity for heavy-duty retention
• 662 ft/lb maximum torque rating
• Thrust ring width of 1.496 inches provides stable axial load transfer

Compatibility

Designed as an OEM-style shaft locking device for industrial power transmission applications requiring a 1-1/16 inch bore and 66mm outer diameter collar with M6 thread fasteners.

Installation Notes

Installation is typically performed by millwrights or mechanical technicians. Disengage and lock out all power to rotating equipment before beginning shaft work. Ensure the shaft and bore surfaces are clean and free of debris before seating the collar. Tighten all seven locking screws in a star pattern to achieve even clamping force, following the fastener manufacturer torque specifications for M6 hardware.
