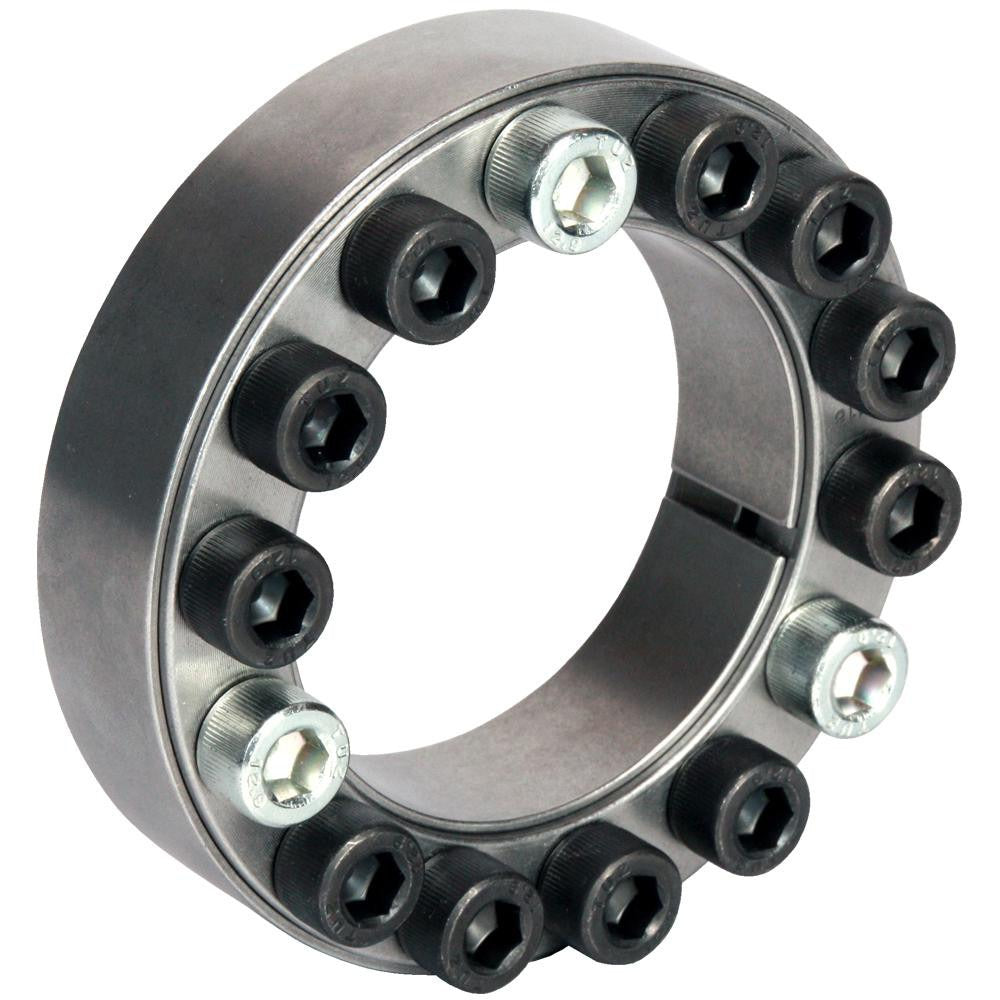

Climax Metal Products C200M-35X60 Shaft Locking Device

Product Description

The CLIMAX METAL PRODUCTS C200M-35X60 is a shaft locking device from the C200 series, designed to create a secure, high-torque connection between a shaft and a hub or mating component. It features a 35mm bore diameter, 60mm outer diameter, and M6 thread fasteners. With 12 clamping screws, this device delivers a rated axial load capacity of 10,703 pounds and a maximum torque rating of 614 ft/lb. The overall assembly width measures 2.362 inches, with a thrust ring width of 0.669 inches. This type of mechanical locking device eliminates the need for keys, keyways, or set screws, providing a concentric and repeatable shaft-to-hub connection suitable for demanding power transmission applications.

The C200M-35X60 is suited for use in industrial machinery, conveyor systems, gearbox assemblies, and rotating power transmission equipment where a rigid, backlash-free shaft connection is required. It is typically installed by millwrights, mechanical technicians, and industrial maintenance professionals working on rotating equipment in manufacturing and processing environments. The M6 thread size and metric bore dimensions make this device well matched to metric-dimensioned shafts and hubs commonly found in European-spec and globally sourced equipment.

Key Features

• 35mm bore diameter and 60mm outer diameter for metric shaft and hub fitment
• M6 thread screws provide consistent clamping force distribution across 12 fastener positions
• Rated axial load capacity of 10,703 pounds for heavy-duty power transmission
• Maximum torque rating of 614 ft/lb supports high-load rotating applications
• Thrust ring width of 0.669 inches for compact axial footprint
• Keyless locking design eliminates need for keyways, set screws, or interference fits

Compatibility

Designed as an OEM-style shaft locking device for metric shafts with a 35mm diameter and hubs with a 60mm bore, compatible with applications requiring M6 thread clamping hardware in the C200 series configuration.

Installation Notes

Installation should be performed by a qualified millwright or mechanical technician. Degrease the shaft and hub bore thoroughly before assembly, as surface contamination will reduce clamping effectiveness. Tighten the M6 screws incrementally in a star pattern to achieve even clamping force - refer to the manufacturer torque specification table for final fastener values. Disconnect and lock out all power sources before installing or removing the locking device from any rotating assembly.
