Climax Metal Products C192M-34X60.5 Shaft Locking Device

Product Description

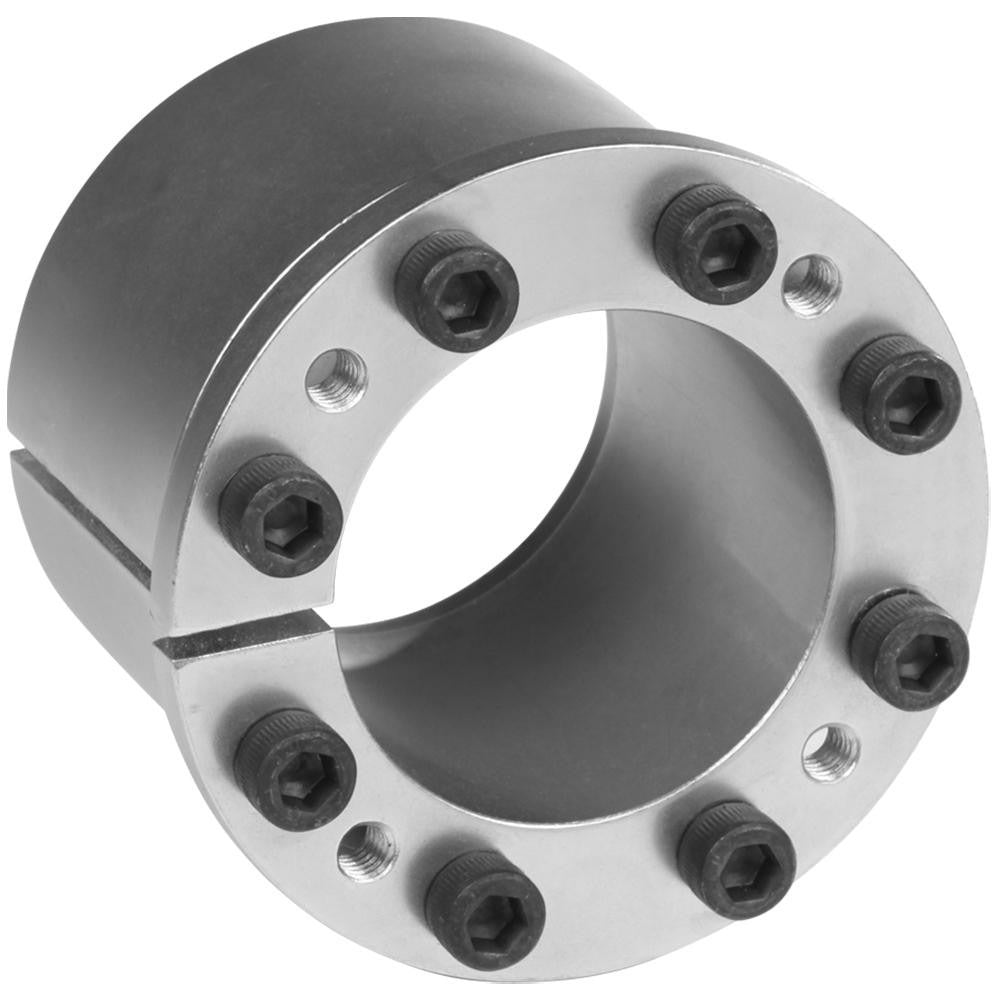

The CLIMAX METAL PRODUCTS C192M-34X60.5 is a shaft locking device designed to secure rotating shafts to hubs, sprockets, pulleys, or similar power transmission components without the need for keyways or splines. It features a 34mm bore diameter and a 60.5mm outer diameter, making it suited for medium-duty industrial shaft-to-hub connections. The device uses 8 clamping screws to generate uniform radial and axial clamping force, achieving a maximum torque capacity of 7,320 ft/lb. Overall assembly width is 1.5 inches. Licensed millwrights, maintenance mechanics, and industrial technicians typically install this type of locking device on rotating machinery in manufacturing, conveying, and drive train applications.

This shaft locking device is used in industrial power transmission systems where a positive, zero-backlash connection between shaft and hub is required. It is well suited for applications involving frequent repositioning or where keyway machining is impractical. Typical installation scenarios include gearbox output shafts, conveyor head pulleys, and pump drive shafts in both light-industrial and heavy-duty production environments.

Key Features

• 34mm bore diameter for direct shaft engagement without keyway machining
• 60.5mm outer diameter fits standard hub bores in power transmission components
• 8-screw clamping pattern distributes clamping load evenly around the shaft
• 7,320 ft/lb maximum torque rating for medium-to-heavy-duty drive applications
• 1.5-inch overall assembly width suits compact shaft-hub arrangements

Compatibility

Designed as an OEM-style locking device for industrial power transmission shafts with a 34mm diameter, compatible with hubs and bores accepting a 60.5mm OD locking collar.

Installation Notes

Installation is typically performed by a licensed millwright or qualified maintenance mechanic. De-energize and lock out all drive equipment per OSHA lockout/tagout procedures before mounting or removing the locking device. Tighten clamping screws in a star pattern using a calibrated torque wrench to the screw manufacturer's specified value, working in incremental passes to ensure even clamping force. Do not exceed the rated maximum torque capacity of the assembly.
