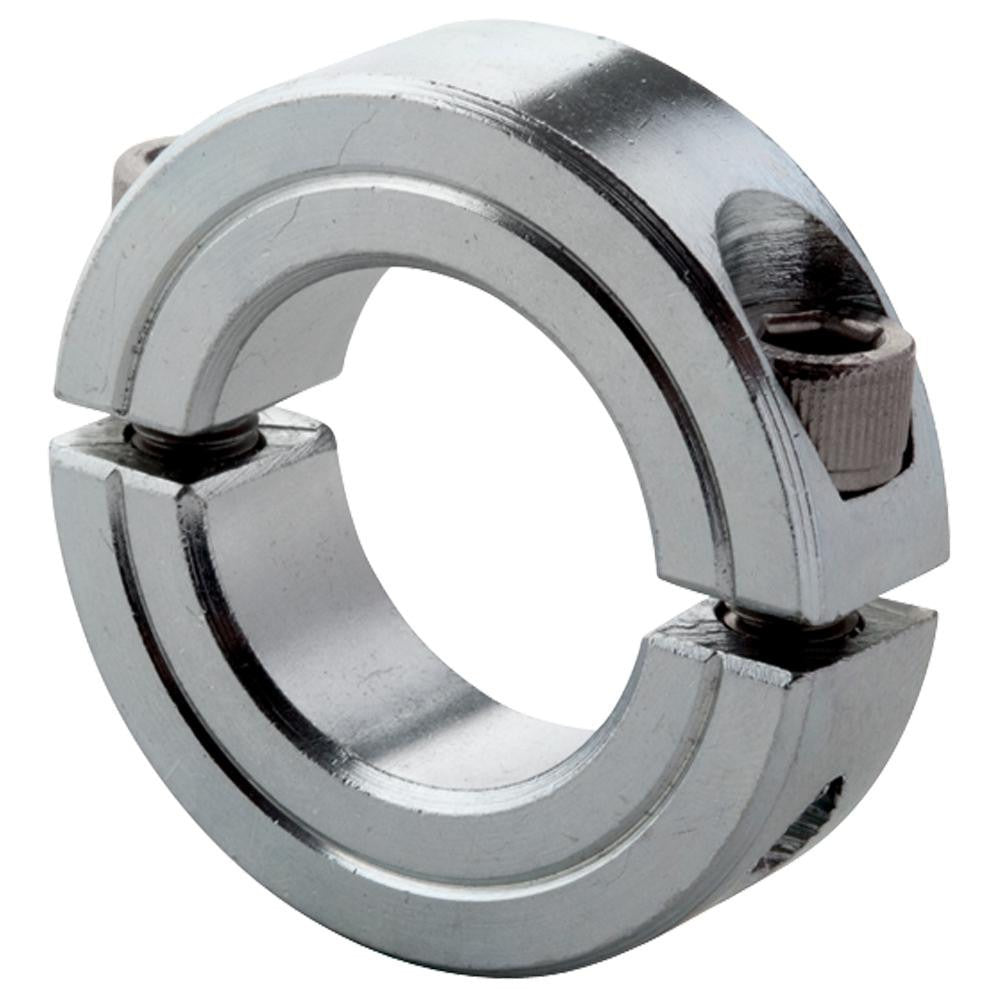

Climax Metal Products 2C-175-Z Clamp Shaft Collar

Product Description

The CLIMAX METAL PRODUCTS 2C-175-Z is a two-piece clamp-style shaft collar machined from steel with a zinc finish. It is designed to locate, space, or retain components on a rotating or stationary shaft. The collar accepts a 1.75-inch plain bore and measures 2.75 inches in outside diameter and 0.6875 inches wide. Two-piece construction allows installation and removal without disassembling adjacent components, making it a preferred choice for maintenance-intensive applications. Machinists, millwrights, and mechanical technicians install this type of collar across a wide range of industrial and mechanical drive systems.

This collar is suited for use in light to medium-duty shaft applications including conveyor drives, pump assemblies, fan shafts, and general power transmission equipment. The clamp-style design distributes clamping force evenly around the shaft bore, reducing the risk of shaft damage compared to set-screw styles. The zinc finish provides basic corrosion resistance for standard indoor or sheltered environments. It is manufactured under ISO 9001:2008 quality standards.

Key Features

• Two-piece clamp construction allows installation without full shaft disassembly
• Plain bore at 1.75 inches fits standard shaft sizes without keyway modification
• 2.75-inch outside diameter and 0.6875-inch width for precise axial positioning
• Steel base material with zinc finish for durability and basic corrosion resistance
• Manufactured to ISO 9001:2008 quality standards
• Lightweight at 0.6875 pounds, suitable for weight-sensitive assemblies

Compatibility

Designed as an OEM-style replacement or direct-fit shaft collar for mechanical drive assemblies requiring a 1.75-inch bore, two-piece clamp-style collar in the 2C series.

Installation Notes

Installation should be performed by a qualified millwright or mechanical technician. Disengage and lock out all power sources before working on any rotating shaft assembly per OSHA lockout/tagout procedures. Clean the shaft surface of debris, oil, and burrs before seating the collar to ensure consistent clamping force. Do not exceed the manufacturer-rated torque for the clamping hardware; consult the fastener specification for proper tightening sequence on two-piece collars.
