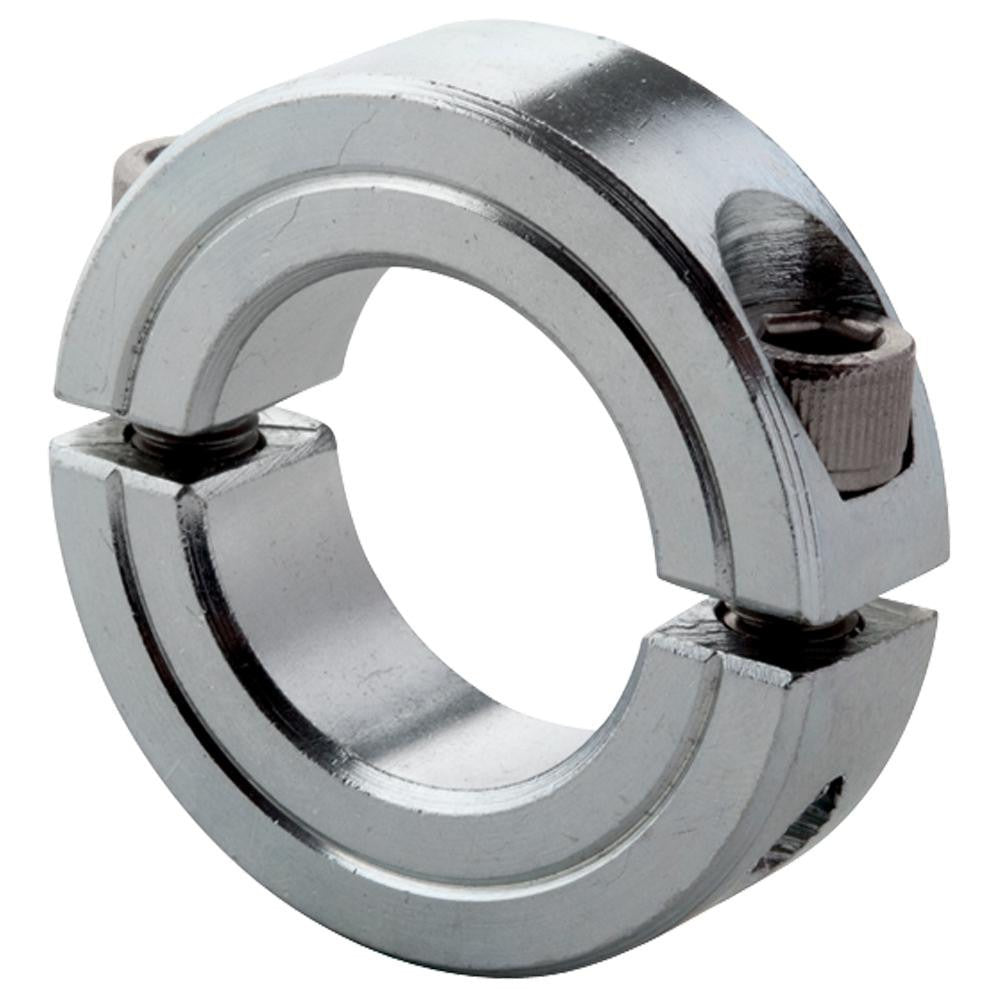

Climax Metal Products 2C-100-Z Clamp Shaft Collar

Product Description

The CLIMAX METAL PRODUCTS 2C-100-Z is a two-piece clamp-style shaft collar engineered for positive shaft positioning and locking in rotating equipment applications. It features a plain bore diameter of 1 inch and an outside diameter of 1.75 inches, with a width of 0.5 inches. Constructed from steel with a zinc finish, it resists corrosion in typical industrial and mechanical service environments. The two-piece clamp design allows installation and removal without disassembling adjacent components, making it a practical choice for maintenance-heavy applications. Installation is handled by mechanical technicians, millwrights, and HVAC or pump system service professionals.

This shaft collar is suited for use in motors, pumps, fans, conveyors, and other rotating shaft assemblies found in both residential and commercial mechanical systems. The clamp-style design secures to the shaft using fastener clamping force rather than a setscrew, distributing load more evenly and reducing the risk of shaft marring. It is appropriate wherever a positive stop, spacer, or bearing face is needed along a 1-inch diameter shaft.

Key Features

• Two-piece clamp design allows on-shaft installation without full disassembly
• Plain bore at 1 inch diameter fits standard 1-inch shafts
• 1.75-inch outside diameter and 0.5-inch width for compact axial footprint
• Steel construction with zinc finish for corrosion resistance
• Manufactured under ISO 9001:2008 quality standards

Compatibility

Designed as an OEM-style replacement or aftermarket component for rotating shaft assemblies requiring a 1-inch bore clamp-style collar in motor, pump, fan, and conveyor applications.

Installation Notes

Installation and removal should be performed by a qualified mechanical technician or millwright. De-energize and lock out all power to the equipment before working on any rotating shaft assembly per OSHA lockout/tagout procedures. Use the appropriate fastener torque as specified by the equipment manufacturer when tightening the clamp hardware. Ensure the shaft surface is clean and free of burrs before seating the collar.
