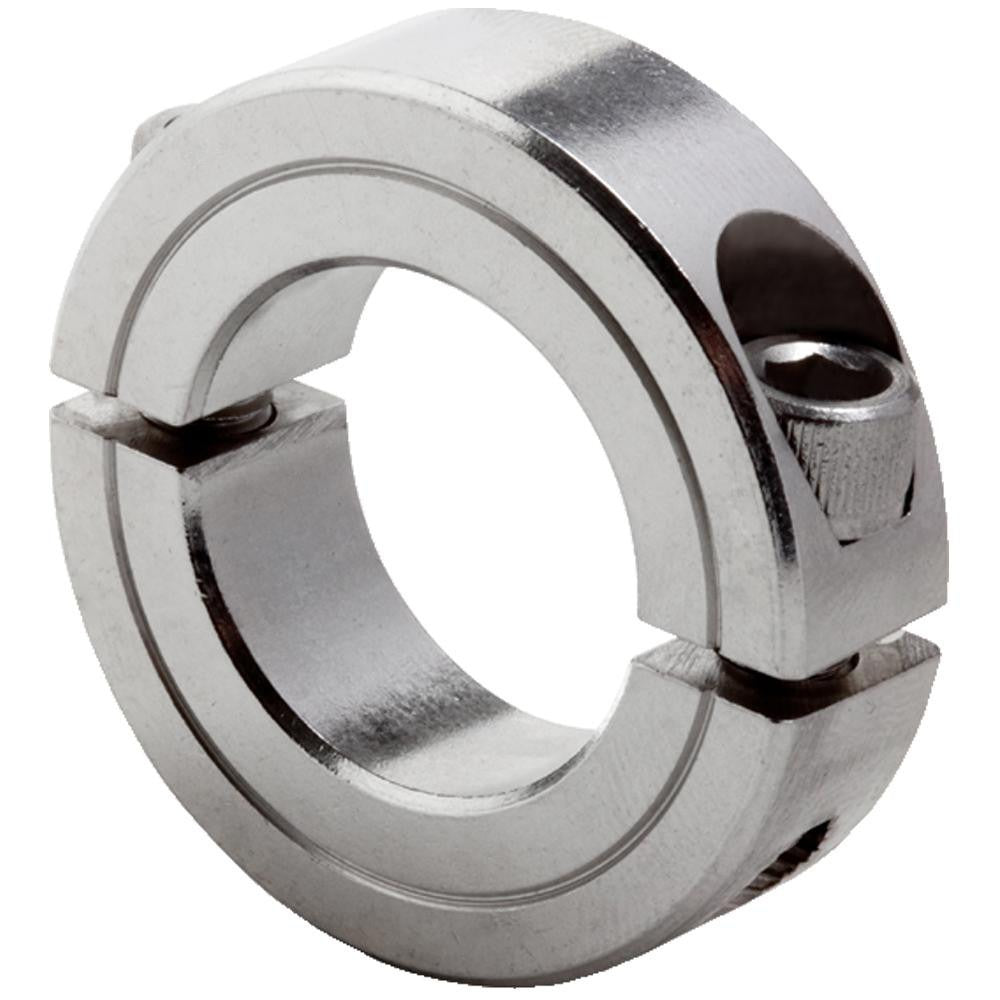

Climax Metal Products 2C-025-S Two Piece Shaft Collar

Product Description

The CLIMAX METAL PRODUCTS 2C-025-S is a two-piece shaft collar designed for mechanical power transmission and shaft positioning applications. Manufactured from 303 stainless steel with a plain bore and plain finish, this collar accepts a 0.25-inch bore diameter and measures 0.6875 inches in outside diameter with a width of 0.3125 inches. The two-piece construction allows the collar to be installed or removed at any point along a shaft without disassembling adjacent components, making it a practical choice for maintenance-intensive applications. This collar is produced under ISO 9001:2008 quality standards.

This shaft collar is suited for use in industrial, HVAC, and mechanical equipment where precise shaft positioning, thrust load management, or component retention is required. The stainless steel construction makes it appropriate for environments with moisture exposure or mild corrosive conditions. It is used by mechanical technicians and industrial maintenance professionals in conveyor systems, pump assemblies, motor shaft applications, and similar rotating equipment installations.

Key Features

• Two-piece design allows mid-shaft installation and removal without full shaft disassembly
• 303 stainless steel construction provides corrosion resistance in wet or humid environments
• Plain bore accepts a 0.25-inch diameter shaft with a clean fit
• Compact profile: 0.6875 inches outside diameter and 0.3125 inches wide
• Plain finish - no coating to flake or contaminate adjacent components
• Manufactured to ISO 9001:2008 quality standards

Compatibility

Designed as an OEM-style replacement or direct-fit shaft collar for mechanical assemblies requiring a 0.25-inch bore, two-piece style collar in the 2C series.

Installation Notes

Installation should be performed by a qualified mechanical technician with the shaft stationary and all related drive components de-energized and locked out per applicable LOTO procedures. Two-piece collars are secured with the provided fasteners - tighten both screws evenly to ensure uniform clamping force on the shaft. Inspect the shaft surface for burrs or damage before installation to ensure proper seating and holding strength.
