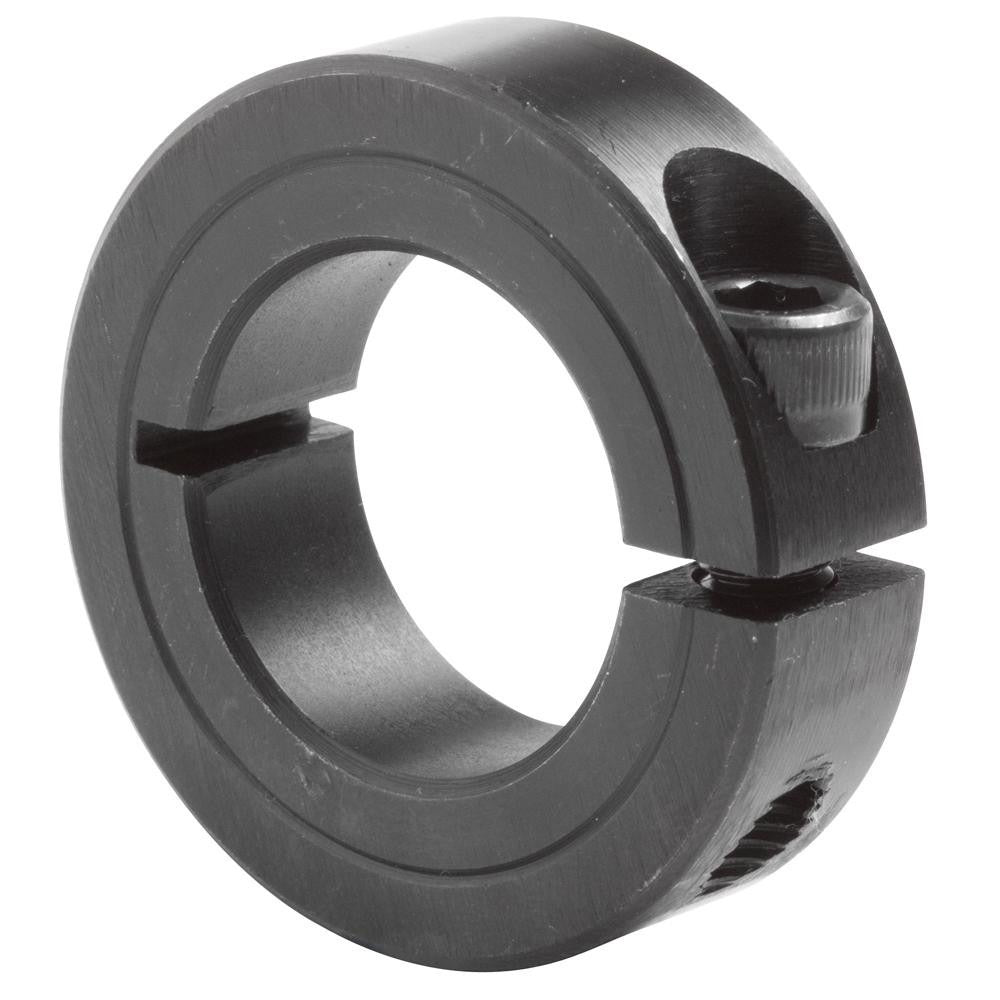

Climax Metal Products 1C-150 Clamp Shaft Collar

Product Description

The CLIMAX METAL PRODUCTS 1C-150 is a one-piece clamp-style shaft collar machined from steel with a black oxide finish. It features a plain bore diameter of 1.5 inches and an outside diameter of 2.375 inches, with a width of 0.5625 inches. Clamp-style collars secure to a shaft without set screws, distributing clamping force evenly around the bore to reduce shaft marring. This collar is suited for positioning, stopping, and spacing applications across mechanical power transmission assemblies. Machinists, maintenance technicians, and mechanical contractors are the typical installers.

The 1C-150 fits into a wide range of industrial and commercial mechanical systems where precise shaft positioning is required. Common applications include conveyor systems, pump shafts, motor assemblies, and general power transmission setups. The clamp design makes it practical in situations where shaft removal is limited or where frequent repositioning is needed. The black oxide finish provides mild corrosion resistance suitable for light-duty indoor and sheltered environments.

Key Features

• One-piece clamp-style design distributes clamping load evenly around the shaft bore
• Plain bore diameter of 1.5 inches for direct shaft fit
• Outside diameter of 2.375 inches with a width of 0.5625 inches
• Steel construction with black oxide finish for light corrosion resistance
• Manufactured to ISO 9001:2008 quality standards
• No set screws - reduces shaft damage compared to set-screw collar styles

Compatibility

Designed as an OEM-style replacement or direct-fit shaft collar for mechanical assemblies requiring a 1.5-inch bore plain clamp collar.

Installation Notes

Installation is performed by mechanical technicians or maintenance professionals familiar with power transmission components. Shut down and lock out all power to the equipment before installing or repositioning the collar. Use the manufacturer-specified fastener torque guidelines for the collar hardware when tightening the clamp bolt. Verify shaft surface condition and cleanliness before seating the collar to ensure consistent clamping force.
