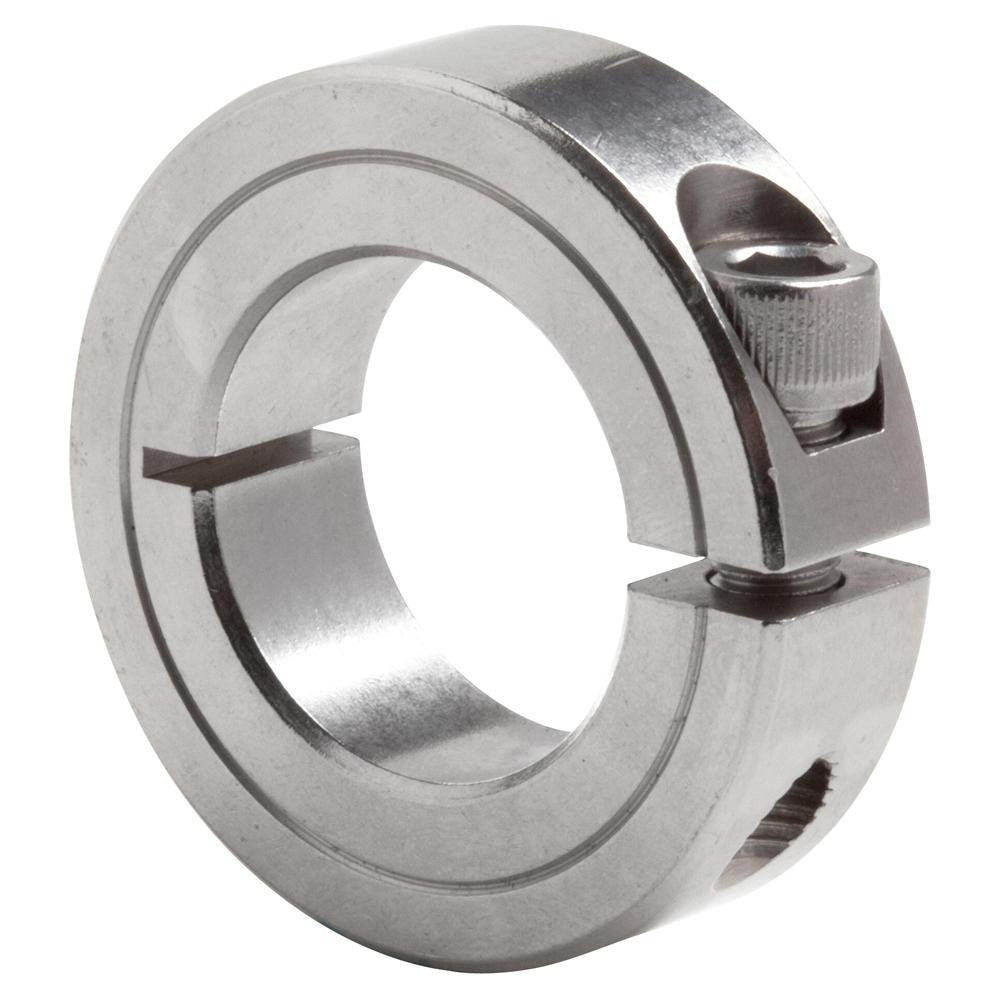

Climax Metal Products 1C-050-S Shaft Collar Clamp

Product Description

The CLIMAX METAL PRODUCTS 1C-050-S is a one-piece clamp-style shaft collar machined from 303 stainless steel with a plain finish. It features a 0.5-inch bore diameter and a 1.125-inch outside diameter, making it suited for securing components on rotating shafts in mechanical assemblies. The clamp design provides even clamping force around the shaft without marring the surface, a key advantage over set-screw collars in precision or corrosion-sensitive applications. Manufactured under ISO 9001:2008 quality standards, this collar is a reliable choice for engineers and maintenance technicians working on motion-control or power-transmission equipment.

This shaft collar is used in a range of industrial, HVAC, and mechanical applications where a 0.5-inch shaft requires a positive, repositionable stop or locating device. The 303 stainless steel construction makes it well suited for environments with moisture exposure, mild chemical contact, or sanitary requirements. At 0.406 inches wide, it fits into tight axial spaces while maintaining firm clamping grip. Typical applications include fan assemblies, conveyor systems, pump shafts, and general power-transmission machinery in both residential and light commercial settings.

Key Features

• One-piece clamp style distributes clamping force evenly without damaging shaft surfaces
• 0.5-inch plain bore diameter with 1.125-inch outside diameter
• 303 stainless steel construction resists corrosion in wet or chemically active environments
• 0.406-inch width fits compact axial spacing requirements
• Manufactured to ISO 9001:2008 quality standards
• Plain finish, no coating to flake or interfere with fit

Compatibility

Designed as a clamp-style shaft collar for use on 0.5-inch diameter shafts in general mechanical and industrial power-transmission assemblies.

Installation Notes

Installation is typically performed by a mechanical technician or millwright using standard hex wrenches to tighten the clamp screw. Always de-energize and lock out the drive system before positioning or repositioning the collar on any rotating shaft. Ensure the shaft surface is clean and free of burrs before sliding the collar into position to achieve proper clamping. Do not overtighten the clamp fastener beyond the fastener manufacturer's specification.
