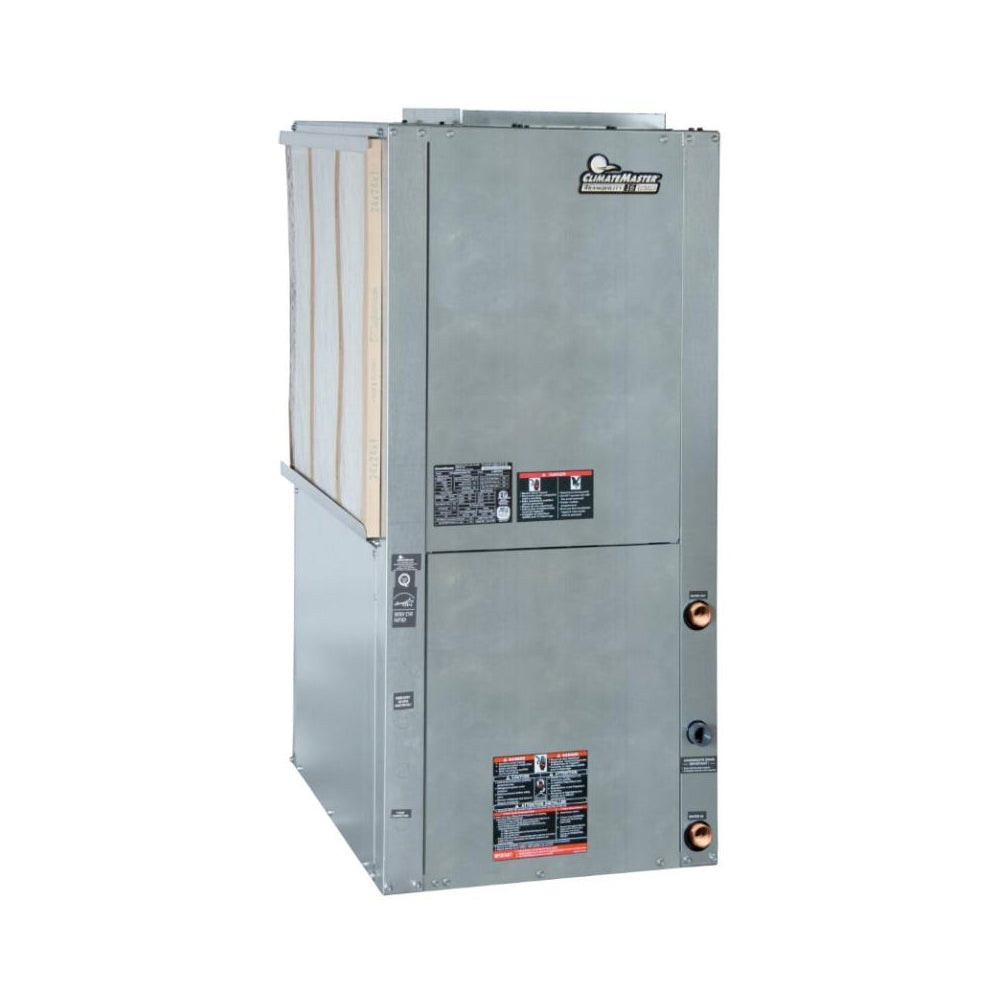

Climatemaster TCV036A-L 3 Ton 13.2 EER Cupronickel Vertical Geothermal Water Source Heat Pump (Left-Hand)

Product Description

The ClimateMaster TCV036A-L is a Tranquility 16 Compact (TC) Series 3 ton water-source heat pump with high efficiency and application flexibility. It exceeds ASHRAE 90.1 efficiencies and uses EarthPure (HFC-410A) zero ozone depletion refrigerant. The compact cabinet fits into tight spaces and is designed to be backward compatible with older water-source heat pumps.

• EarthPure (HFC-410A) refrigerant
• Exceeds ASHRAE 90.1 efficiencies
• Galvanized steel construction

Product Highlights

Environmentally-friendly, compact, and efficient water-source heat pump with a cooling Btu of 34,500 and a heating Btu of 38,800.

Product Information

Standard Information

• Brand: CLIMATEMASTER
• Manufacturer Part Number: TCV036A-L

Technical Specifications

• Model Number (s): TCV036AGC30NPTS
• Brand: ClimateMaster
• Ton: 3.0 Ton
• Cooling Btu: 34,500
• Cooling Stage(s): 1
• Compressor Stage: Single
• Electrical Phase(s): 1-Phase
• Refrigerant Type: R-410A
• Heating Btu: 38,800
• Amp(s): 40
• Heating Stage(s): 1
• Height (Inches): 45
• Width (Inches): 21 1/2
• Depth (Inches): 26
