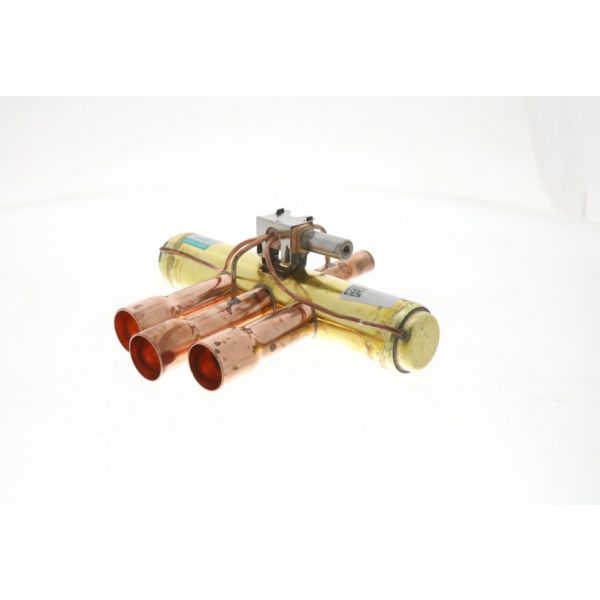

Climatemaster C69172601 Reversing Valve Without Coil

Product Description

The CLIMATEMASTER C69172601 is a reversing valve without coil, designed for use in heat pump refrigeration circuits. The reversing valve controls the direction of refrigerant flow, allowing the system to switch between heating and cooling modes. This component is installed in the refrigerant line set and works in conjunction with a separately sourced solenoid coil to complete the valve assembly. HVAC technicians replace this valve when the system fails to switch modes, when the valve sticks in heating or cooling position, or when internal bypass is confirmed through refrigerant circuit diagnostics.

This reversing valve is suited for residential and light commercial heat pump applications where mode-switching capability is required. It is installed within the refrigerant circuit and operates under system pressures typical of heat pump equipment. The absence of an included solenoid coil means the coil must be sourced separately and matched to the valve body before installation. This part is appropriate for service and replacement scenarios where the valve body itself has failed but the coil remains serviceable.

Key Features

• Controls refrigerant flow direction to enable both heating and cooling operation in heat pump systems
• Sold without solenoid coil, allowing coil reuse or independent coil selection
• Designed as a direct service replacement for heat pump reversing valve applications
• Compatible with standard refrigerant circuit configurations used in heat pump equipment

Compatibility

Designed as an OEM-style replacement reversing valve for heat pump systems. No specific model compatibility data was provided in the product input.

Installation Notes

Installation should be performed by a licensed HVAC technician holding an EPA Section 608 certification, as work involves a sealed refrigerant circuit. The system must be fully recovered of refrigerant before the valve is removed or installed. The solenoid coil must be matched and installed separately before system recharge and startup. Verify valve orientation and refrigerant flow direction markings before brazing the valve body into the line set.

Technical Specifications

• Coil Included: No
• Valve Type: Reversing Valve

Standard Information

• Brand: CLIMATEMASTER
• Manufacturer Part Number: C69172601
